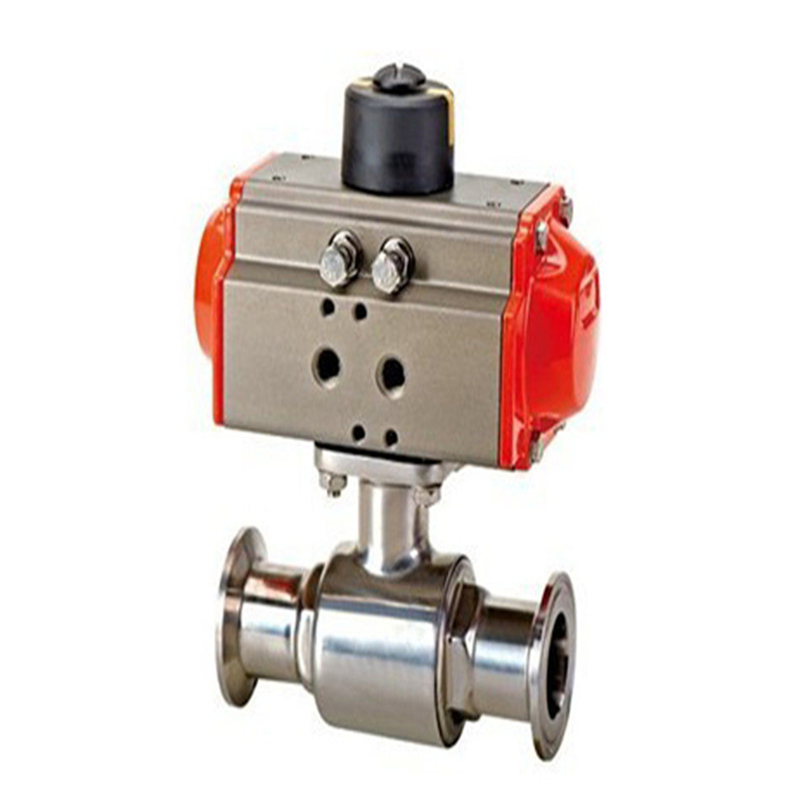

Stainless Steel Sanitary Two-Piece Clamp Ball Valve with Aluminum Pneumatic Actuator
I. Product Overview
The Stainless Steel Sanitary Two-Piece Pneumatic Clamp-Type Ball Valve (with Aluminum Actuator) is a high-quality valve specifically designed for sanitary fluid control applications within the food, beverage, dairy, pharmaceutical, and bioengineering industries. Constructed from premium-grade stainless steel, this valve features a compact structure, reliable sealing capabilities, ease of assembly and disassembly, and excellent hygienic properties. It is widely utilized in various sanitary process piping systems that require rapid on/off control of fluid flow. Its unique pneumatic actuation mechanism enables remote control and automated operation, significantly enhancing production efficiency and the precision of process control; thus, it serves as an indispensable critical control component in modern sanitary fluid transport systems.
The "two-piece" structural design of this valve allows for maintenance and inspection without the need to dismantle the entire piping system; one simply needs to loosen the clamp to access the valve for servicing or seal replacement, thereby drastically reducing maintenance costs and downtime. The valve ball features a precision-ground stainless steel sphere, paired with reinforced PTFE (Polytetrafluoroethylene) or food-grade sealing materials, ensuring reliable sealing performance under a wide range of operating conditions. The pneumatic actuator is constructed from aluminum alloy, offering not only lightweight characteristics but also excellent corrosion resistance and a reliable response speed, thereby meeting the demands for long-term, stable operation in industrial environments.
II. Product Structure and Features
2.1 Structural Components
The Stainless Steel Sanitary Two-Piece Pneumatic Clamp-Type Ball Valve primarily consists of the following core components, each of which has undergone precision engineering and rigorous quality control to ensure exceptional overall performance. The valve body is fabricated from 316L stainless steel—a material renowned for its superior corrosion resistance and high-temperature tolerance—enabling it to withstand the corrosive effects of various chemical media while simultaneously complying with the strict sanitary standards of the food and pharmaceutical industries. The valve ball is likewise constructed from 316L stainless steel; through precision turning and grinding processes, its surface roughness is refined to less than Ra 0.4μm, ensuring a perfect fit between the ball and the valve seat to achieve a zero-leakage seal.
The valve stem features an "anti-blowout" design: should the valve be subjected to excessive pressure under abnormal conditions, the pressure from the fluid medium will force the stem inward against the valve body, creating a secondary seal. This mechanism effectively prevents fluid leakage, thereby safeguarding the safety of both operating personnel and equipment. The pneumatic actuator is mounted atop the valve body and connected to the valve stem via a mounting bracket, converting the energy of compressed air into the rotational motion of the valve. Internally, the actuator is equipped with either a spring-return mechanism or a double-acting cylinder, allowing for the selection of different operating modes based on specific operational requirements. The clamp connections feature a standard sanitary-grade design, facilitating rapid installation and disassembly while ensuring the sealing integrity and stability of the connection.
2.2 Key Features
This valve boasts several outstanding technical features that establish it as a preferred choice in the field of sanitary fluid control. First, its all-stainless steel construction ensures exceptional corrosion resistance and longevity; the use of 316L stainless steel not only withstands corrosion from most acidic and alkaline media but also maintains excellent mechanical properties in high-temperature environments. Second, the quick-clamp connection method makes installation and disassembly extremely convenient, requiring no specialized tools or skills to complete the operation, thereby significantly reducing maintenance time and labor costs.
The pneumatic actuation system offers rapid response and precise operation, enabling quick opening and closing actions with a cycle time controllable within one second—a capability that meets the demanding pace of automated production lines. The actuator features a modular design, allowing for the convenient addition of accessories such as solenoid valves, positioners, and limit switches to facilitate a wide range of complex control functions. The valve's internal flow channel utilizes a full-bore design, resulting in minimal fluid resistance and low pressure drop, which helps reduce system energy consumption and operating costs. Furthermore, the valve's sanitary design eliminates dead spaces where fluid stagnation could occur, facilitating easy CIP (Clean-in-Place) and SIP (Sterilize-in-Place) procedures to fully comply with the stringent hygiene standards of the pharmaceutical and food industries.
