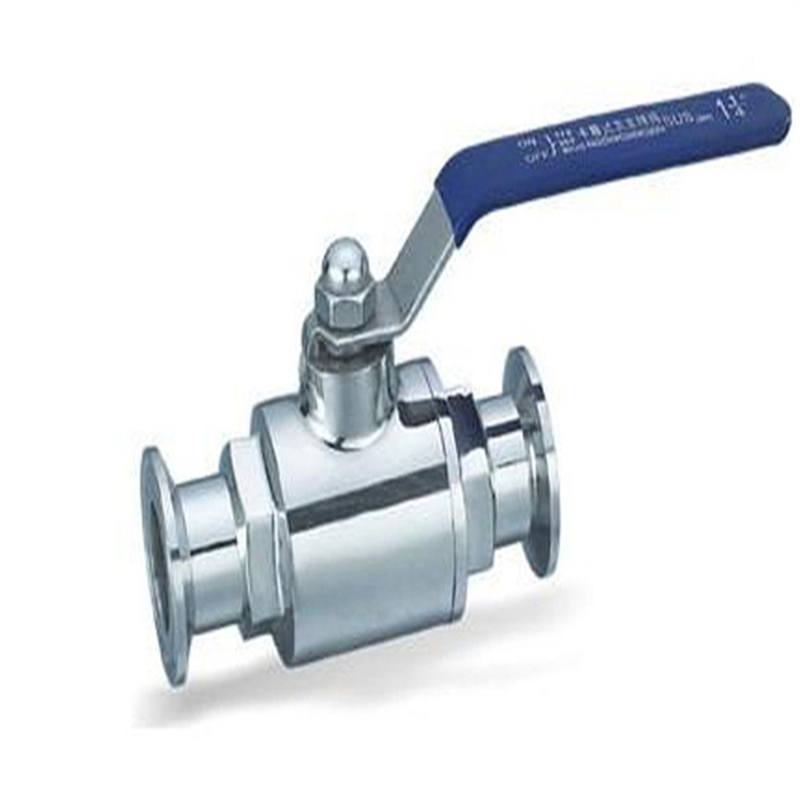

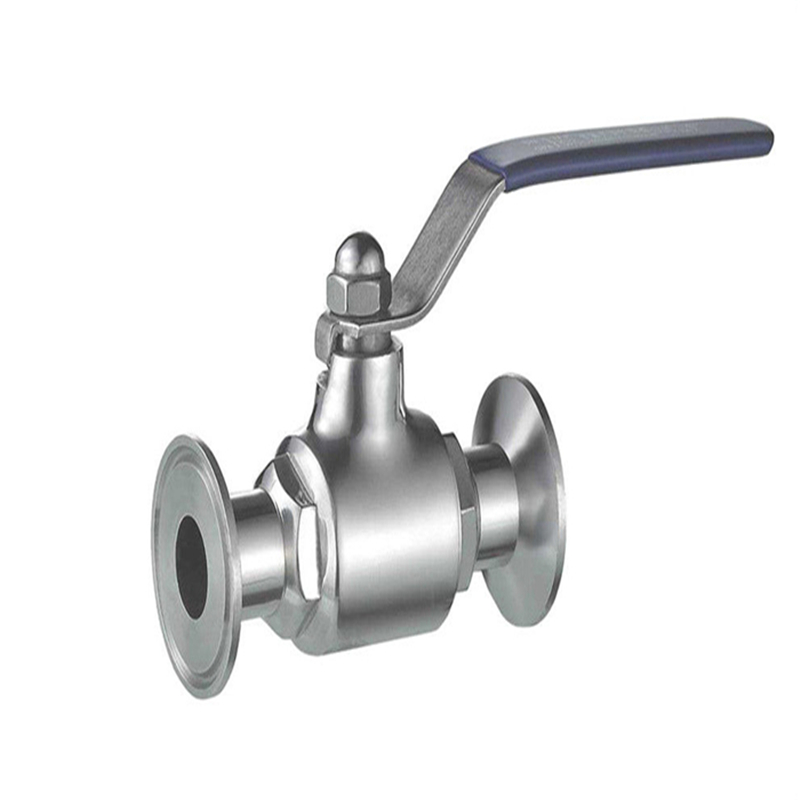

Sanitary Stainless Steel 2-Piece Polished Clamp-Type Ball Valve (Manual)

Sanitary Stainless Steel 2-Piece Polished Clamp-Type Ball Valve (Manual)

I. Product Overview

The Stainless Steel Sanitary Two-Piece Polished Clamp Ball Valve is a high-sanitation-standard valve product specifically designed for industries such as food processing, pharmaceuticals, dairy, beverage production, and fine chemicals. Constructed from high-quality stainless steel (typically SUS304 or SUS316L) and subjected to precision electropolishing, the valve achieves a surface finish of Ra < 0.2–0.8 μm. This ensures that the valve's internal cavity remains free of any areas where process media could accumulate, thereby completely eliminating potential risks of contamination.

Structurally, the two-piece ball valve consists of two body sections—an upper and a lower—between which the spherical ball is secured at the center using bolts or clamps. Compared to traditional one-piece and three-piece ball valves, the two-piece design offers a simpler construction and greater ease of maintenance, all while maintaining excellent sealing performance. The valve seats are manufactured from Polytetrafluoroethylene (PTFE) or Reinforced Polytetrafluoroethylene (PPL), materials renowned for their exceptional chemical stability and wear resistance, enabling the valve to operate reliably across a wide temperature range of -20°C to 350°C.

The clamp connection method is a key distinguishing feature of this valve series. By utilizing a clamp-style connection, the assembly and disassembly of the valve become remarkably convenient; no specialized technical expertise is required, allowing standard operators to master the procedure with only minimal training. This connection method proves particularly advantageous in applications requiring frequent cleaning or maintenance, as it significantly reduces downtime and boosts overall production efficiency.

Product Details:

Payment & Shipping Terms:

Detailed Product Description:

II. Key Features and Advantages

2.1 Exceptional Hygienic Performance

The hygienic performance of the sanitary two-piece ball valve constitutes its core competitive advantage. First, both the internal and external surfaces of the valve undergo treatment using high-grade polishing equipment and a standard electropolishing process. This ensures a mirror-smooth finish, eliminating any areas where process media could accumulate. This design fully complies with GMP (Good Manufacturing Practice) requirements, effectively preventing bacterial proliferation and media residue.

Second, the valve features a fully encapsulated F4 sealing structure; the sealing ring is completely enclosed within the valve body, isolated from the external environment, thereby eliminating the risk of the sealing material becoming contaminated by external factors. Simultaneously, the sealing force between the ball and the valve seat increases in proportion to the media pressure, creating a "self-tightening seal" effect that ensures superior sealing performance under all operating conditions.

Furthermore, compared to a three-piece structure, the two-piece design reduces the number of sealing interfaces, fundamentally minimizing potential leak points and hygienic dead zones. This feature is of paramount importance in applications requiring a high degree of cleanliness.

2.2 Excellent Fluid Dynamics

Sanitary ball valves demonstrate outstanding performance in fluid control applications. The valve's opening and closing element consists of a spherical ball with a through-hole; when the ball rotates 90 degrees, the inlet and outlet ports align perfectly with the spherical surface, thereby achieving a complete shut-off of the flow. This design endows the ball valve with the lowest fluid resistance coefficient among all valve types, rendering its resistance loss virtually negligible.

The internal flow channel of the valve body undergoes precision polishing and maintains perfect alignment with the inner diameter of the pipeline, preventing any throttling effects or the accumulation of sediment. The ball valve performs equally well when conveying viscous fluids, slurries, or media containing solid particles, without encountering issues such as clogging or abrasive wear. The straight-through flow channel design ensures the smooth passage of media, thereby minimizing energy loss to the greatest extent possible.

2.3 Convenient and Reliable Operation

The operational simplicity of the ball valve is a primary reason for its widespread adoption. Transitioning from a fully open to a fully closed position requires only a 90-degree rotation of the handle, allowing for rapid and precise operation. This rapid opening and closing capability is particularly well-suited for process workflows that require frequent fluid flow adjustments, and it is also ideally suited for remote control and automated operation systems. Ball valves feature low operating torque, allowing for flexible and effortless opening and closing. Furthermore, during the opening and closing process, the sealing surfaces between the ball and the valve seat remain isolated from the flowing medium; consequently, the passage of the medium causes neither erosion nor abrasion to the sealing surfaces, thereby significantly extending the service life of the valve. Even after prolonged use, should the seals require replacement, the disassembly and reassembly processes are remarkably simple; the valve's uncomplicated structure—typically featuring a floating seal ring design—facilitates easy maintenance.

2.4 Flexible Connection Options

Two-piece clamp-type ball valves primarily utilize a quick-connect clamp coupling method, a connection style that offers numerous advantages. Clamp connections are exceptionally convenient to assemble and disassemble; one need only loosen the two clamp segments to remove or replace the valve, requiring neither specialized tools nor professional expertise. Moreover, the valve can be installed in any orientation and at any location within a piping system, offering a high degree of installation flexibility.

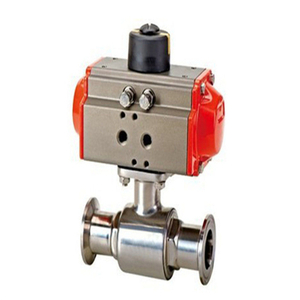

In addition to the standard clamp connection, select product models are available with various alternative connection types—including threaded, butt-weld, and socket-weld options—to meet the specific practical requirements of diverse engineering projects. The valve's mounting pad dimensions adhere to the international ISO-5211 standard, allowing for direct integration with pneumatic, electric, or hydraulic actuators to facilitate the expansion of automated control capabilities.
