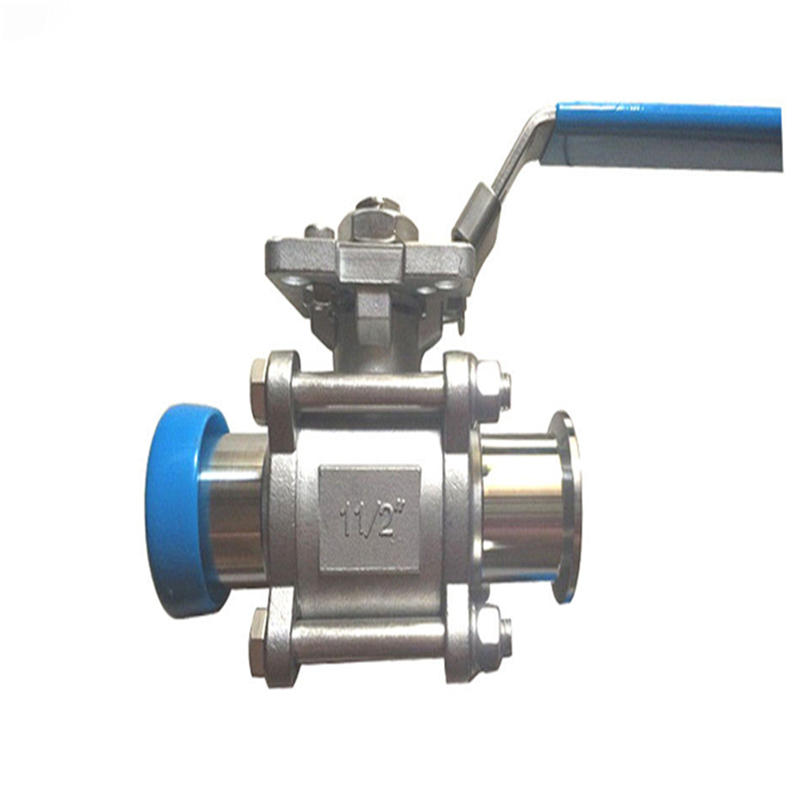

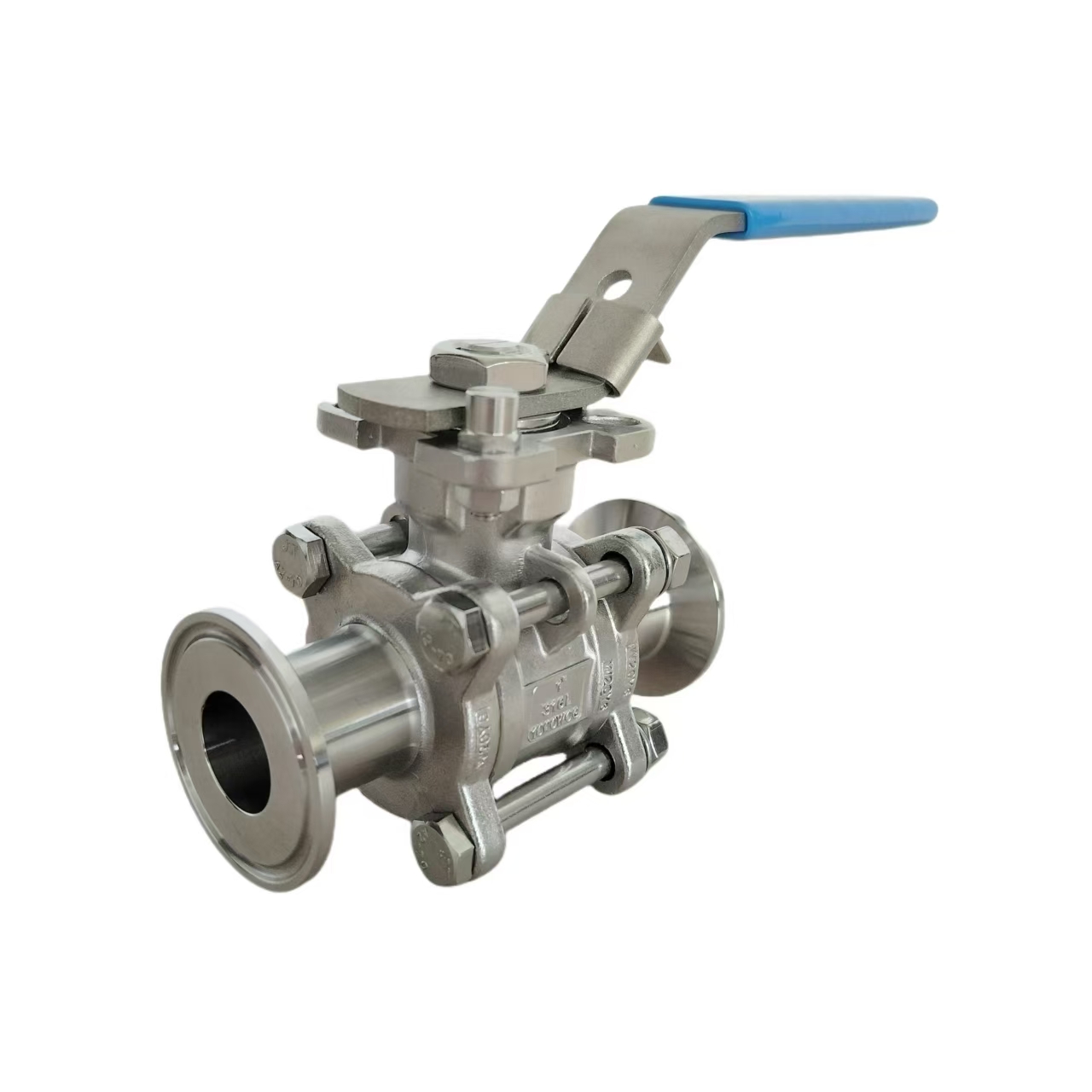

Stainless Steel Sanitary 3-Piece Clamp Ball Valve (Manual)

Introduction to and Applications of Stainless Steel Sanitary Three-Piece Quick-Clamp Ball Valves

The Stainless Steel Sanitary Three-Piece Quick-Clamp Ball Valve is a critical fluid control component in modern industries such as food processing, pharmaceuticals, dairy production, and beverages, designed specifically for production environments with stringent hygiene requirements. Constructed from high-quality stainless steel, this valve leverages a three-piece body structure and a quick-clamp connection method to deliver multiple advantages, including convenient installation, thorough cleaning capabilities, and reliable sealing. This article provides a systematic introduction to this vital industrial valve, covering various dimensions such as product overview, structural features, technical parameters, application fields, and selection guidelines.

I. Product Overview and Basic Concepts

The Stainless Steel Sanitary Three-Piece Quick-Clamp Ball Valve—also referred to simply as a sanitary clamp ball valve or a three-piece quick-connect ball valve—is a type of ball valve product designed exclusively for sanitary fluid transport systems. Featuring a three-segment body design, the valve utilizes a clamp (Tri-clamp) connection method to facilitate rapid assembly with piping systems, hence its designation as a "three-piece quick-clamp ball valve." This valve combines the inherent characteristics of ball valves—namely rapid opening/closing and reliable sealing—with the rigorous demands of the sanitary industry regarding cleanliness, the absence of dead spaces, and ease of cleaning; consequently, it stands as one of the preferred valve types for fluid control within the food and pharmaceutical sectors.

In terms of functional positioning, the sanitary three-piece quick-clamp ball valve is primarily employed for shut-off and flow regulation operations within material transport pipelines. Its core operating principle involves a valve stem rotating the spherical ball element ninety degrees between the valve seats to effect the opening and closing of the pipeline. When the bore within the ball aligns with the pipeline, the valve is in a fully open state, allowing the medium to flow through unimpeded; conversely, when the ball rotates ninety degrees such that its bore is perpendicular to the direction of the pipeline, the valve enters a closed state, thereby cutting off the flow of the medium. This simple yet highly efficient operating mechanism makes the ball valve an ideal choice for achieving rapid opening and closing within piping systems. The nomenclature for the sanitary-grade three-piece quick-clamp ball valve encapsulates several key pieces of information: "Stainless Steel" indicates that the main body material is stainless steel, offering excellent corrosion resistance; "Sanitary Grade" signifies that the product complies with the hygiene standards required by industries such as food processing and pharmaceuticals, with a surface finish that meets relevant cleanliness specifications; "Three-Piece" describes the valve body's structural form—comprising a left body, a right body, and a central body—which are secured together via bolted connections; finally, "Quick-Clamp" specifies the connection method, utilizing the internationally standardized clamp fitting (Tri-clamp) to facilitate rapid installation and disassembly.

II. Structural Features and Design Advantages

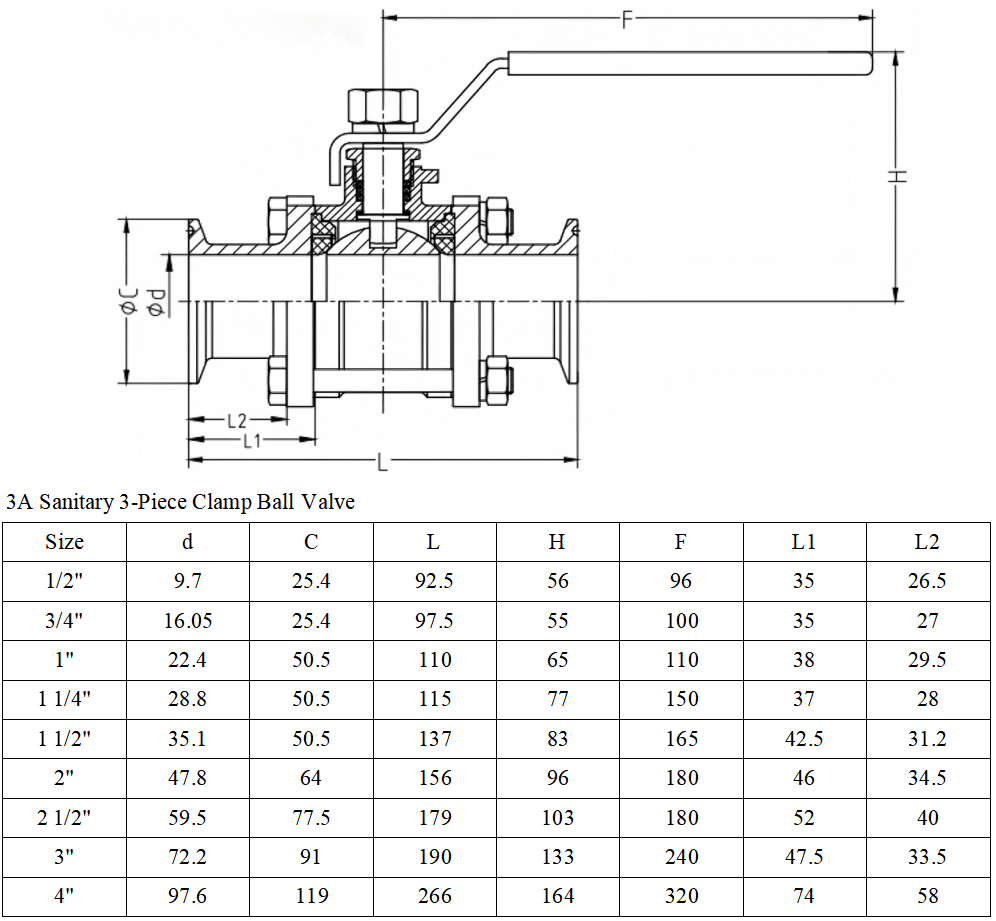

2.1 Three-Piece Valve Body Structure

The three-piece structure is a distinguishing feature that sets sanitary-grade ball valves apart from standard ball valves. Compared to one-piece or two-piece ball valves, the body of a three-piece ball valve consists of three distinct sections—a left body, a right body, and a central body—each secured to the others using high-strength bolts. This design offers multifaceted advantages: First, the three-section structure allows for the complete disassembly of the valve, facilitating the inspection of internal components, the replacement of seals, or the removal of accumulated deposits without the need to cut and remove the entire valve from the pipeline; second, the three-piece structure ensures a more robust seal, maintaining stable sealing performance even under high-pressure operating conditions; third, the valve body is robust and possesses high pressure-bearing capacity, capable of meeting the diverse pressure requirements of industrial production processes; fourth, compared to one-piece structures, the three-piece design makes it easier to ensure dimensional accuracy and surface quality during the casting and machining stages.

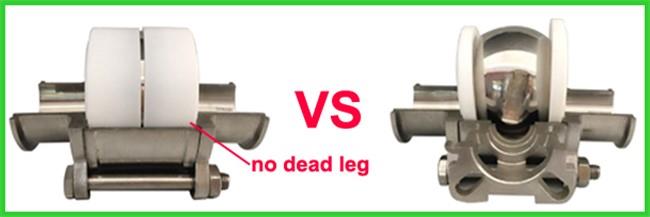

In sanitary-grade applications, three-piece ball valves typically employ a fully encapsulated seat design—a critical technology for resolving the issue of fluid retention. This fully encapsulated design ensures that the ball is completely enveloped by the valve seats, thereby eliminating the "dead spaces" or crevices traditionally found between the valve body and the seats in conventional ball valves. Consequently, the fluid flow channel remains smooth and unobstructed, completely preventing the accumulation of residual fluid within the valve cavity. This design not only satisfies stringent sanitary cleanliness requirements but also mitigates the risk of contaminating fresh product due to the spoilage or degradation of residual fluids—making it particularly well-suited for production processes with extremely rigorous hygiene demands, such as those in the dairy and brewing industries.

2.2 Quick-Connect Clamp Connection Method

The clamp connection (Tri-clamp) is an internationally recognized standard for sanitary piping connections. Originating in the U.S. dairy industry, it has since been widely adopted by various international and regional standards organizations, including ISO, DIN, 3A, SMS, and IDF. A clamp connection consists of three primary components: the clamp body, a sealing gasket, and two pipe end fittings. Installation is straightforward: simply align the two pipe end fittings, insert the sealing gasket, place the clamp over the assembly, and tighten the bolt. Compared to traditional flange or welded connections, clamp connections offer the following significant advantages:

Installation Speed ​​Increased by Over 300%: Clamp connections require no welding or subsequent re-galvanizing; the installation process is simple and rapid, making them particularly well-suited for sanitary piping systems that require frequent disassembly for cleaning. Operators do not require specialized professional skills; they can achieve proficiency after undergoing only brief training. This rapid-connection capability facilitates more convenient CIP (Clean-in-Place) and SIP (Sterilize-in-Place) operations, thereby significantly boosting production efficiency.

Extremely Convenient Maintenance and Replacement: When a specific component within the piping system requires maintenance or replacement, the relevant pipe section can be removed simply by loosening the clamp bolt—without the need to damage surrounding walls or cut the piping. This feature drastically reduces both maintenance time and costs, while minimizing the economic losses associated with equipment downtime.

Superior and Reliable Sealing Performance: The sealing gaskets used in clamp connections feature a "C-type" design, which creates a triple-layer leak-proof structure upon assembly. The higher the pressure of the fluid flowing through the pipe, the more tightly the gasket is compressed, resulting in an even more effective seal. Testing has demonstrated that high-quality clamp connections can withstand test pressures exceeding 4.2 MPa, operate within a temperature range of -30°C to +100°C, and maintain vacuum levels down to 0.08 MPa.

2.3 "No-Retention" Design Philosophy

The core design philosophy behind sanitary three-piece quick-connect clamp ball valves is to eliminate areas where fluid can become stagnant, thereby achieving a truly "dead-space-free" and hygienic flow channel. This philosophy permeates every design detail of the valve:

Smooth Internal Cavity Design: The internal cavity of the valve body undergoes precision polishing; its surface roughness (Ra value) can reach 0.8 microns or even lower. This smooth internal surface not only minimizes fluid resistance but, more importantly, eliminates microscopic pores and crevices, leaving no hiding places for bacteria and ensuring more thorough cleaning.

Full-Bore Flow Path: Sanitary ball valves typically feature a full-bore design, wherein the internal diameter of the ball channel aligns closely with that of the pipeline, allowing media to pass through with virtually no obstruction. This design not only reduces system resistance and lowers energy consumption but, significantly, prevents the fluid turbulence and "dead zones" that can result from a constricted flow path.

Self-Draining Capability: The valve body design fully accounts for drainage requirements; when installed, the valve can be angled slightly to ensure that the media within the pipeline drains completely, leaving no residue behind. This feature is particularly critical for handling viscous fluids, media containing solid particles, and production processes that demand rigorous batch control.

III. Selection Recommendations and Considerations

Selecting the appropriate sanitary three-piece quick-clamp ball valve requires a comprehensive assessment of multiple factors:

Confirm Pipe Specifications and Connection Methods: First, determine the nominal diameter and outer diameter of the piping to select a valve size that matches. For clamp connections, verify the specific clamp dimensions; if necessary, non-standard sizes can be customized. Valves may also offer various other connection options—such as welding or threading—so the most suitable method should be chosen based on the actual piping conditions at the installation site.

Evaluate Media Characteristics: Characteristics of the fluid medium—including chemical composition, corrosiveness, temperature, pressure, presence of solid particles, and viscosity—all influence the selection of valve body materials and sealing materials. For highly corrosive media, priority should be given to 316L stainless steel and PTFE seals; for media containing solid particles, verify that the valve features a design structure specifically intended to prevent particle accumulation.

Consider Temperature and Pressure Conditions: Select a valve with appropriate pressure and temperature ratings based on the actual operating conditions of the system, ensuring an adequate safety margin. Pay close attention to the maximum applicable temperature limits for different sealing materials to ensure stable sealing performance throughout the entire process temperature range.

Determine Actuation Method: Manual actuation is suitable for applications involving frequent on-site operation but where automation requirements are relatively low. Pneumatic actuation offers rapid response speeds and is ideal for operating conditions requiring quick opening/closing or frequent cycling. Electric actuation facilitates remote control and seamless integration into automated systems, allowing for linkage with Distributed Control Systems (DCS).

Verify Certification Requirements: Select products that hold the appropriate certifications based on the regulatory requirements of the intended sales region and target market. For instance, entry into the U.S. market requires compliance with FDA standards; entry into the European market requires compliance with relevant EU directives; and use within the pharmaceutical sector in the Chinese market requires compliance with GMP standards.

Prioritize Supplier Credentials: Choose products from reputable manufacturers that possess the necessary production qualifications and quality management system certifications (e.g., ISO 9001, CE, etc.). When necessary, request supporting documentation—such as material certificates and test reports—to ensure product quality is reliable and that comprehensive after-sales support is guaranteed.

As a core component within modern sanitary fluid control systems, the stainless steel sanitary three-piece quick-clamp ball valve plays a pivotal role in safeguarding product quality, enhancing production efficiency, and reducing maintenance costs. A thorough understanding of the product's features—combined with a rational approach to selection and application—is of paramount importance for optimizing the overall performance and reliability of the entire fluid handling system.
