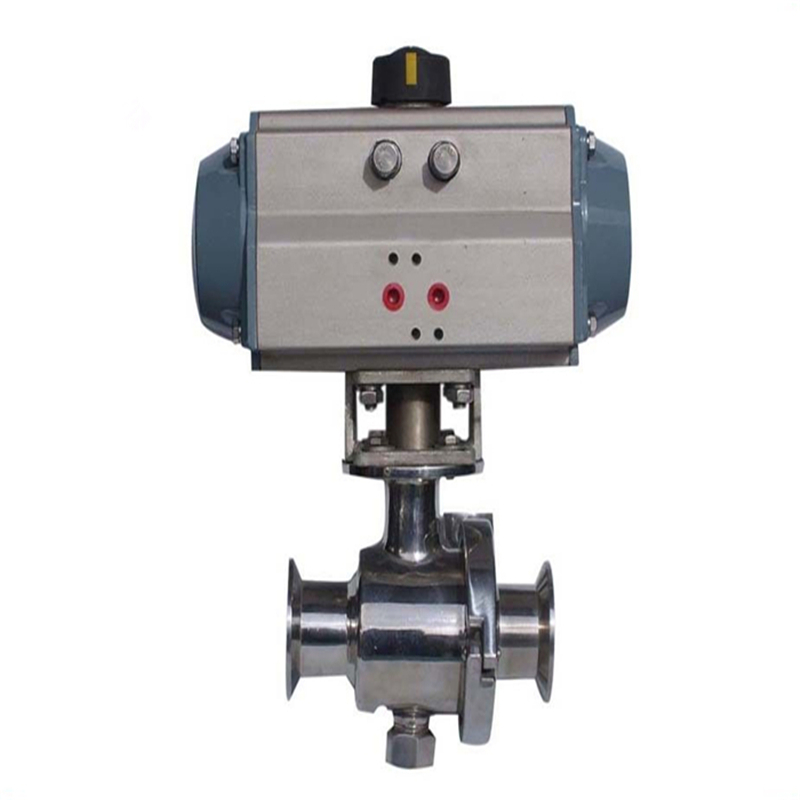

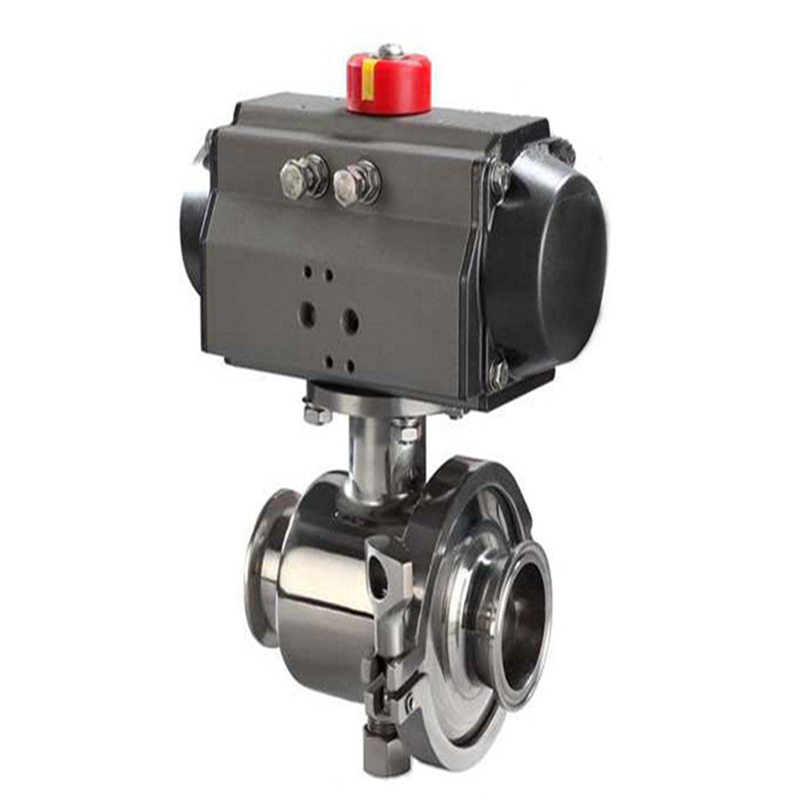

Sanitary Stainless Steel Pneumatic Clamp-Type Ball Valve with Aluminum Actuator
I. Product Overview
The Stainless Steel Sanitary Clamp-Type Pneumatic Ball Valve with Aluminum Actuator is a fluid control valve specifically designed for sanitary-grade applications within industries such as food processing, pharmaceuticals, and bioengineering. This product consists of a high-platform sanitary ball valve precisely assembled with an aluminum alloy pneumatic actuator; it utilizes a clamp (quick-connect) style connection, enabling rapid disassembly and convenient cleaning. The valve's flow channel undergoes precision polishing and rigorous sterilization treatment, while its sealing surfaces feature a fully encapsulated PTFE design with a "dead-space-free" structure, ensuring unimpeded fluid flow while meeting the most stringent sanitary requirements. The pneumatic actuator utilizes compressed air as its power source, employing a rack-and-pinion mechanism to rotate the ball 90 degrees, thereby enabling rapid shut-off or modulation control of the fluid medium. The ISO 5211 high-platform standard design ensures seamless integration between the actuator and the ball valve, delivering high precision in switching and modulation, as well as stable and reliable performance.
The surface of the aluminum alloy pneumatic actuator is treated via anodization, providing excellent corrosion resistance and an aesthetically pleasing appearance. Its dual-piston rack-and-pinion structure delivers smooth, consistent torque output, boasting a service life of over one million cycles under normal operating conditions. The standard air supply interface allows for direct connection to solenoid valves, simplifying the installation process. This product is widely utilized in fluid control applications requiring high levels of cleanliness—including beer brewing, food processing, chemical engineering, pharmaceuticals, bioengineering, water treatment, and daily chemical machinery manufacturing.
II. Key Features and Advantages
The Stainless Steel Sanitary Clamp-Type Pneumatic Ball Valve with Aluminum Actuator possesses several core technological advantages that make it the preferred fluid control component for sanitary-grade environments. First, regarding sanitary performance, the product employs a fully encapsulated PTFE sealing structure wherein the sealing surfaces completely envelop the valve ball; this design eliminates any dead spaces or internal cavities, effectively preventing the accumulation of residual media and inhibiting bacterial growth. The inner walls of the flow channel undergo a 240-grit (Ra 0.5μm) electropolishing treatment, resulting in a mirror-smooth surface that guarantees unimpeded fluid flow. The valve's bore diameter matches the internal diameter of the pipeline, preventing the formation of any sediment or deposits, and fully satisfying the process requirements for CIP (Clean-in-Place) and SIP (Sterilize-in-Place) procedures. Secondly, in terms of structural design, the product features a three-piece clamp-connection ball valve configuration. This design is simple and compact, characterized by its small size and light weight. The ball valve and actuator are directly coupled via an ISO 5211 high-platform interface; this bracket-free design is not only aesthetically pleasing but also eliminates potential failure risks associated with loose mounting brackets. The surface of the aluminum alloy actuator undergoes anodic oxidation treatment, providing excellent corrosion resistance and embodying a modern industrial aesthetic. The rack-and-pinion mechanism ensures smooth and consistent output torque, while the dual-Belleville-spring automatic packing compression system and double-layer stem packing configuration fully meet the requirements for stem leakage testing.
Regarding installation and maintenance, the clamp-connection method significantly simplifies the installation process; it requires no specialized professional skills, allowing standard workers to perform the task after undergoing only brief training. For maintenance or replacement, one simply needs to loosen the two clamps to freely rotate or modify the pipeline section, thereby avoiding the need to damage surrounding walls and significantly reducing downtime and maintenance costs. The actuator can be optionally equipped with a handwheel mechanism, enabling manual operation in the event of a pneumatic supply failure to ensure uninterrupted production continuity.
