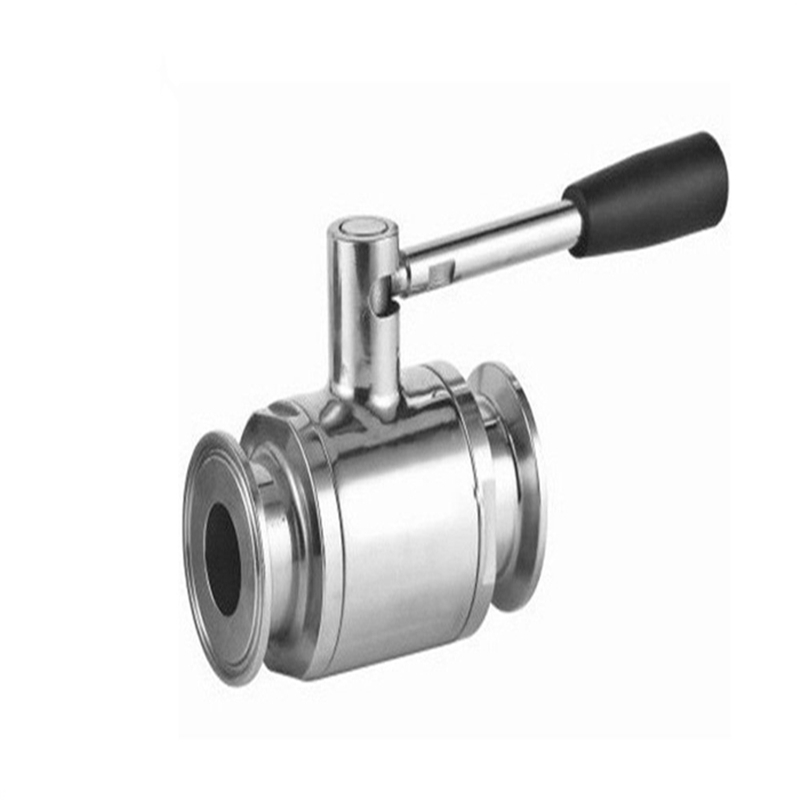

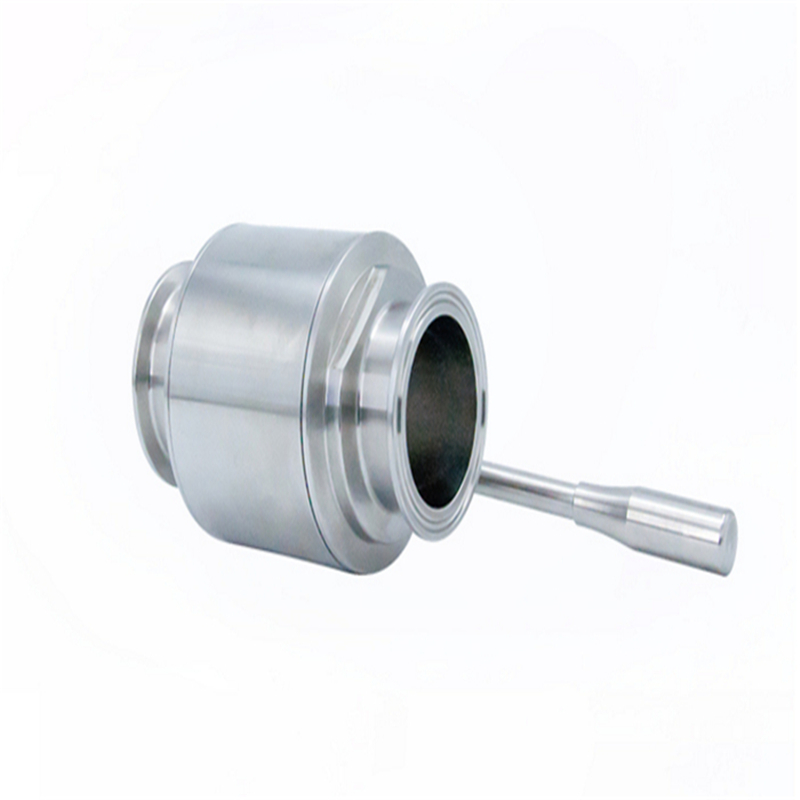

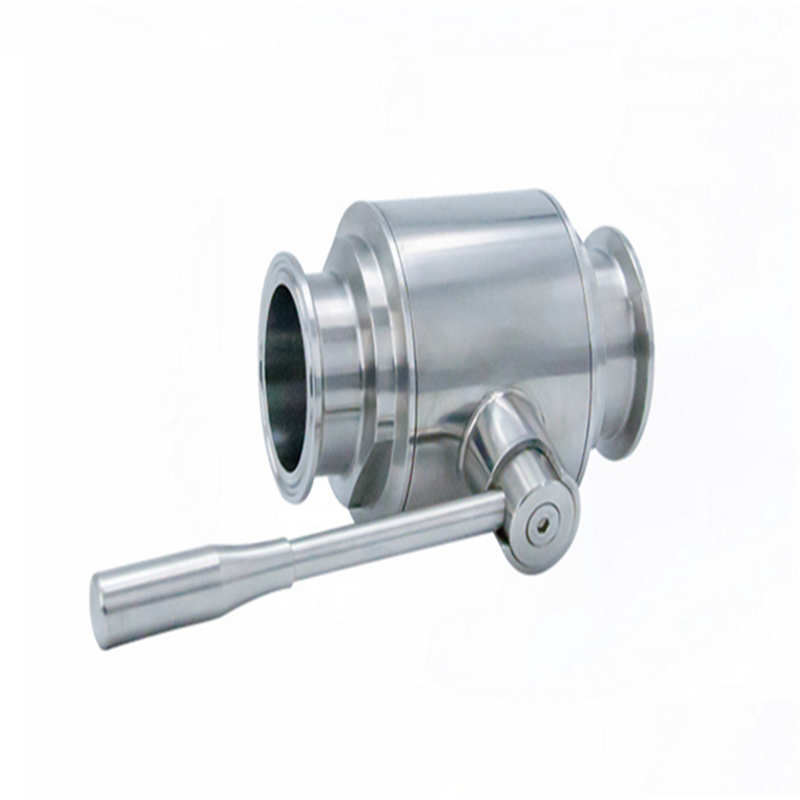

Sanitary-Grade Stainless Steel 3-Piece Clamp-Type Ball Valve (CNC Precision-Turned)

Sanitary-Grade Stainless Steel 3-Piece Clamp-Type Ball Valve (CNC Precision-Turned)

I. Product Overview

The Stainless Steel Sanitary Three-Piece Clamp-Type Ball Valve—precision-machined using CNC technology—is a high-end fluid control valve specifically designed for industries such as food processing, pharmaceuticals, dairy, beverages, and bioengineering. This valve features a three-piece structural design combined with precision CNC machining processes, ensuring exceptional sealing performance, reliable operational stability, and a surface finish that meets stringent international sanitary standards. The valve body is constructed from high-quality stainless steel (Grades 304, 316, or 316L); its internal flow channels undergo precision polishing and sterilization treatments, achieving a surface roughness of Ra 0.4–0.8 μm. This fully satisfies the sanitary specifications mandated by GMP and FDA guidelines, establishing the valve as a critical control component within sanitary fluid transport systems.

The core structure of the three-piece clamp-type ball valve consists of a main body, two end caps, and a central ball; these three components are rapidly connected and secured using a clamp mechanism. This design not only facilitates easy installation and disassembly but, more importantly, allows for the complete opening of the valve cavity, thereby enabling thorough cleaning and sterilization. As a globally recognized standard for sanitary piping connections (compliant with standards such as 3A, SMS, and DIN), the clamp connection method offers significant advantages—including reliable sealing, rapid assembly, and the elimination of dead spaces—making it the preferred connection method for fluid piping systems within the food and pharmaceutical industries.

Product Details:

Technical Parameters:

Payment & Shipping Terms:

Detailed Product Description:

II. Product Features and Advantages

2.1 Precision CNC Machining

This series of valves is manufactured using precision CNC turning equipment, with every stage of the process subject to precise calculation and rigorous control. The dimensional accuracy of the valve body and ball reaches the micron level, ensuring a precise and uniform clearance fit between the ball and the seat, thereby achieving a zero-leakage seal. The valve stem features an anti-blowout design, paired with a double-layer packing seal structure, to effectively prevent media leakage while eliminating the risk of the stem blowing out due to accidental operation. The valve mounting platform is designed in strict accordance with the ISO-5211 standard, allowing for the direct installation of pneumatic or electric actuators to enable automated control.

2.2 Sanitary-Grade Surface Finish

Both the internal and external surfaces of the valve undergo high-precision polishing; the Ra value is controlled within the range of 0.4 to 0.8 μm, ensuring a smooth fluid channel free of dead zones. The flow path features a full-bore design—where the valve bore diameter matches the internal diameter of the pipeline—to prevent fluid turbulence and stagnation within the valve cavity. The sealing rings are made of food-grade Polytetrafluoroethylene (PTFE), offering excellent corrosion resistance and high-temperature durability, and can operate stably within a temperature range of -20°C to 180°C. The fully encapsulated seal design completely eliminates areas where media could accumulate, fully complying with the process requirements for CIP (Clean-in-Place) and SIP (Sterilize-in-Place).

2.3 Rapid Disassembly and Assembly Design

The clamp connection method is the most distinctive design highlight of this valve. During maintenance or replacement, the valve can be detached from the pipeline system simply by loosening two clamps, without the need to dismantle surrounding equipment; this significantly reduces maintenance time and costs. This design is particularly well-suited for food and pharmaceutical production lines that require frequent cleaning and sterilization; operators require no specialized skills and can perform operations proficiently after only simple training. The three-piece body structure also allows for the replacement of only the sealing components during maintenance—rather than the entire valve—thereby effectively lowering operating costs.

2.4 Versatile Actuation Options

This valve series supports three actuation methods—manual, pneumatic, and electric—allowing for flexible selection based on specific process requirements. Manual valves come standard with a locking handle, enabling on-site locking functionality to prevent accidental operation. Pneumatic actuators are available in either double-acting or single-acting (spring-return) configurations. Control modes include both on/off and modulating types, with the modulating actuators supporting 4–20 mA signal inputs to enable proportional control. Electric actuators are similarly available in both on/off and modulating specifications, with optional explosion-proof models available to meet the requirements of specialized operating environments. The interfaces on all actuators comply with international standards, facilitating seamless integration with a wide range of control systems.

Specifications:
