Stainless Steel Sanitary Pneumatic Clamp Ball Valve

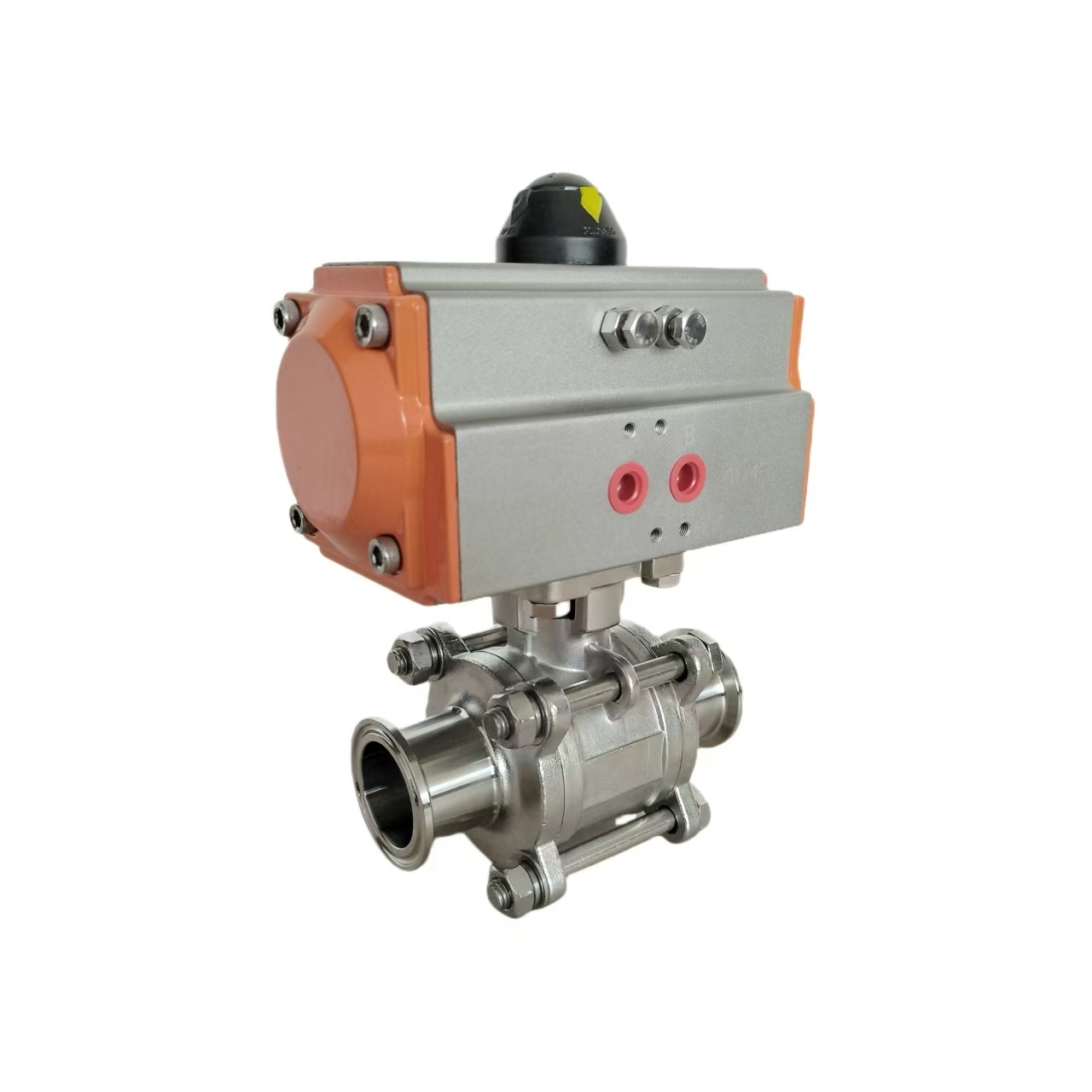

Sanitary Stainless Steel Three-Piece Clamp-Type Ball Valve with Aluminum Pneumatic Actuator

I. Product Overview

The Sanitary Stainless Steel Three-Piece Clamp-Type Ball Valve with Aluminum Pneumatic Actuator is a high-end fluid control valve specifically designed for industries with stringent hygiene requirements—such as food processing, pharmaceuticals, and bioengineering. Crafted from premium-grade stainless steel, the valve features a three-piece body structure that facilitates rapid installation and disassembly via a clamp-type connection. The pneumatic actuator is constructed from lightweight aluminum alloy and equipped with a precision rack-and-pinion transmission mechanism; it drives the internal ball through a 90-degree rotation to control the flow or shut-off of the medium.

Throughout its manufacturing and processing, this valve strictly adheres to FDA and GMP regulatory standards. The inner walls of the flow channel undergo precision polishing and sterilization treatments, achieving a surface roughness of Ra 0.4–0.8 μm to ensure that the medium remains free from contamination during conveyance. The three-piece structural design offers significant advantages over traditional two-piece ball valves: specific components are detachable, facilitating routine maintenance, cleaning, and repairs, thereby effectively minimizing downtime and reducing maintenance costs.

Compliant with international standards such as ISO, DIN, IDF, SMS, and 3A, this product integrates seamlessly with various domestic and international sanitary piping systems. The aluminum pneumatic actuator is characterized by rapid response times, stable output, and high reliability; with a service life exceeding one million cycles under normal operating conditions, it is fully capable of meeting the high-frequency operational demands of modern industrial production environments.

II. Core Features and Advantages

2.1 Hygienic and Safe Design

The valve is designed with full consideration for the specific requirements of hygienic-grade applications. It features a fully enclosed PTFE sealing structure where the seal ring tightly envelops the valve ball, eliminating any voids or dead spaces to effectively prevent media accumulation and bacterial growth. The inner wall of the flow channel undergoes a 240-grit electropolishing process, resulting in a smooth, seamless surface that prevents sediment formation and ensures unimpeded fluid flow.

Both the valve body and the ball are precision-crafted from SUS304, SUS316, or SUS316L stainless steel, offering exceptional corrosion resistance and mechanical strength. The valve stem incorporates an anti-blowout design, complemented by a dual-layer stem packing and a Belleville spring assembly, ensuring the valve maintains reliable sealing performance even under high-pressure operating conditions.

2.2 Rapid Disassembly and Convenient Maintenance

The clamp-style quick-connect mechanism is one of this product's core technological advantages. The valve features standard clamp interfaces at both ends, allowing for the rapid disassembly of individual valve components simply by loosening the clamps. This enables cleaning, maintenance, and seal replacement tasks to be completed without the need for specialized tools. This design is particularly well-suited for applications requiring frequent SIP (Steam-in-Place) and CIP (Clean-in-Place) cycles, significantly enhancing equipment maintenance efficiency.

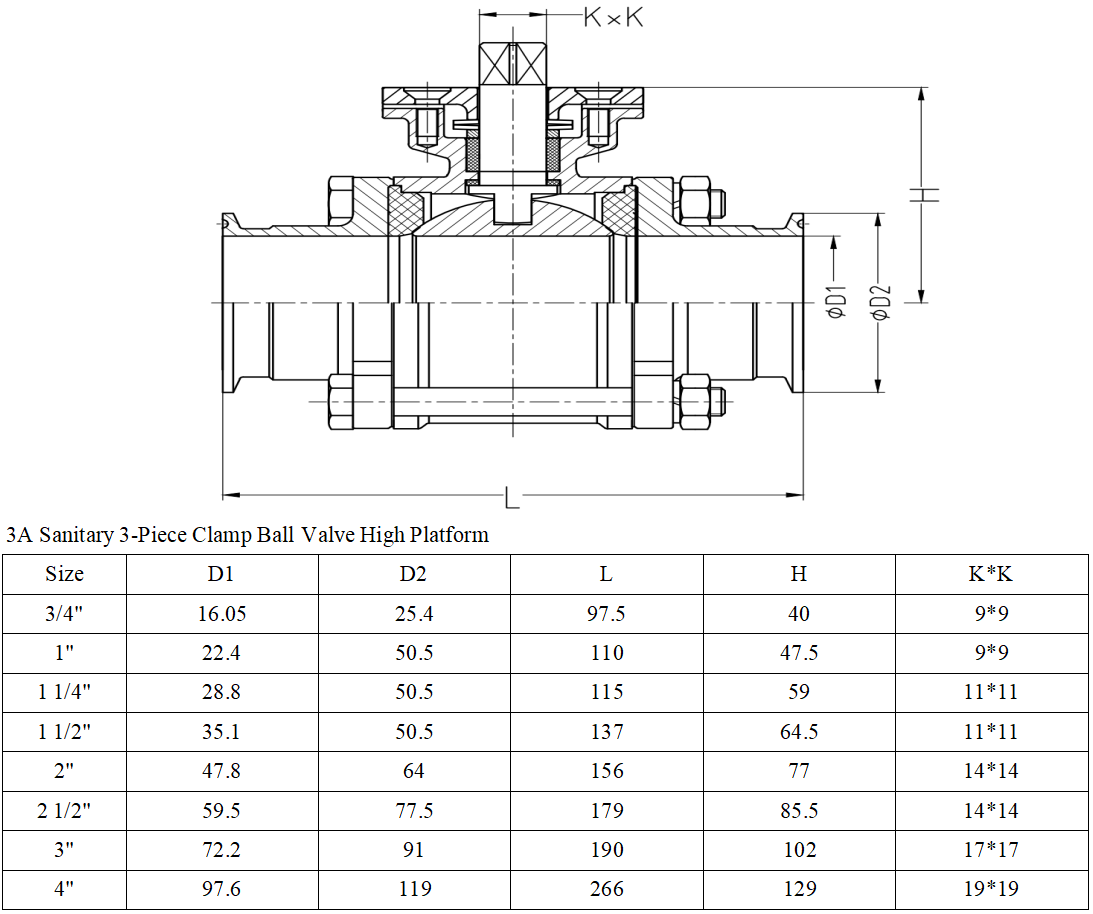

Another significant advantage of the three-piece structure lies in its modular design philosophy. The valve body consists of three separate sections that can be individually disassembled and replaced; in the event of localized damage, there is no need to replace the entire valve unit, thereby effectively reducing long-term operating costs for the user. Additionally, the ball valve mounting platform adheres to the ISO-5211 standard, ensuring standardized actuator mounting interfaces and strong compatibility.

2.3 Efficient and Reliable Pneumatic Actuation

The aluminum alloy pneumatic actuator utilizes an advanced rack-and-pinion transmission mechanism, delivering high transmission efficiency, smooth operation, and rapid response times. The actuator comes standard with GT, AT, SR, or ST series single-acting or double-acting pneumatic units; depending on specific process requirements, users may select between "Air-to-Close" (FO/FC) or "Air-to-Open" (FC/FO) operating modes. Double-acting actuators maintain their current valve position in the event of air supply failure, making them suitable for continuous production processes where maintaining specific process conditions is critical. Single-acting actuators automatically return to either the open or closed position upon loss of air supply, making them ideal for safety interlock and protection applications. The standard air supply pressure range is 0.4 to 0.7 MPa; the air supply ports support various specifications, including G1/4", G1/8", G3/8", and G1/2"; and the applicable ambient temperature range is -20°C to +90°C.

III. Installation and Maintenance Guidelines

3.1 Installation Precautions

Before installing the valve, carefully inspect the appearance of all components to ensure there is no damage from transport. For clamp connections, use a specialized clamping tool to ensure the connection is secure and the seal is reliable. The air supply lines must be clean and free of impurities; it is recommended to install an air filter-regulator at the air inlet to protect the actuator and extend its service life.

The actuator should be installed in a dry, well-ventilated environment, avoiding prolonged exposure to humid or corrosive atmospheres. Appropriate sealing materials should be used for air supply connections to ensure a leak-free seal. Wiring for electrical accessories (such as solenoid valves, positioners, etc.) must comply with applicable explosion-proof or ingress protection (IP) rating requirements.

3.2 Routine Maintenance Recommendations

Regularly check the actuator's air supply pressure to ensure it remains within the normal operating range (0.4–0.7 MPa). Inspect the air supply connections and piping for any leaks. Observe the valve's operation to ensure it moves smoothly and freely, without any sticking or abnormal noises. Periodically inspect the condition of the sealing components and replace them if necessary.

When disassembling and cleaning the valve, avoid using hard tools to scrape the sealing surfaces, as this may compromise sealing performance. After cleaning, inspect the integrity of the PTFE seals; if any wear, aging, or deformation is detected, replace them immediately. During reassembly, ensure that all fasteners are tightened to the appropriate torque specifications to prevent leaks.

3.3 Troubleshooting and Remediation

**Symptom** | **Possible Cause** | **Remedial Action**

Valve fails to open | Insufficient air supply pressure / Solenoid valve malfunction | Check air supply pressure / Check power supply to solenoid valve

Leakage at sealing surface | Damaged seal / Impurities lodged in valve | Replace seal / Remove impurities

Sluggish operation | Insufficient air supply pressure / Actuator malfunction | Adjust air supply pressure / Repair or service actuator

Abnormal noise or vibration | Improper installation / Moisture in air supply / Impurities present | Reinstall valve / Dry air supply / Remove impurities

Thanks to its exceptional hygienic performance, convenient maintenance features, and reliable automated control capabilities, this product has become a core component in fluid control systems across industries such as food processing, pharmaceuticals, dairy production, and fine chemicals. Selecting the appropriate valve specifications and configurations—and adhering to proper installation and maintenance protocols—ensures the stable operation of production lines and the safety and quality of the final products.
