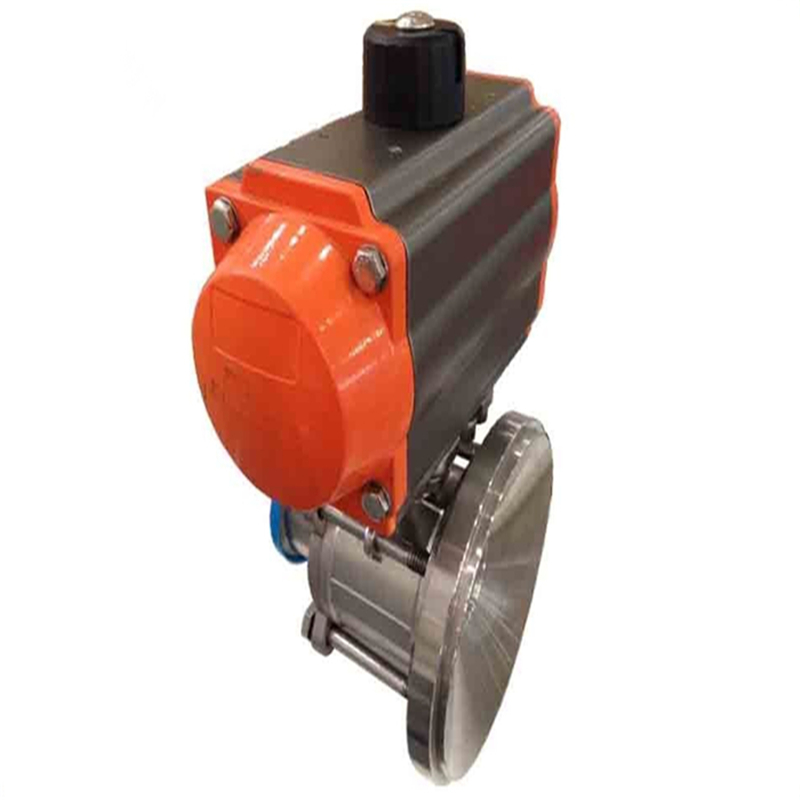

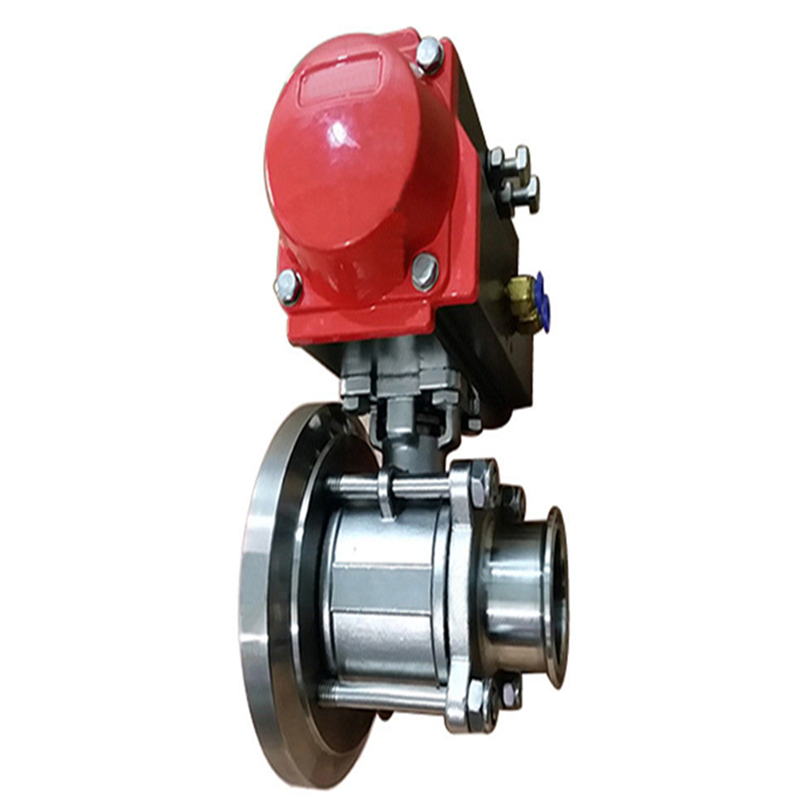

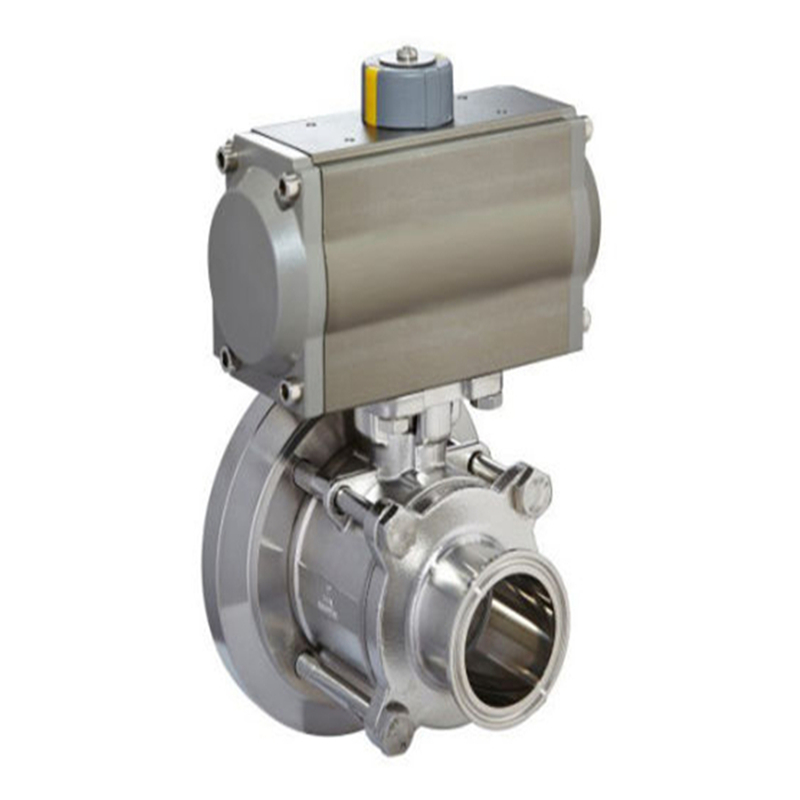

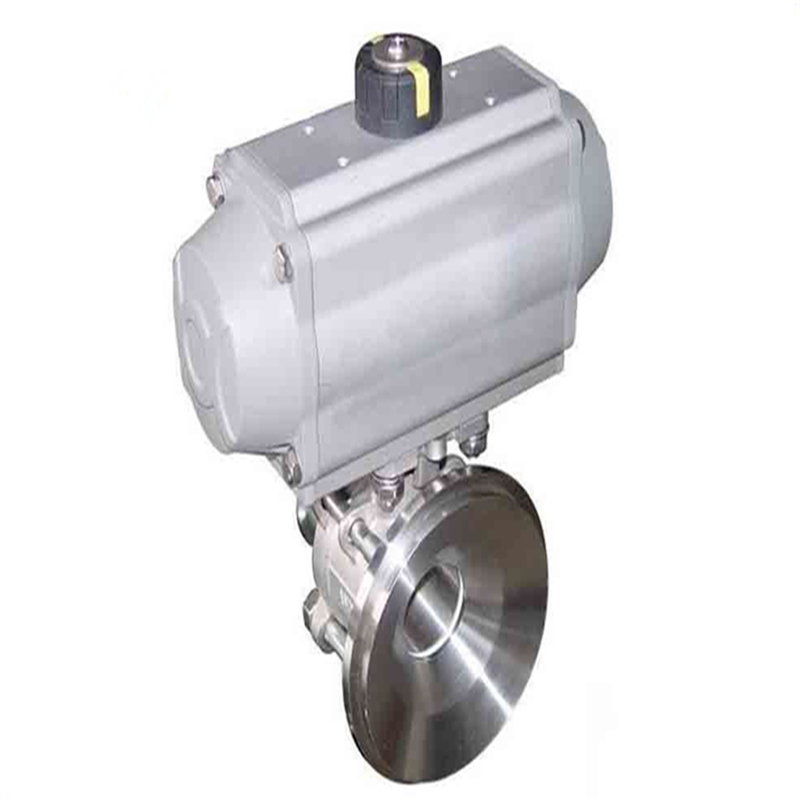

Sanitary 3-Piece Tank Bottom Ball Valve (Stainless Steel), with Aluminum Alloy Pneumatic Actuator

Introduction to and Applications of Stainless Steel Sanitary Three-Piece Tank Bottom Ball Valves

I. Product Overview

The Stainless Steel Sanitary Three-Piece Tank Bottom Ball Valve is a critical fluid control component specifically designed for industries with extremely high sanitary requirements—such as food processing, pharmaceuticals, dairy, beverages, and bioengineering. This valve features a three-piece structural design, comprising three main sections—the valve body, valve cover, and valve core—which are joined via bolts to form a complete, sealed system. This structural design offers exceptional convenience during installation, maintenance, and cleaning, while simultaneously ensuring superior sealing performance and reliable operational stability.

A core feature of the three-piece tank bottom ball valve is its unique mounting method: the valve is installed directly at the bottom of a tank or vessel, enabling functions such as bottom draining, material discharge, and sampling. This design is particularly well-suited for process applications requiring the complete evacuation of tank contents to prevent material residue. It effectively guards against product cross-contamination and bacterial proliferation, thereby meeting the requirements of international sanitary standards such as GMP and FDA.

The valve body is constructed from high-quality stainless steel materials (e.g., 304, 316L), and its inner surface undergoes a precision polishing treatment to achieve a surface roughness of Ra ≤ 0.4μm, fully satisfying the requirements for sanitary fluid transport. The valve ball features a full-bore design, minimizing fluid resistance and facilitating CIP (Clean-in-Place) and SIP (Sterilize-in-Place) operations; it serves as an essential piece of equipment for modern biopharmaceutical and food processing enterprises seeking to implement automated production control.

II. Key Structural Features and Advantages

2.1 Three-Piece Structural Design

The three-piece structure is one of the most prominent design features of this valve. Compared to traditional two-piece or one-piece ball valves, the three-piece structure offers the following significant advantages:

Ease of Maintenance: The valve's three main components can be quickly disassembled and reassembled. When the valve requires repair or the replacement of sealing components, there is no need to remove the entire valve assembly from the piping system; instead, on-site maintenance can be performed simply by loosening the connecting bolts, thereby significantly reducing downtime and maintenance costs. Superior Sealing Performance: The three-piece structure incorporates a multi-seal design, featuring high-quality sealing rings positioned between the valve body and bonnet, as well as between the valve stem and packing. This ensures reliable sealing performance under various operating conditions, effectively preventing media leakage.

High Structural Strength: The three-piece design enhances the overall structural robustness of the valve, enabling it to withstand higher operating pressures and temperature fluctuations, making it suitable for a wide range of complex industrial environments.

2.2 Sanitary-Grade Materials and Surface Treatment

Stainless Steel Selection: The valve body and critical components are constructed from SUS304 or SUS316L stainless steel. Thanks to its lower carbon content and higher molybdenum content, 316L stainless steel offers superior corrosion resistance, making it particularly suitable for environments involving media containing chloride ions or acidic components.

Precision Polishing: The internal cavities and fluid channels of the valve undergo electrolytic or mechanical polishing processes, with surface roughness controlled within the range of Ra 0.4μm to Ra 0.8μm. These smooth internal surfaces not only minimize the risk of media residue accumulation and bacterial proliferation but also reduce flow resistance losses during fluid transport.

Food-Grade Sealing Materials: All sealing components in contact with the media are manufactured using food-grade or pharmaceutical-grade materials—such as Polytetrafluoroethylene (PTFE), Fluorocarbon Rubber (FKM), and Silicone Rubber (VMQ). These materials exhibit excellent temperature resistance, chemical stability, and biocompatibility, fully complying with FDA and USP Class VI standards.

2.3 Tank-Bottom Mounting Features

Complete Drainage: The tank-bottom ball valve is installed at the lowest point of the vessel, ensuring that the contents within the tank are completely drained without leaving any dead spaces. This feature is of critical importance for the recovery and utilization of high-value products, such as biopharmaceutical raw materials and precision chemicals.

Ease of Cleaning and Sterilization: The valve's mounting position facilitates the natural flow of cleaning fluids toward the valve outlet; when integrated with CIP/SIP systems, this configuration enables thorough cleaning and sterilization, thereby eliminating the risk of microbial contamination.

Sampling and Drainage Capabilities: The valve can be equipped with sampling valves or drainage devices to facilitate in-line sampling and periodic discharge of tank contents, thereby meeting the requirements for quality control and process monitoring.

III. Key Selection Points and Considerations

3.1 Selection of Specifications and Parameters

Nominal Diameter Selection: Select the appropriate valve nominal diameter based on the tank volume and process flow requirements. A diameter that is too large results in material waste and installation difficulties, while a diameter that is too small restricts flow and negatively impacts production efficiency. It is generally recommended to maintain the flow velocity within the range of 1–3 m/s.

Nominal Pressure Rating: Select the corresponding pressure rating based on the system's operating pressure. Sanitary ball valves typically offer various pressure ratings—such as 1.0 MPa, 1.6 MPa, and 2.0 MPa—from which to choose; it is imperative to ensure that the valve's rated pressure is no lower than the system's maximum operating pressure.

Connection Method: Tank-bottom ball valves offer various connection methods for attachment to the tank, including welded, clamp-type, and flanged connections. When making a selection, one must consider the tank's material, wall thickness, and the ease of installation and maintenance. Clamp-type connections are the most convenient for assembly and disassembly, making them suitable for applications requiring frequent cleaning and maintenance.

3.2 Selection of Materials and Sealing Components

Valve Body Material: Select the appropriate valve body material based on the characteristics of the process medium and the operating environment. For general-purpose media, 304 stainless steel is a suitable choice; however, for media containing chloride ions or acidic components, 316L stainless steel is recommended. For highly corrosive media, it may be necessary to consider higher-grade alloy materials.

Sealing Material: The material used for sealing components directly impacts the valve's service life and operational reliability. The appropriate sealing material should be selected based on factors such as the medium's temperature, pressure, and chemical properties. PTFE is suitable for most media within a temperature range of -20°C to 200°C; graphite-filled PTFE is suitable for high-load operating conditions; and perfluoroelastomer (FFKM) is suitable for highly corrosive and high-temperature environments.

3.3 Actuator Configuration

Based on specific process control requirements, tank-bottom ball valves can be configured with various types of actuators:

Manual Operation: Suitable for small-diameter valves or applications requiring local, on-site operation; offers simple operation and lower cost.

Pneumatic Actuator: Characterized by rapid response speeds, making it suitable for systems requiring quick opening/closing cycles or automated control. Can be configured with either double-acting or single-acting (spring-return) actuator types.

Electric Actuator: Suitable for remote control applications and intelligent manufacturing systems; allows for precise adjustment of the valve opening to achieve accurate flow control. Valves equipped with electric actuators can be integrated into DCS or PLC systems to enable automated management.

IV. Maintenance and Care Recommendations

To ensure the long-term, stable operation of the stainless steel sanitary three-piece tank bottom ball valve, it is recommended to establish a standardized maintenance and care regimen:

Regular Inspection of Sealing Performance: During daily production operations, pay close attention to the valve to detect any signs of leakage; if issues are identified, address them immediately. Sealing components should be replaced in accordance with the manufacturer's recommended service intervals; even in the absence of visible leaks, periodic replacement is necessary to mitigate potential risks arising from material aging.

Standardized Cleaning and Sterilization Procedures: When performing CIP (Cleaning-in-Place) and SIP (Sterilization-in-Place) operations, strictly adhere to established process parameters to ensure that the temperature, concentration, and contact time of the cleaning fluids and sterilization media meet all requirements. Avoid using cleaning agents with excessively high chloride ion concentrations to prevent pitting corrosion on the stainless steel surfaces.

Establish Equipment Records: Create a comprehensive equipment dossier for each individual valve, documenting its installation date, operating hours, maintenance history, and records of spare parts replacement. This practice facilitates the development of a scientifically sound maintenance schedule and enables the timely detection and resolution of potential issues.

V. Conclusion

Thanks to its superior sanitary performance, reliable sealing capabilities, and ease of maintenance, the stainless steel sanitary three-piece tank bottom ball valve has become a standard component in industries with stringent hygiene requirements—such as food processing, pharmaceuticals, dairy production, and cosmetics. During the selection and application phases, factors such as media characteristics, process requirements, and maintenance accessibility should be carefully evaluated to ensure the valve maintains optimal operating performance throughout its entire service life. As smart manufacturing and Industry 4.0 continue to advance, intelligent sanitary valves—equipped with automated control functions and remote monitoring capabilities—are poised to become the mainstream trend in industry upgrades, providing enterprises with robust technical support to enhance production efficiency and ensure product quality.
