Application Scenarios for Stainless Steel Sanitary Weld-End Check Valves
Product Overview

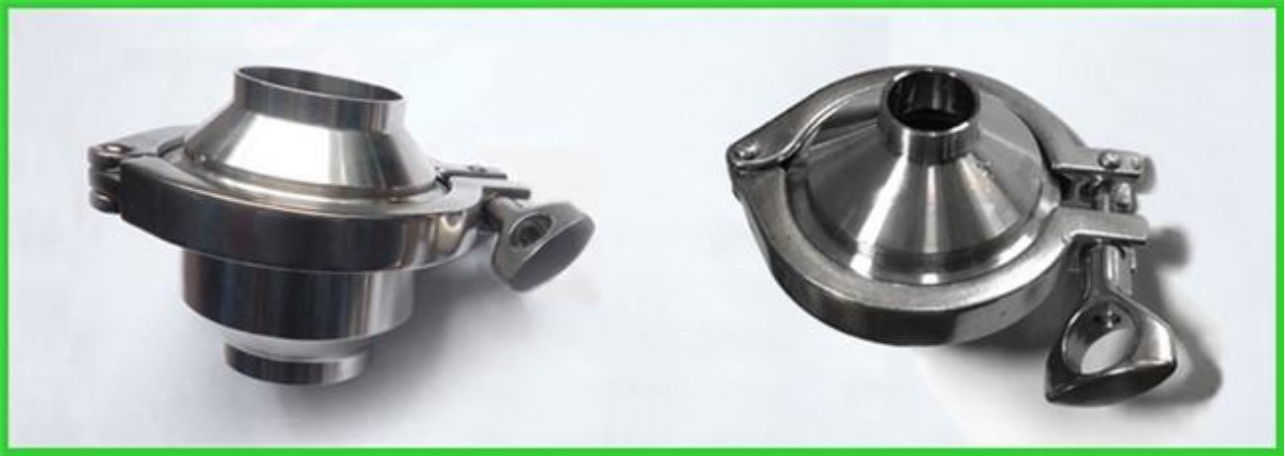

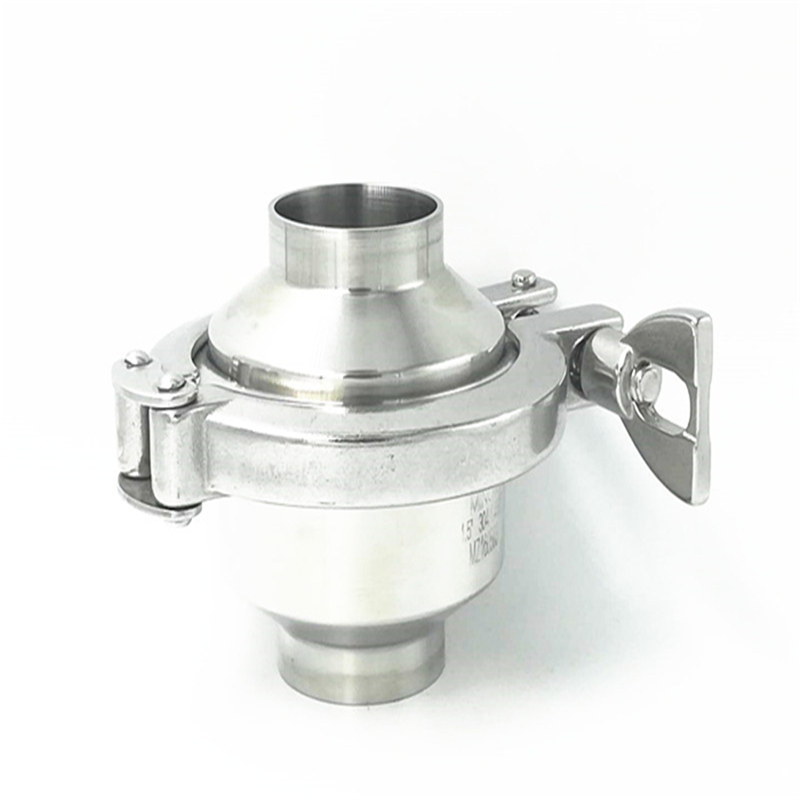

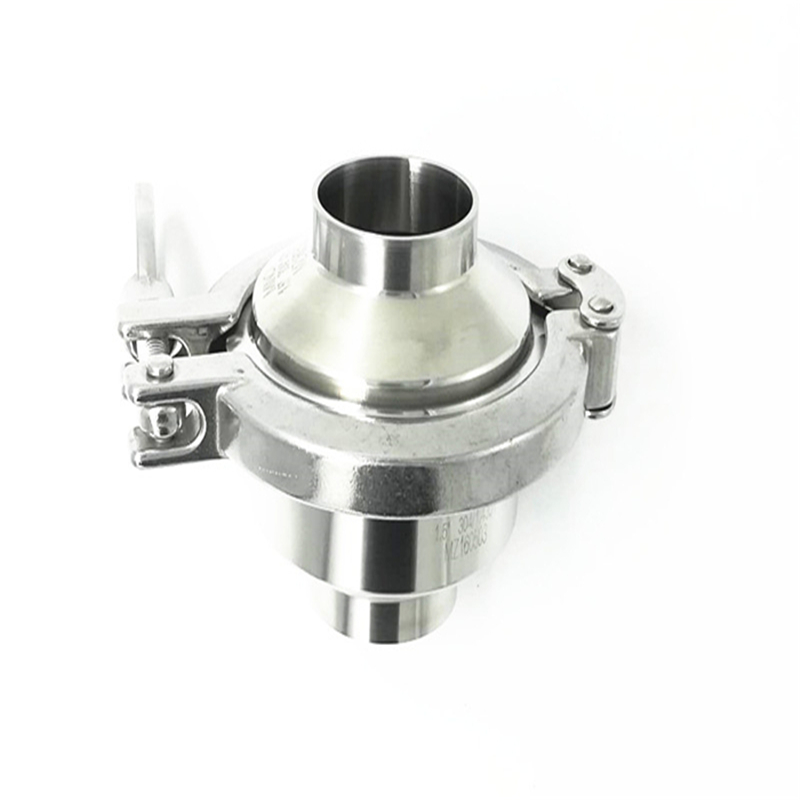

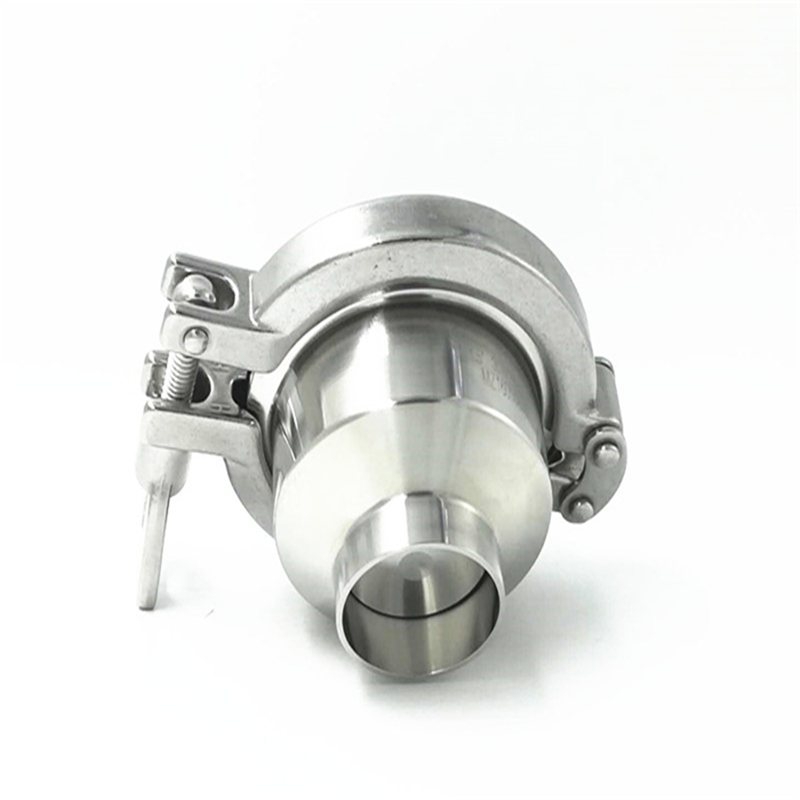

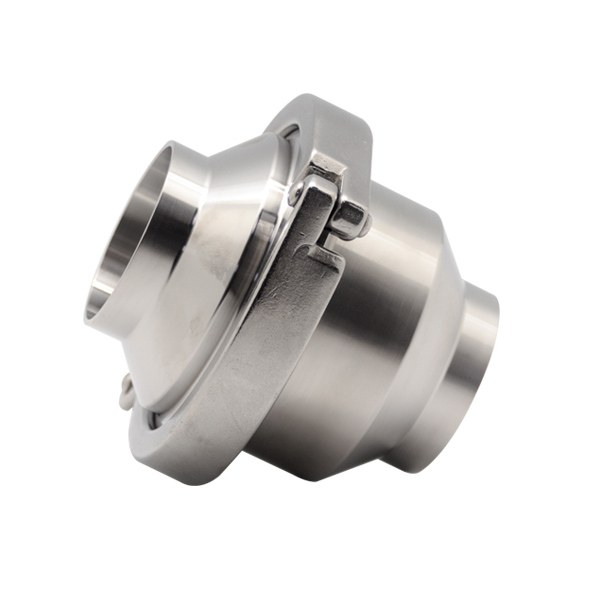

The Stainless Steel Sanitary Weld-End Check Valve—also known as a non-return valve, one-way valve, or backflow valve—is an automatic valve that opens and closes autonomously, relying solely on the force generated by the flow of the medium within the pipeline. Manufactured from high-grade stainless steel materials such as SUS304 and SUS316L, this valve is designed to meet the specific requirements of various media found in the food and biopharmaceutical industries. Both the internal and external surfaces of the valve undergo advanced polishing treatments to achieve the requisite surface finish precision; its smooth, seamless, and self-draining fluid pathway design makes it ideally suited for applications involving steam and Clean-in-Place (CIP) processes.
Technical Specifications and Standards
Basic Parameters
The technical parameters of the sanitary weld-end check valve are designed with full consideration for the rigorous demands of sanitary applications. Regarding nominal diameter, valve specifications range from DN15 to DN100 (with select models available up to DN200), and from 1/2" to 4" (or 8") in American standard sizes. The operating pressure range spans 0.1 to 1.6 MPa (PN16), and the applicable temperature range is -10°C to 150°C, enabling the valve to satisfy the operational requirements of the vast majority of sanitary fluid transport systems.
Connection Types and Standards
The valve offers a variety of connection options to accommodate diverse installation requirements, primarily including weld-end, quick-clamp, threaded, and wafer-style flanged connections. The product strictly adheres to universally recognized international standards—including ISO, DIN, IDF, SMS, and 3A—thereby ensuring global compatibility and interchangeability. Regarding sealing materials, options such as EPDM, NBR, Silicone, or FPM (Fluorocarbon Rubber) can be selected based on the specific characteristics of the medium and temperature requirements.
Product Features and Advantages
Structural Design Advantages

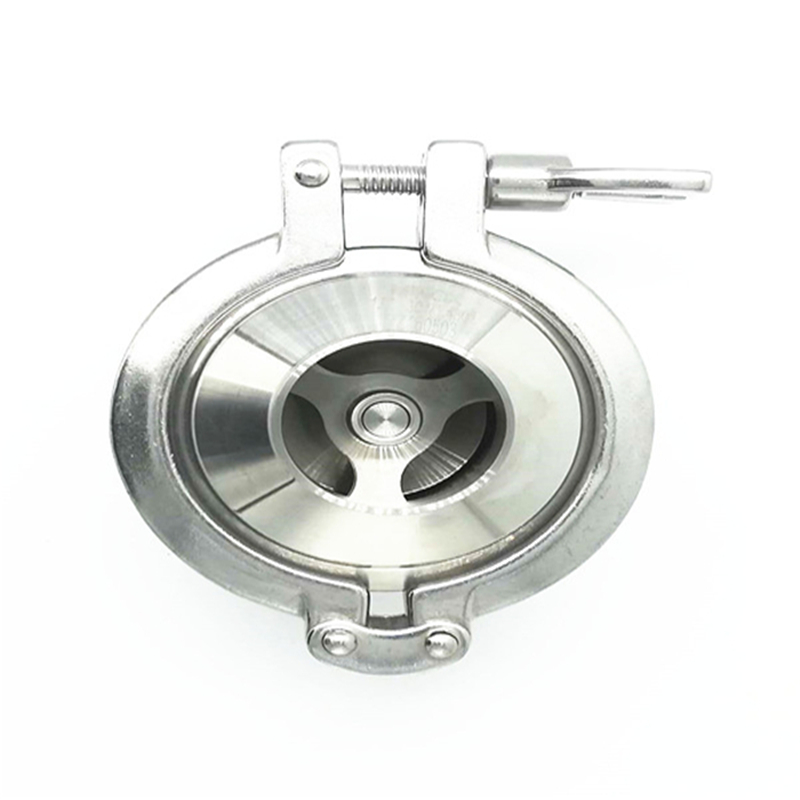

The stainless steel sanitary weld-end check valve boasts several outstanding advantages in terms of structural design. First, the valve features a small footprint, light weight, and compact structure, facilitating easy installation and use in equipment layouts where space is limited. Second, the valve disc employs a dual-plate design that allows for rapid, automatic closure driven by the elastic torque of the spring mechanism; this rapid-closure action... It effectively prevents media backflow. The valve body features a compact structural length and high rigidity, facilitating easy installation and maintenance. With a bore diameter matching that of the connecting pipeline, it ensures high flow rates and minimal flow resistance.
Hygienic Advantages
All steel components are manufactured from acid-resistant stainless steel, featuring a bright, clean surface finish that is both aesthetically pleasing and compliant with rigorous hygienic standards. The valve employs a conical sealing structure, ensuring reliable sealing performance and a long service life. The valve disc incorporates a sliding guide mechanism for sensitive and responsive seating; furthermore, the spring-loaded return design ensures precise and reliable opening and closing operations. This design not only guarantees sealing integrity but also ensures the valve's stable and reliable operation; as no manual intervention is required, the valve's automatic opening and closing capabilities result in exceptionally high operational stability.
Working Principle
The working principle of the sanitary-grade weld-end check valve is based on the mechanism of fluid pressure differentials. When the fluid pressure beneath the valve disc exceeds the pressure above it—plus the force exerted by the spring—the check valve disc automatically opens, allowing the media to flow in the forward direction. When the pressure above and below the valve disc reaches equilibrium, the valve automatically closes under the influence of the spring force. Should reverse pressure occur, the increased back-pressure acts upon the valve disc, driving it to a fully closed position and thereby effectively preventing media backflow. This automatic opening and closing mechanism effectively prevents liquid backflow, safeguarding the integrity of equipment such as pumps and drive motors, while simultaneously preventing potential safety hazards.
