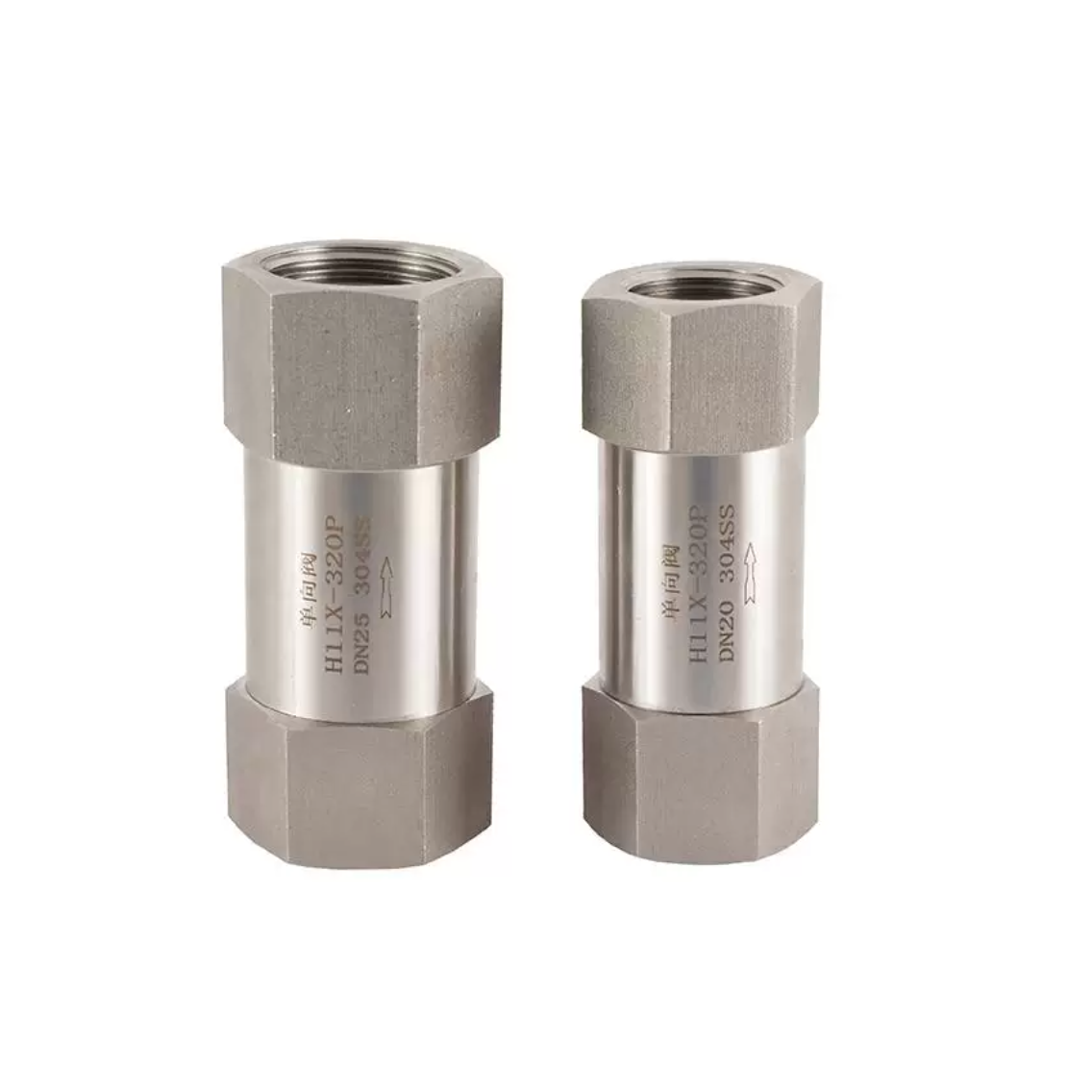

Stainless Steel BSP Internal Thread Check Valve
A stainless steel internally threaded check valve is a common fluid control component belonging to the check valve category; its primary function is to prevent backflow of the medium and ensure that the fluid flows unidirectionally in the intended direction.
Working Principle
The core working principle of a check valve is based on spring loading or gravity. When the medium flows in the forward direction, the valve disc opens under the force of fluid pressure, allowing the medium to pass through smoothly. Conversely, when the fluid reverses direction or the pressure drops, the valve disc automatically returns to its original position—driven by spring force or gravity—firmly sealing the valve port and thereby effectively preventing the medium from flowing backward. This automatic opening and closing mechanism requires no manual intervention, enabling intelligent control of fluid flow.
Key Features
The stainless steel construction endows this valve with excellent corrosion resistance and mechanical strength. Compared to standard carbon steel valves, the stainless steel internally threaded check valve can operate stably over long periods in harsh environments—such as those involving moisture, acids, or alkalis—resulting in a significantly extended service life. The internally threaded connection method ensures quick and easy installation and removal, eliminating the need for complex welding processes; this makes it particularly suitable for piping systems that require frequent maintenance. Furthermore, the stainless steel material exhibits excellent resistance to high temperatures and high pressures, making it suitable for a wide variety of industrial applications.
Typical Applications
This valve is widely utilized in fields such as water treatment equipment, gas pipelines, chemical transport systems, medical devices, food processing machinery, and HVAC systems. In water supply lines, the check valve prevents backflow within the pipe network—which could otherwise contaminate the water source—during water outages. When installed at the outlet of a pump, it effectively protects the pump body from damage caused by water hammer. In gas systems, it serves to prevent gas backflow, thereby mitigating potential safety hazards.
Selection Guidelines
When selecting a valve, it is essential to comprehensively consider factors such as working pressure, temperature range, medium characteristics, and connection dimensions. Standard stainless steel internally threaded check valves typically have a pressure rating ranging from 1.0 to 2.5 MPa, with an operating temperature range of approximately -20°C to +200°C. The connection dimensions must be compatible with the existing piping system; common specifications include various sizes ranging from 1/4 inch to 2 inches. Additionally, the appropriate valve disc design should be selected based on whether the medium contains impurities, ensuring that the valve operates reliably even under complex working conditions.
