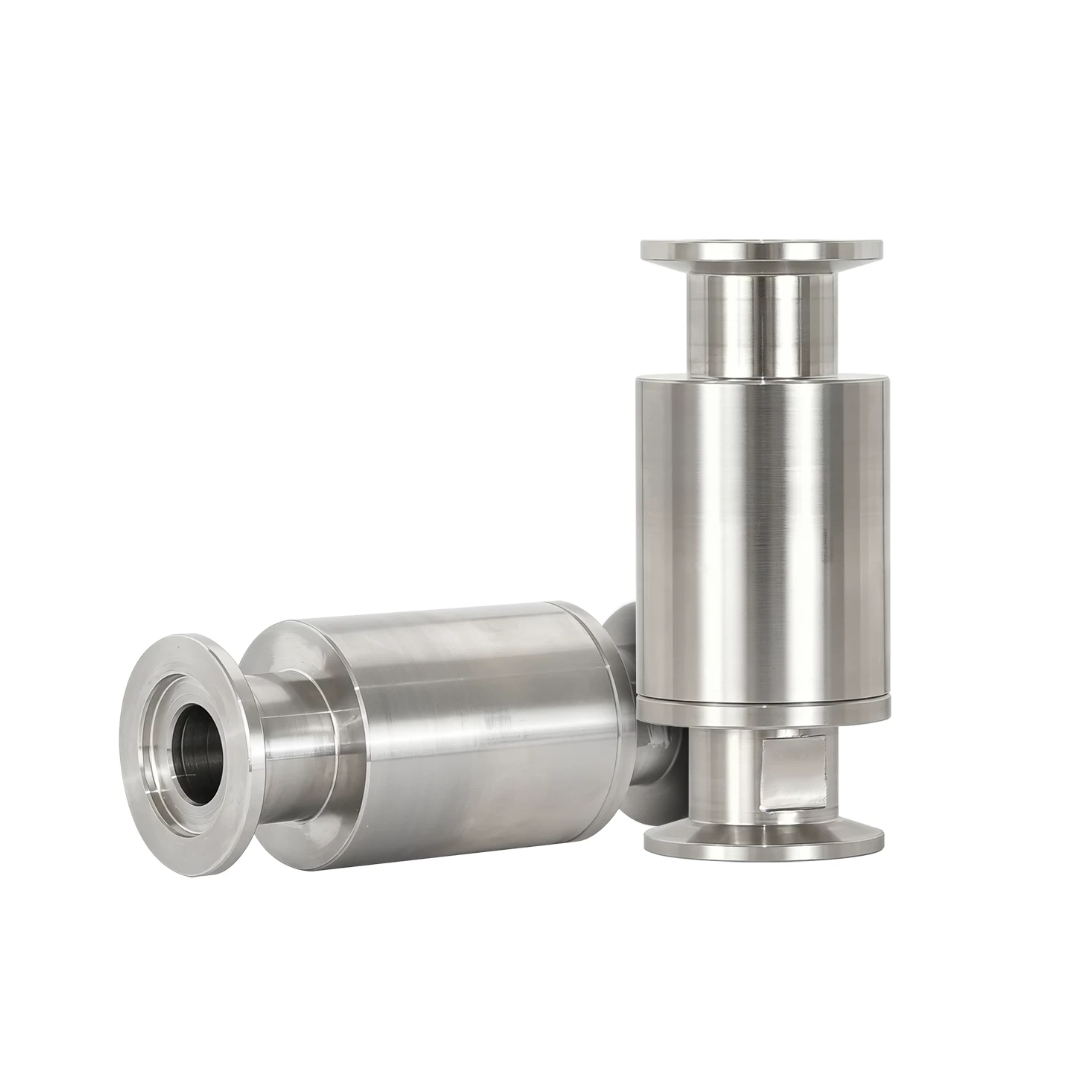

Stainless Steel Vacuum Pump Check Valve / Non-Return Valve / Exhaust One-Way Valve — Quick-Clamp Flange Fitting (K16-K)
Working Principle
The core function of the stainless steel vacuum check valve is based on the principle of unidirectional flow. When the medium within the system flows in the forward direction, the valve automatically opens under the influence of fluid pressure, allowing the medium to pass through smoothly. Conversely, when flow ceases or backflow occurs, the valve disc rapidly closes—driven by both spring force and the weight of the medium itself—thereby effectively preventing reverse flow. This mechanism of automatic opening and closing requires no external power source, relying entirely on fluid dynamics principles to ensure the continuous and stable operation of the system.
Key Features
Material Advantages: Constructed from high-quality stainless steel materials (such as 304, 316, 316L, etc.), offering exceptional corrosion resistance. It maintains stable physical and chemical properties across a wide range of corrosive media and harsh operating environments, thereby extending the valve's service life and reducing maintenance costs.
Vacuum Suitability: Specifically optimized for vacuum systems, featuring excellent sealing capabilities and an extremely low leakage rate. It is capable of withstanding pressure fluctuations within high-vacuum environments, ensuring the stable maintenance of the system's vacuum level.
Structural Design: Features a rationally designed flow channel that minimizes fluid resistance and pressure drop. The valve disc operates with agility and rapid response, ensuring smooth, shock-free opening and closing, as well as low noise levels during operation. Its compact structure facilitates easy installation and accommodates various connection methods (such as flanged, welded, etc.).
High Reliability: Manufactured using precision machining and subjected to rigorous quality control to ensure consistent, high-level performance even under demanding operating conditions. The sealing pair is constructed from wear-resistant and corrosion-resistant materials, guaranteeing durable and reliable sealing performance.
Application Fields
Stainless steel vacuum check valves are widely utilized in the following fields:
Vacuum Pump Systems: Protect vacuum pumps from damage caused by backflowing media, thereby extending the service life of the pump body.
Vacuum Piping Systems: Prevent vacuum loss during system shutdowns and maintain stable vacuum levels within the pipelines.
Laboratory Equipment: Provide reliable fluid control within various types of vacuum experimental apparatus.
Semiconductor Industry: Used in vacuum transport systems for high-purity gases.
Food and Pharmaceutical Industries: Meet fluid control requirements that comply with strict sanitary standards.
Chemical Industry: Provide safety protection against corrosive media.
Selection Considerations
When selecting a stainless steel vacuum check valve, the following factors should be taken into account:
Nominal Pressure and Vacuum Level: Ensure the valve can withstand the system's maximum operating pressure and meet its specific vacuum requirements.
Nominal Diameter: Select the appropriate valve size based on the pipeline dimensions and flow rate requirements.
Operating Temperature: Verify that the valve material is compatible with the temperature range of the media.
Media Characteristics: Select the appropriate valve body material and sealing materials based on the media's properties, such as corrosiveness and viscosity.
Connection Method: Choose the suitable flange standard or welding method based on the specific piping system configuration.
Maintenance and Care
To ensure the long-term, stable operation of the stainless steel vacuum check valve, the following maintenance tasks are recommended on a regular basis:
Inspect the valve disc to ensure it moves freely and check the sealing surfaces for any damage.
Clean out any impurities accumulated within the valve body to prevent jamming or blockage.
Inspect the condition of the sealing components and replace them promptly if necessary.
Avoid operating the valve for extended periods under extreme working conditions.
With their superior corrosion resistance, reliable sealing performance, and stable operating characteristics, stainless steel vacuum check valves have become the preferred choice for fluid control within vacuum systems. Proper selection, correct installation, and routine maintenance are essential for ensuring the safe and efficient operation of any vacuum system.
