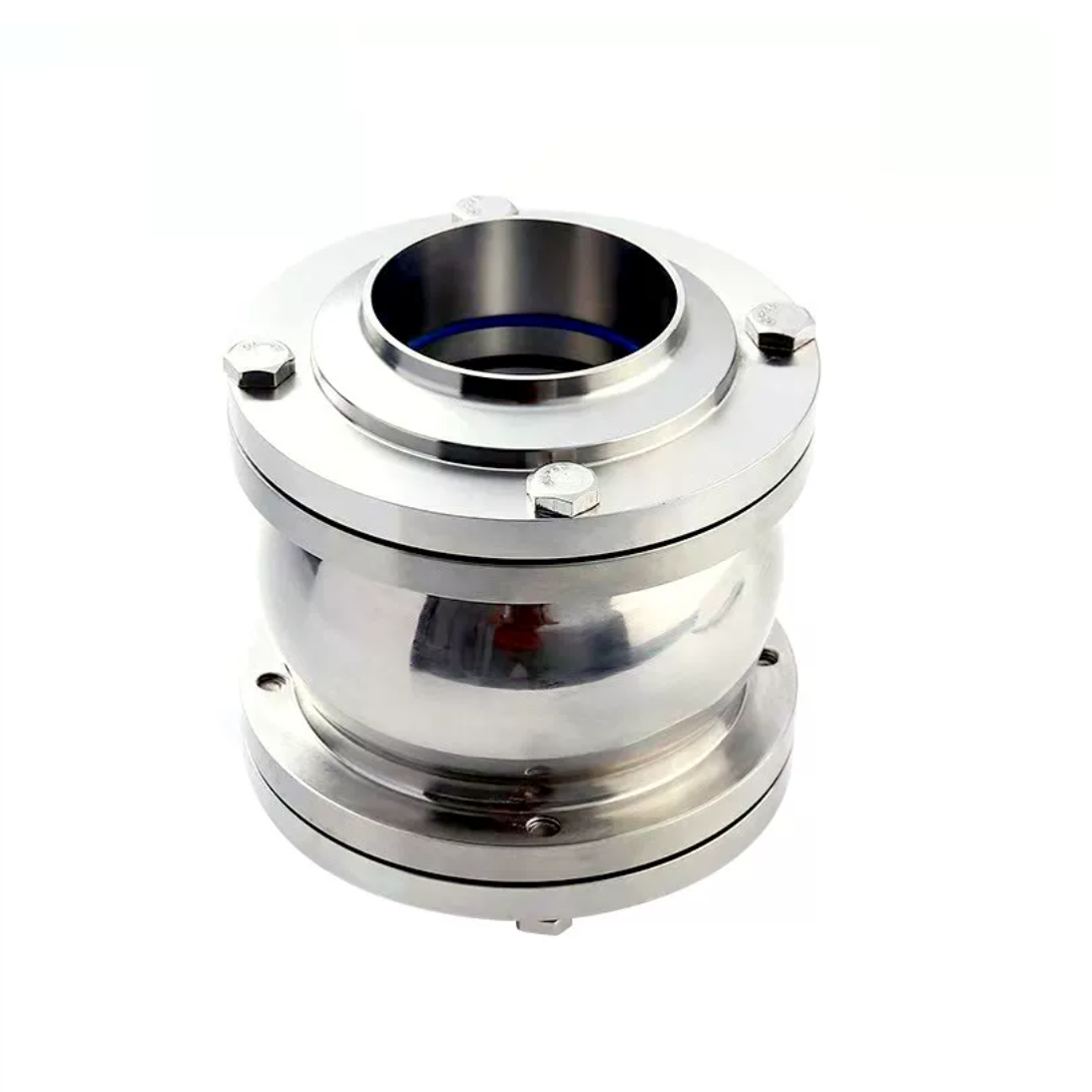

304/316L Sanitary Stainless Steel Three-Piece Welded Check Valve (Ball-Type)
Product Overview
The Stainless Steel Sanitary Union-Type Male Check Valve is a critical fluid control component specifically designed for industries with exceptionally high sanitary requirements—such as food, beverages, dairy products, pharmaceuticals, and bioengineering. Manufactured from high-grade SUS304 or SUS316L stainless steel, this valve is produced in strict compliance with international sanitary standards—including ISO, DIN, 3A, and SMS—thereby ensuring the highest levels of hygiene and safety throughout the entire fluid transfer process. Its unique union-type design, combined with a welded connection method, not only guarantees connection robustness and leak-tightness but also facilitates routine maintenance and cleaning; it stands as an indispensable core component in modern sanitary fluid system engineering.
The primary function of the union-type male check valve is to prevent fluid backflow, thereby protecting upstream equipment—such as pumps and compressors—from reverse shock, while simultaneously maintaining positive pressure within the system to prevent the ingress of contaminated air or external impurities into the pipeline. Operating solely on the pressure differential of the fluid itself, the valve opens and closes automatically without the need for external power sources, offering stable and reliable performance with low maintenance costs. In sanitary applications, the valve's internal flow channel features a smooth, dead-space-free design that effectively prevents media residue accumulation and bacterial proliferation, thereby meeting the rigorous requirements of CIP (Clean-in-Place) and SIP (Sterilize-in-Place) procedures.
Product Features and Advantages
Materials and Surface Treatment
This product utilizes high-quality austenitic stainless steel as its primary material; both the valve body and internal components are constructed from 304 or 316L stainless steel, offering exceptional corrosion resistance and mechanical strength. The 316L low-carbon stainless steel variant is particularly well-suited for environments with high chloride ion concentrations or applications requiring frequent high-temperature sterilization, effectively mitigating the risk of intergranular corrosion. All surfaces in contact with the process media undergo precision polishing, achieving a surface roughness (Ra) value ranging from 0.8μm to 1.6μm. When combined with an electrolytic polishing process, this treatment creates a dense passivation film on the metal surface, significantly enhancing corrosion resistance while yielding a mirror-like finish that minimizes microbial adhesion and fluid resistance. The valve's exterior surfaces feature either a brushed or mirror-polished finish, offering a refined and durable aesthetic that meets the visual and hygienic management standards of modern production facilities.
Innovative Structural Design
The Union-Type Male Check Valve features an innovative modular structural design that separates the main valve body from the union connection components; a reliable connection is achieved through a precision conical seal and a clamp-locking mechanism. This design ensures that—when maintenance or seal replacement is required—there is no need to cut the pipeline or utilize welding equipment; the valve can be rapidly disassembled simply by loosening the clamp, thereby drastically reducing maintenance time and costs. The valve disc employs a precisely balanced swing-type or spring-assisted design, ensuring sensitive opening even at extremely low flow rates. This design minimizes fluid resistance and pressure drop, effectively reducing energy consumption. Furthermore, the valve disc's hinge axis features an eccentric design; when the flow of media ceases, the disc automatically closes under the force of gravity, ensuring reliable backflow prevention.
Hygienic Standard Certification
This product is designed and manufactured in strict compliance with numerous international hygienic standards, having obtained various authoritative certifications including 3A, SMS, and ISO. All sealing components are fabricated from food-grade EPDM or silicone materials, meeting the stringent requirements of FDA and USP Class VI standards. With a temperature resistance range spanning from -30°C to +180°C, these materials are capable of accommodating the diverse temperature requirements of a wide variety of process media. The valve interior features a "dead-space-free" design, where all flow channel transitions are connected via large-radius arcs to prevent material accumulation and bacterial proliferation. The valve body is equipped with pressure relief and vent ports; an optional dedicated SIP (Steam-in-Place) interface is available to ensure that sterilization steam fully penetrates every internal corner of the valve. The union connections utilize a sanitary clamp design, and the sealing surfaces feature a fully encapsulated structure—ensuring the gasket remains isolated from the external environment—thereby completely eliminating potential contamination risks.
Ease of Installation and Maintenance
The installation process for the union-type male check valve is simple and rapid, allowing for connection to the piping system via either welding or clamping methods. During welded installation, the union design allows the union end to be welded onto the pipe first; the main valve body is then installed only after the weld has cooled, effectively preventing high welding temperatures from damaging the valve's seals and precision components. For scenarios requiring frequent maintenance, the clamp-connected union components enable rapid disassembly and reassembly, reducing maintenance time from the several hours typically required for traditional welded valves to just a few minutes. The valve's design prioritizes maintenance convenience; critical seals, springs, and other wear parts can be replaced quickly, allowing routine maintenance to be completed without the need for specialized tools. When selecting a valve model, it is essential to comprehensively consider system operating pressure, media temperature, media characteristics (such as corrosiveness, viscosity, and solid content), as well as available installation space and maintenance requirements. For systems handling ambient-temperature clean water, standard EPDM seals combined with SUS304 material typically suffice; for high-temperature or highly corrosive media, the use of silicone or fluororubber seals paired with SUS316L material is recommended; and for pharmaceutical and bioengineering applications requiring frequent sterilization, priority should be given to high-temperature-resistant silicone seals and a full SUS316L material configuration. The choice of valve disc type should be determined based on media characteristics and minimum opening pressure requirements: the swing-disc type is suitable for vertical installations and applications with strict pressure drop limitations, while the spring-assisted type is ideal for horizontal installations or scenarios requiring a guaranteed minimum back pressure.
Application Fields and Typical Case Studies
Food and Beverage Industry
In food and beverage production, sanitary union-type male-end check valves are widely utilized within piping systems for conveying various liquid food products. In dairy production lines, these valves are installed on the return lines of pasteurization systems to prevent lower-temperature milk—following heat exchange—from flowing back into high-temperature zones, thereby ensuring the stability of the sterilization process and the consistency of product quality. During beer brewing, these valves are positioned in the piping between yeast propagation tanks and fermentation tanks; their check-valve function prevents the backflow of yeast slurry, thereby preventing contamination of upstream equipment. In beverage blending systems, these valves protect concentrate storage tanks and mixing tanks from back-pressure surges generated by pumping systems, while also preventing the reverse flow of cleaning fluids during pipeline cleaning operations. On fruit juice production lines, these valves are paired with pulp pumps to effectively prevent the settling and clogging issues often associated with high-viscosity fruit pulp media during system shutdowns.
Pharmaceuticals and Bioengineering
The pharmaceutical industry imposes extremely stringent sanitary requirements on fluid handling systems, and union-type weld-end check valves play a pivotal role in the production of sterile preparations. In Water for Injection (WFI) distribution systems, these valves are installed at the inlets of branch lines leading to specific points of use; this prevents backflow from the point of use—which could contaminate the main distribution loop—thereby ensuring the consistent quality of water throughout the entire system. On production lines for large-volume parenterals (IV bags/bottles), these valves are used to isolate piping sections between different production batches, effectively mitigating the risk of cross-contamination. In bioreactor support systems, these valves are installed on the culture medium feed lines; their reliable check-valve function prevents the backflow of culture broth, thereby protecting the culture medium storage tanks from contamination. For ultra-low-temperature systems—such as those used in the production of blood products and vaccines—specialized valve configurations featuring low-temperature-resistant fluororubber seals are selected to ensure reliable opening and closing operations even in cryogenic environments reaching temperatures below -30°C.
Dairy and Baking
Sanitary check valves are indispensable across every stage of dairy processing. Raw milk receiving systems often employ multi-stage check valve configurations to prevent the improper flow of raw milk between storage tanks, thereby facilitating precise liquid level control and batch management. On production lines for cream and cheese, these valves are paired with centrifuges to protect these high-speed rotating devices from the fluid shock that can occur during system shutdowns. In the CIP (Clean-in-Place) cleaning loops of yogurt fermentation tanks, valves serve to prevent cleaning fluids and sanitizers from entering the product pipelines. In the baking industry—specifically within systems for conveying batter prior to dough fermentation and baking—valves prevent nutrient-rich media (containing ingredients such as eggs and sugar) from fostering bacterial growth during downtime, thereby ensuring food safety.
Installation, Usage Guidelines, and Precautions
Preparations Prior to Installation
Before installing a union-type male-end check valve, a comprehensive visual inspection of the valve is mandatory. Verify that the valve body surface is free of scratches, dents, or signs of corrosion, and ensure that all connecting components are intact and undamaged. Inspect the sealing components to confirm they are in good condition and that their material type and specifications align with the design requirements. Clean the valve's internal cavity and connecting end faces to remove any dust, grease, or other contaminants that may have accumulated during transport and storage. For valves that have been in long-term storage, it is recommended to perform a functional test prior to use; manually open and close the valve disc to verify that its movement is smooth and free of any jamming. Simultaneously, cross-reference the parameters listed on the valve's nameplate against the system design requirements—including key indicators such as nominal pressure, nominal diameter, material grade, and applicable temperature range—to ensure consistency.
Correct Installation Orientation
The union-type male-end check valve should be installed in a horizontal pipeline, with the axis of the valve disc maintained in a vertical position to ensure that the disc closes reliably under the force of gravity. The installation site should be selected within a section of the pipeline where the direction of fluid flow is clearly defined and pipeline vibration is minimal; specifically, it should be positioned at a distance of at least ten times the pipe diameter away from pump outlets or other equipment capable of generating turbulence. The union end of the valve should be oriented in a direction that facilitates maintenance operations, thereby reserving sufficient working space for future inspections and the replacement of sealing components. When performing a welded installation, it is imperative to first remove the internal sealing components and moving parts from the valve body, leaving only the valve body itself for the welding process; this prevents high temperatures from damaging precision components and sealing materials. Once the welding is complete, allow the pipeline system to cool down completely before reinstalling the sealing components and moving parts into their original positions.
