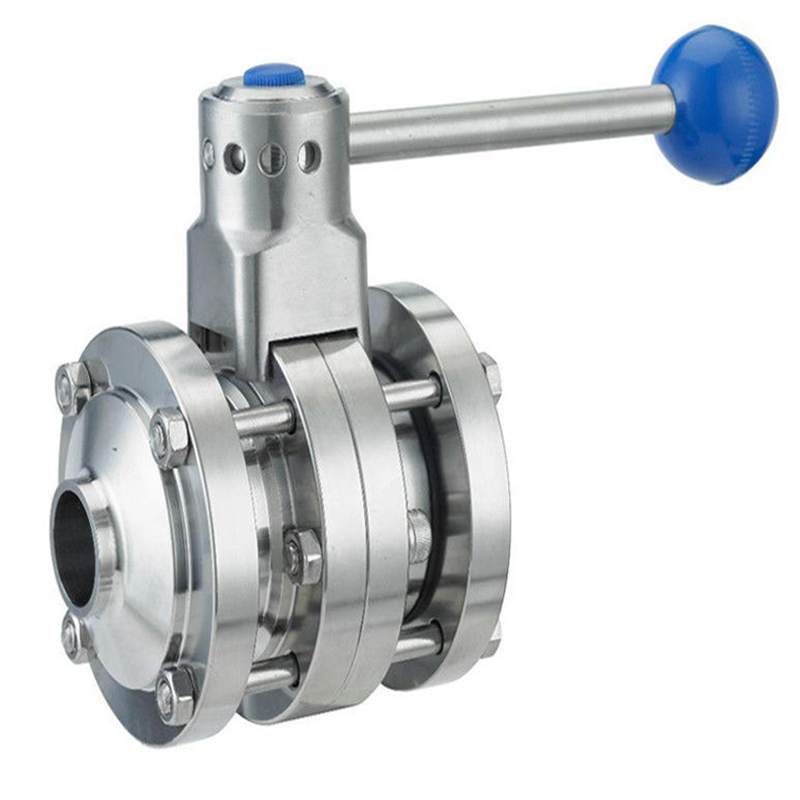

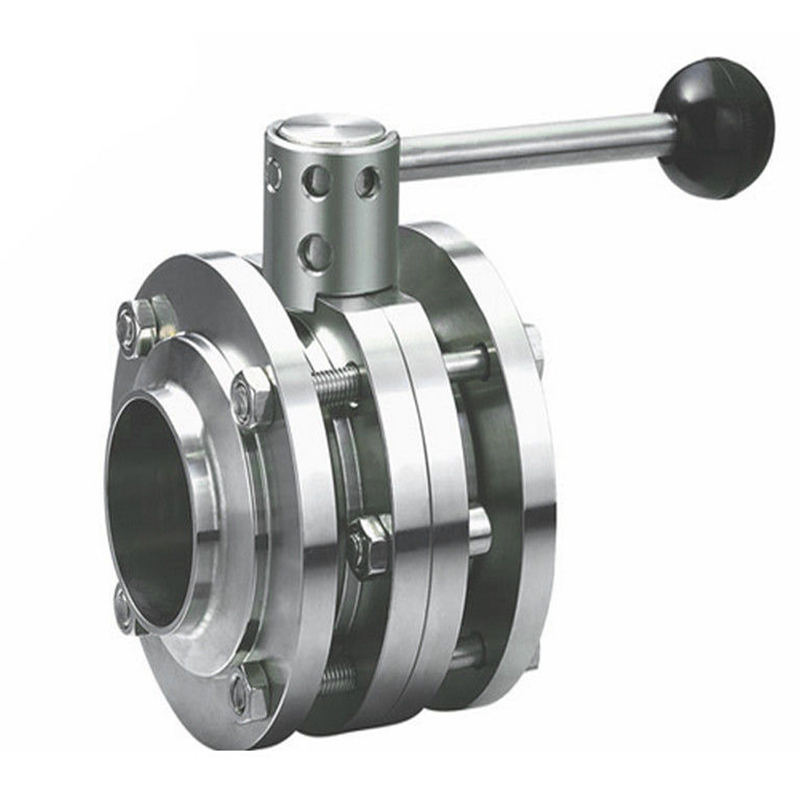

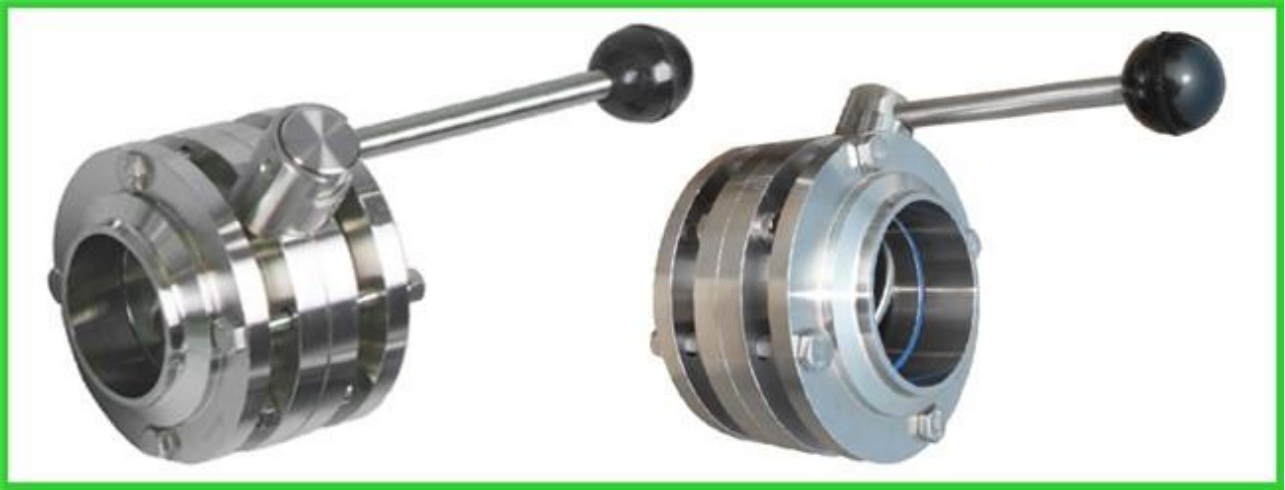

Stainless Steel Sanitary 3 Piece Welded Butterfly Valve (Manual Lever-Operated)

Specifications:

Introduction to Stainless Steel Sanitary Three-Piece Welded Butterfly Valves

Product Overview

The Stainless Steel Sanitary Three-Piece Welded Butterfly Valve is a high-performance fluid control valve specifically designed for industries with extremely stringent hygiene requirements—such as food processing, pharmaceuticals, dairy, beverages, and bioengineering. Constructed from high-quality stainless steel, the valve body consists of three primary components assembled together; pipeline connection is achieved through a precision welding process, resulting in a compact overall structure and exceptional sealing performance. The core design philosophy of this valve centers on meeting the rigorous demands of high-end sanitary applications regarding sterility, freedom from contamination, and zero residue, thereby ensuring that the fluid remains pure and safe throughout the entire transfer process.

The three-piece design is one of the defining characteristics of this valve type. Compared to traditional one-piece butterfly valves, the three-piece structure offers significant maintenance advantages. When the valve requires inspection or seal replacement, it is unnecessary to remove the entire valve assembly from the pipeline; instead, one need only disassemble the central section of the valve body to access and replace internal components. This greatly simplifies the maintenance process while significantly reducing downtime and maintenance costs. Furthermore, the three-piece structure facilitates higher manufacturing precision, ensuring a tighter fit between individual components and, consequently, enhancing the valve's overall reliability and service life.

The welded connection method is another key feature of the sanitary three-piece butterfly valve. By permanently joining the valve to the pipeline via butt welding, potential crevices and dead spaces—often associated with clamp or threaded connections—are eliminated, thereby effectively preventing bacterial proliferation and fluid residue accumulation. This connection method is particularly well-suited for sanitary production processes involving high-temperature, high-pressure steam sterilization, as well as Clean-in-Place (CIP) and Sterilize-in-Place (SIP) protocols. It is capable of withstanding frequent, extreme temperature fluctuations and the corrosive effects of chemical cleaning agents, ensuring long-term sealing integrity and sanitary compliance.

Technical Specifications and Parameters

Connection Types and Size Range

The Stainless Steel Sanitary Three-Piece Welded Butterfly Valve supports a variety of international standard connection types, including welded (H), quick-clamp (K), threaded (L), and flanged connections. Among these options, the butt-weld connection is the most common form for sanitary applications, complying with international sanitary standards such as DIN 11850/11851, ISO, IDF, SMS, and 3A. The nominal diameter range for these valves typically spans from DN15 to DN200 (1/2" to 8"); however, some manufacturers offer larger sizes—such as DN250—capable of meeting the piping configuration requirements of most sanitary fluid transport systems.

Materials and Pressure Ratings

The valve bodies are primarily constructed from two types of high-quality stainless steel: SUS304 and SUS316L. SUS304 stainless steel offers excellent overall corrosion resistance and machinability, making it suitable for most general sanitary applications. In contrast, SUS316L stainless steel provides superior resistance to pitting and intergranular corrosion, rendering it particularly well-suited for harsh environments involving high salinity, strong acids, or strong alkalis, as well as for high-temperature and high-pressure operating conditions. The valves typically feature a nominal pressure rating ranging from PN10 to PN16 (with some models reaching up to 1.6 MPa) and operate within a temperature range of -20°C to +180°C (varying depending on the specific sealing material used), thereby enabling them to accommodate the diverse process conditions found in food processing and pharmaceutical manufacturing.

Selection of Sealing Materials

The valve sealing rings are available in a variety of material options to accommodate diverse operating media and temperature requirements. EPDM (Ethylene Propylene Diene Monomer) offers excellent aging resistance and broad chemical compatibility, making it suitable for hot water, steam, and most water-based media, with an operating temperature range extending up to +150°C. NBR (Nitrile Rubber) features outstanding resistance to oil and fuels, making it ideal for the conveyance of oil-containing media. FPM/Viton (Fluorocarbon Rubber) boasts exceptional resistance to high temperatures and chemical corrosion, allowing for long-term use in environments reaching +200°C and involving highly corrosive media. Food-grade silicone is specifically designed for food and pharmaceutical applications; it complies with FDA 177.2600 certification requirements, ensuring safety in all instances where it comes into contact with the product. All sealing materials undergo rigorous quality inspections to ensure they are non-toxic, odorless, and free of extractables, thereby fully satisfying the stringent hygiene standards required for food and pharmaceutical grades.

Product Features and Advantages

Superior Hygienic Performance

From its inception, the design of the stainless steel sanitary three-piece welded butterfly valve prioritized hygienic safety above all else. The interior of the valve body is precision-machined using high-accuracy CNC lathes; the inner walls are smooth and free of dead spaces, with a surface roughness (Ra value) controlled to below 0.8μm—or even to a mirror-finish level. The valve's bore diameter aligns perfectly with the inner diameter of the pipeline; when opened, the streamlined valve disc aligns completely with the direction of fluid flow. This design prevents fluid stagnation and accumulation within the valve, thereby effectively inhibiting microbial growth and preventing product contamination. All metal components in contact with the media are manufactured from food-grade stainless steel. Their surfaces undergo electrolytic or mechanical polishing treatments to meet the surface roughness requirements stipulated by the GB/T 1031 standard, resulting in an aesthetically pleasing finish that resists dirt adhesion and facilitates easy cleaning and disinfection.

Reliable Sealing Performance

The valve's sealing system has been meticulously engineered to ensure a durable and reliable sealing effect under a wide range of operating conditions. Both the rubber sealing ring and the valve disc feature a precision-fit design; when the valve is closed, the sealing surfaces experience uniform pressure distribution, thereby preventing premature failure caused by localized stress concentrations. The valve body is precision-turned using high-accuracy CNC lathes, ensuring precise interchangeability among all valve components. Consequently, when seal replacement becomes necessary, the new sealing ring fits perfectly against the valve seat, rapidly restoring the valve's original sealing integrity. The valve stem features a specialized design incorporating high-strength nylon bushings; this significantly reduces friction between the stem and the valve body, ensuring smooth and effortless valve opening and closing operations while maintaining excellent stem sealing performance to prevent media leakage.

Convenient Operation and Maintenance

The valve offers a variety of actuation methods to meet the demands of diverse application scenarios, including manual operation (lever-type or pull-type handles), pneumatic actuators, and electric actuators. The manual option features an ergonomically designed handle constructed from high-strength stainless steel, capable of withstanding substantial operating torque without sustaining damage. The handle's operating range spans 0 to 90 degrees and can be locked at any 15-degree increment, providing precise flow regulation capabilities to satisfy the requirements for fine fluid flow control within industrial processes. Pneumatic and electric actuators enable automated control, integrating seamlessly with PLC or DCS systems to facilitate remote monitoring and programmable operation. The valve body features a detachable connection design; when maintenance is required, users need only loosen the connecting bolts on either side of the central body section to quickly disassemble the valve for internal inspection, cleaning, or seal replacement. This entire process is simple and rapid, minimizing production downtime to the greatest extent possible.

Extended Service Life

Prior to leaving the factory, every product undergoes rigorous strength and leak-tightness testing to ensure that each valve operates safely and reliably under its rated working conditions. Manufacturers typically select samples to undergo fatigue life testing—simulating no fewer than 10,000 cycles—to assess how the valve's performance changes during prolonged, frequent opening and closing operations, thereby verifying its service life and reliability. The valve's overall design takes into full account factors such as material fatigue, seal aging, and wear. By utilizing high-quality raw materials and advanced manufacturing processes, the design ensures that the valve maintains stable operation for many years under normal usage conditions. The valve's surface is polished to a high sheen; it is dust-resistant, free of sharp burrs, and smooth to the touch. This finish is not only aesthetically pleasing and practical but also minimizes the risk of dirt accumulation and bacterial growth, thereby indirectly extending the cleaning cycles and maintenance intervals for both the valve and the associated piping system.

Working Principle

The stainless steel sanitary-grade three-piece welded butterfly valve is a type of rotary valve; its opening and closing element is a circular disc-shaped "butterfly plate," which is connected to an external operating mechanism via a valve stem. Situated within the valve body's cylindrical flow channel, the butterfly plate executes a rotational movement ranging from 0° to 90° around its central axis. When the butterfly plate rotates to a position perpendicular to the pipeline's axis (0°), the valve is in a fully closed state; under the combined force of spring preload and media pressure, the sealing rings on both sides of the plate press tightly against the valve body, creating a reliable seal. Conversely, when the butterfly plate rotates to a position parallel to the pipeline's axis (90°), the valve is in a fully open state; at this point, the plate presents minimal obstruction to the fluid channel, allowing the fluid to flow through with virtually no resistance.

In the structural configuration of the three-piece welded butterfly valve, the valve body consists of three distinct sections: two end sections (connection ends) and a central section (active end). The central section houses the butterfly plate, valve stem, and sealing assembly, while the two end sections are welded directly to the corresponding pipelines. This design ensures that, when fully open, the valve exhibits a low flow resistance coefficient, thereby facilitating high-volume fluid transmission. Furthermore, when positioned at an opening angle between 15° and 70°, the valve demonstrates sensitive flow regulation capabilities, allowing it to function effectively as a control valve for modulating fluid flow rates and pressures. Due to the wiping action exerted by the butterfly disc on the valve seat's sealing surface during movement, this valve is also suitable for media containing suspended or semi-solid particles, demonstrating excellent adaptive sealing capabilities.

Application Fields

Food and Beverage Industry

Sanitary-grade, three-piece, weld-end butterfly valves are most widely utilized within the food and beverage industry. In the beer brewing process, these valves are employed to control the transfer of wort, mash, raw beer, and various additives. On dairy production lines, they facilitate the transfer and control of products such as pasteurized milk, UHT milk, yogurt, and cheese. In the production of fruit juices and soft drinks, they are used to regulate the flow of media including raw juice, juice concentrates, syrups, and carbonated water. Furthermore, in edible oil processing and confectionery/chocolate manufacturing, they are used to control high-viscosity media such as oils and syrups. All these applications demand valves with exceptional sanitary properties and reliable sealing performance to ensure both product quality and operational safety.

Pharmaceuticals and Bioengineering

In the pharmaceutical industry, sanitary-grade, three-piece, weld-end butterfly valves serve as critical components within biopharmaceutical equipment. These valves are utilized in the preparation of medicinal solutions, the transfer of purified water, Water for Injection (WFI) systems, steam distribution networks, and the control of various process gases. Given the pharmaceutical industry's extremely stringent requirements for sterility, the design and manufacturing of these valves must strictly adhere to GMP guidelines; consequently, all surfaces in contact with the product must be smooth, free of dead spaces, and easy to clean. The sealing materials used in these valves must successfully pass the extractables and leachables tests mandated by pharmacopoeias to ensure they exert no adverse effects on the quality of the pharmaceutical products. In the field of bioengineering, these valves are similarly employed for the transfer and control of biologically active substances, such as cell culture media, fermentation broths, and enzyme preparations.

Daily Chemicals and Fine Chemicals

In the daily chemical industry, sanitary-grade butterfly valves are utilized in the production processes of personal care products, including shampoos, body washes, skincare products, and cosmetics. In the fine chemical sector, these valves facilitate the transfer and control of chemical products such as paints, coatings, solvents, and resins; they are particularly well-suited for the production of water-based products and food-contact materials, where high sanitary standards are paramount. The availability of a diverse range of sealing materials allows these valves to meet the chemical compatibility requirements of various media, while their stainless steel construction provides robust protection against corrosion. Furthermore, this valve is widely utilized in applications with stringent water quality requirements—such as water treatment, pure water production, deionized water systems, and beverage blending systems.

Installation and Maintenance Guide

Pre-Installation Preparation

Prior to installing the stainless steel sanitary three-piece weld-end butterfly valve, carefully inspect the valve's exterior to ensure the valve body surface is free of defects such as scratches, dents, or corrosion. The sealing surfaces must be free of any scratches or contaminants to prevent internal leakage or compromised sealing performance. Thoroughly clean both the piping and the interior of the valve to remove any dust, metal shavings, rust inhibitors, or other contaminants that may have accumulated during transport and storage. Verify that the pipe end faces are flat and perpendicular, ensuring that the dimensions and angles of the weld joints comply with relevant standards. Additionally, cross-check the valve's specifications, model, pressure rating, and material composition against the design requirements to prevent installation failures or safety hazards resulting from incorrect valve selection.

Key Points for Welded Installation

Welded installation is a critical step in the installation process for sanitary three-piece butterfly valves, significantly impacting the valve's performance and service life. Before commencing welding operations, it is recommended to temporarily remove the valve's sealing components (particularly rubber-based seals) to prevent high welding temperatures from damaging the sealing materials. Position the valve body correctly within the pipeline, ensuring that the valve body's centerline is precisely aligned with the pipeline's centerline; excessive misalignment will compromise the valve's proper opening and closing functions, as well as its sealing performance. During welding, employ appropriate welding techniques and materials—typically stainless steel welding consumables (such as 308 or 316 stainless steel welding rods/wires) that are compatible with the valve body's material. Throughout the welding process, carefully control heat input to prevent overheating of the valve body, which could lead to deformation. It is advisable to utilize techniques such as symmetrical welding and multi-layer welding, and to perform necessary intermediate stress-relief treatments. Once welding is complete, allow the weld seams to cool completely to room temperature before proceeding with the installation of the seals and the commissioning of the valve.

Recommendations for Routine Maintenance

To ensure the long-term, stable operation of stainless steel sanitary three-piece welded butterfly valves, it is recommended to establish and adhere to a regular maintenance schedule. Routine inspections should include: a visual examination of the valve's exterior for any anomalies; verification that opening and closing operations are flexible and smooth; a check for any signs of media leakage; and confirmation that the actuator is functioning correctly. During every scheduled shutdown for maintenance, the valve should undergo a comprehensive internal inspection to remove accumulated deposits and scale, and to assess the condition of the seals, replacing them if necessary. The valve should be operated (opened and closed) periodically to prevent the valve stem and seat from seizing due to prolonged inactivity. For pneumatic or electric actuators, follow the equipment manufacturer's instructions for regular calibration and maintenance to ensure the accuracy of control signals and responsiveness. Before performing any maintenance operations, always verify that the associated pipeline has been depressurized and drained, and take all necessary safety precautions.

With its exceptional sanitary properties, reliable sealing performance, ease of operation and maintenance, and extended service life, the stainless steel sanitary three-piece welded butterfly valve has become the preferred choice for fluid control systems in sanitary-grade industries such as food processing, pharmaceuticals, dairy production, and beverages. With food safety regulations becoming increasingly stringent and consumer expectations regarding product quality constantly rising, market demand for this type of valve will continue to grow, and technical standards will undergo continuous upgrading and refinement.
