Sanitary Stainless Steel Pneumatic Welded Butterfly Valve with Aluminum Actuator

Introduction and Applications of Stainless Steel Sanitary Pneumatic Weld-End Butterfly Valves with Aluminum Actuators

I. Product Introduction

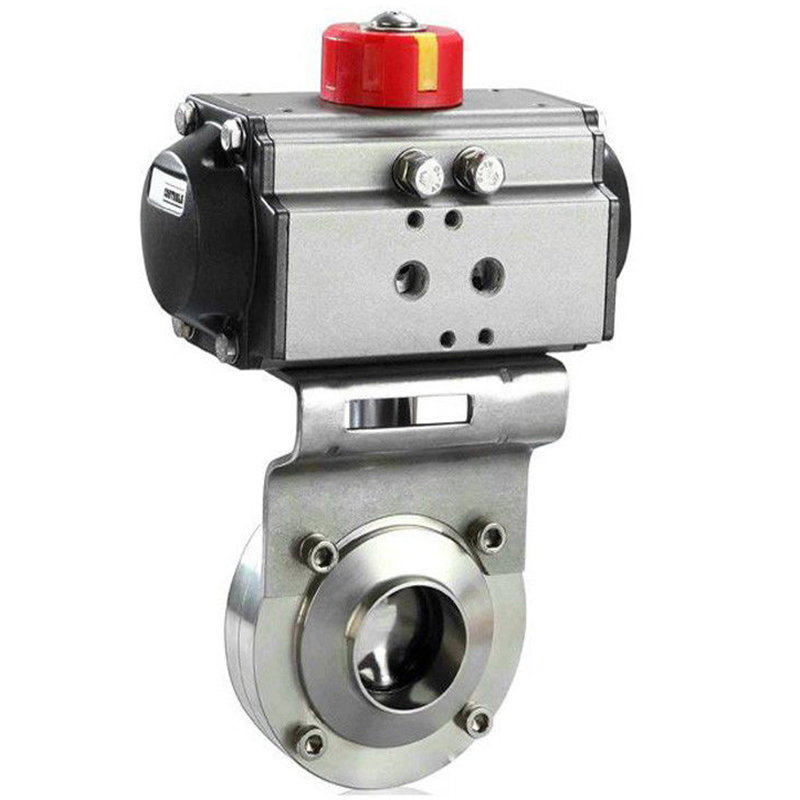

The Stainless Steel Sanitary Pneumatic Weld-End Butterfly Valve with Aluminum Actuator is a pneumatically controlled valve specifically designed for operating conditions requiring high sanitary standards. It utilizes high-quality stainless steel materials (SS304, SS316, 316L) as the primary body material, is equipped with an aluminum alloy pneumatic actuator, and achieves a seamless connection with the piping system via welding. Manufactured in strict compliance with international standards such as ISO, DIN, IDF, SMS, and 3A, the valve body features an internal surface treated with a standard electropolishing process. This results in a mirror-like finish that ensures cleanliness with no dead corners or areas for media accumulation, thereby effectively preventing potential risks of cross-contamination.

The pneumatic weld-end butterfly valve consists of two main components: the pneumatic actuator and the butterfly valve body. Utilizing compressed air as its power source, it enables rapid opening and closing as well as precise regulation of the valve. The weld-end connection method ensures superior sealing performance under high-temperature and high-pressure conditions, making it particularly suitable for clean fluid transport systems where the complete elimination of potential leakage hazards is critical. This valve is widely utilized in industrial sectors with stringent sanitary requirements—including food processing, pharmaceuticals, cosmetics, brewing and beverages, dairy products, and bioengineering.

II. Key Features

2.1 Exceptional Sanitary Performance

The interior of the valve body undergoes a high-precision electropolishing process, achieving a surface roughness of Ra ≤ 0.8μm. This smooth surface ensures unimpeded media flow and prevents the formation of any material accumulation zones. This design fully complies with the strict requirements of the FDA (U.S. Food and Drug Administration) and GMP (Good Manufacturing Practice), effectively inhibiting bacterial growth and preventing media residue, thereby providing a robust guarantee for the sanitary safety of the final product.

2.2 Rational Structural Design

Incorporating innovative design concepts, the valve features a compact structure and lightweight profile, facilitating easy installation and maintenance. The valve disc and seat are engineered with a precision-fit design, ensuring rapid opening and closing as well as flexible operation. The centerline structural design ensures that the valve disc maintains stable hydrodynamic characteristics at any degree of opening, allowing for precise and reliable flow regulation. The valve stem is constructed from stainless steel and paired with self-lubricating bearings, significantly reducing friction to ensure the valve opens and closes with exceptional ease and agility. 2.3 Excellent Sealing Performance

The valve utilizes FDA-certified, food-grade sealing materials, offering a variety of options including silicone rubber (VMQ), EPDM rubber, fluororubber (FPM), and PTFE. These sealing materials exhibit exceptional resistance to aging and corrosion, maintaining a stable sealing effect across a wide temperature range of -10°C to +150°C, thereby ensuring zero-leakage sealing under all operating conditions.

2.4 Flexible Connection Options

Welded connection is a core feature of this valve, enabling a permanent, zero-leakage link with the piping system through welding. This connection method is particularly well-suited for fluid transport systems involving high pressure, high temperature, highly corrosive media, or requirements for absolute cleanliness. The valve can be installed in any orientation; its convenient and rapid maintenance procedures effectively minimize system downtime and reduce maintenance costs.

2.5 Reliable Pneumatic Actuation

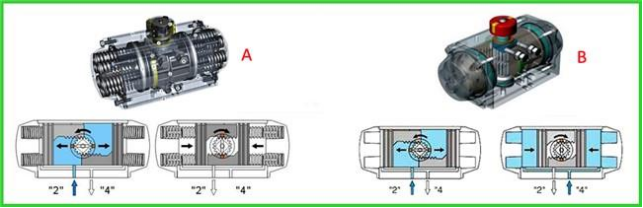

Equipped with high-quality aluminum alloy pneumatic actuators, the valve offers various models to choose from, including double-acting and single-acting (spring-return) configurations. These pneumatic actuators feature rapid response times and high control precision, enabling remote automatic control and seamless integration into industrial automation control systems. Standard accessories include air source treatment units, solenoid valves, limit switches, and other components, ensuring stable valve operation under a wide range of complex operating conditions.

With its superior sanitary performance, reliable sealing characteristics, flexible control methods, and broad adaptability, the Stainless Steel Sanitary Pneumatic Welded Butterfly Valve with Aluminum Actuator stands as a critical component in fluid control systems within modern food, pharmaceutical, dairy, and related industries. Proper model selection, standardized installation, and systematic maintenance will ensure the valve's long-term, stable operation under even the most demanding conditions, providing a reliable guarantee for industrial production.
