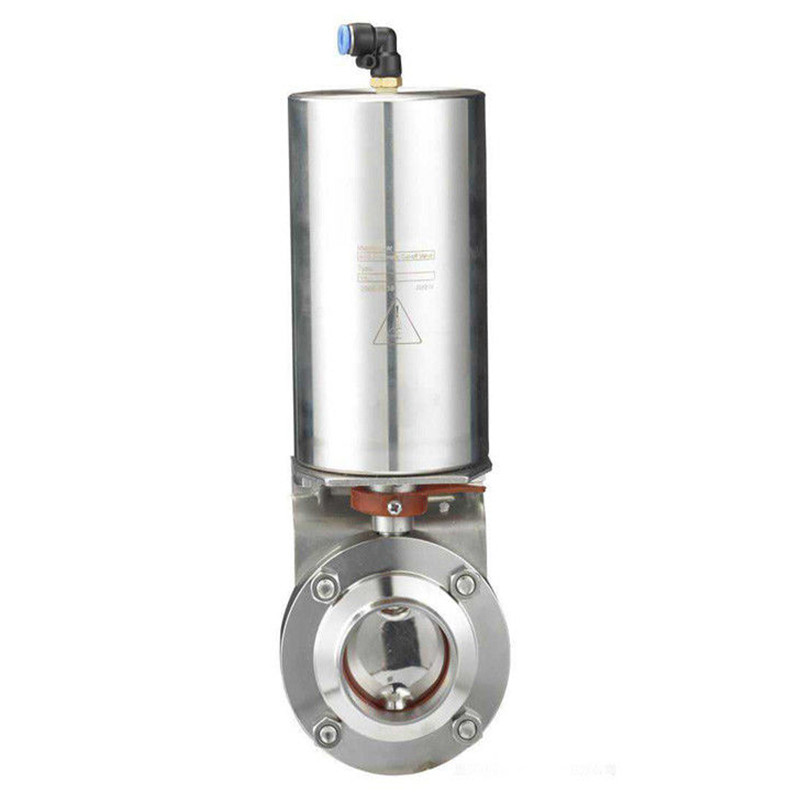

I. Product Overview

The Sanitary Stainless Steel Pneumatic Weld-End Butterfly Valve is a fluid control device specifically designed for industries with stringent hygiene requirements—such as food processing, pharmaceuticals, dairy, beverages, and bioengineering. Constructed from high-quality stainless steel and featuring a specially polished surface finish, this valve fully complies with the sanitary standards mandated by GMP and FDA regulations. The integration of a pneumatic actuator ensures rapid response times and precise control capabilities, while the weld-end connection method guarantees the overall leak-tightness and sterility of the system. As a critical component within sanitary piping networks, this valve plays an indispensable role in modern industrial production processes.

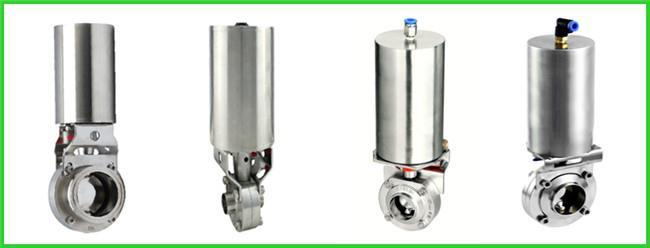

Structurally, the sanitary pneumatic weld-end butterfly valve consists primarily of five key components: the valve body, valve disc, valve stem, sealing ring, and pneumatic actuator. The valve body is manufactured using precision casting or forging techniques to ensure uniform wall thickness and dimensional accuracy. The valve disc features a symmetrical design, minimizing fluid resistance and facilitating flexible, smooth operation. The sealing ring is fabricated from food-grade silicone rubber or PTFE (Polytetrafluoroethylene), offering exceptional resistance to both corrosion and high temperatures. Typically, the pneumatic actuator is equipped with accessories such as solenoid valves, limit switches, and positioners to enable fully automated control functionality.

II. Key Technical Features

2.1 Materials and Surface Treatment

The valve body is constructed from either 304 or 316L stainless steel, both of which possess excellent corrosion resistance and mechanical strength. 304 stainless steel contains 18% chromium and 8% nickel; it offers robust overall performance and is suitable for most general operating conditions. 316L stainless steel features an additional 2–3% molybdenum content, endowing it with superior corrosion resistance in chloride-rich environments—making it particularly well-suited for use with media containing salts or chlorides, such as in the dairy and beverage industries. The valve's inner surface undergoes electrolytic polishing, achieving a surface roughness of Ra 0.5–1.6 μm. This effectively prevents media residue accumulation and bacterial proliferation, fully meeting the stringent cleanliness requirements for sanitary-grade products.

2.2 Sanitary Design Standards

The design of the sanitary pneumatic weld-end butterfly valve strictly adheres to international sanitary standards, including the U.S. 3-A Sanitary Standards, European EHEDG certification requirements, and Chinese GB/T standards. The valve features a comprehensive "dead-space-free" design; the internal flow channel within the valve body is smooth and streamlined, ensuring there are no stagnant zones where materials could easily accumulate. The valve stem seal employs a bidirectional sealing structure to prevent media leakage. Food-grade gaskets are installed at all valve connections to ensure the overall sealing integrity of the system. Furthermore, the valve is equipped with CIP (Clean-in-Place) and SIP (Sterilize-in-Place) capabilities, allowing for direct integration into cleaning and sterilization systems to complete cleaning procedures without the need for disassembly.

2.3 Pneumatic Control System

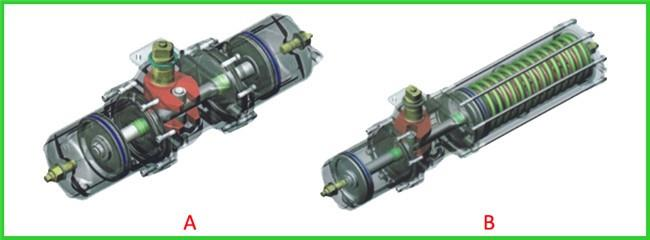

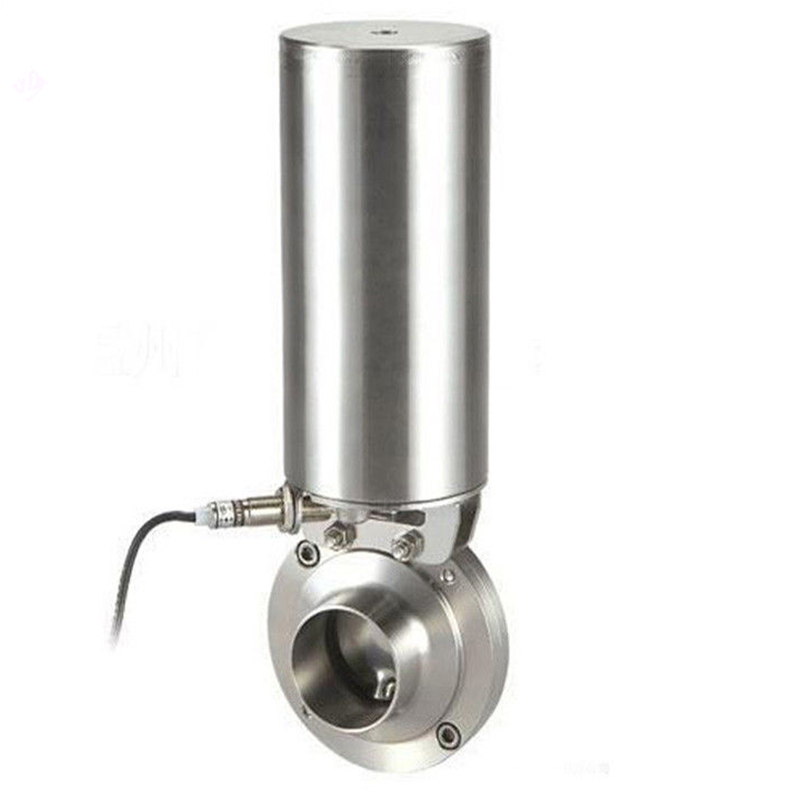

The pneumatic actuator serves as the core control component of the sanitary pneumatic weld-end butterfly valve, responsible for converting the energy of compressed air into the mechanical motion required to operate the valve. Based on the control method employed, pneumatic actuators are classified into two types: single-acting (spring-return) and double-acting. Single-acting actuators automatically return to a safe position in the event of an air supply failure, making them ideal for applications with high safety requirements. Double-acting actuators, conversely, require a continuous air supply to maintain the valve's open or closed state; they are characterized by rapid response speeds and high control precision. Actuators are typically equipped with solenoid valves for directional control, limit switches to provide feedback on the valve's position status, and—optionally—positioners to enable precise flow regulation capabilities. 2.4 Characteristics of Welded Connections

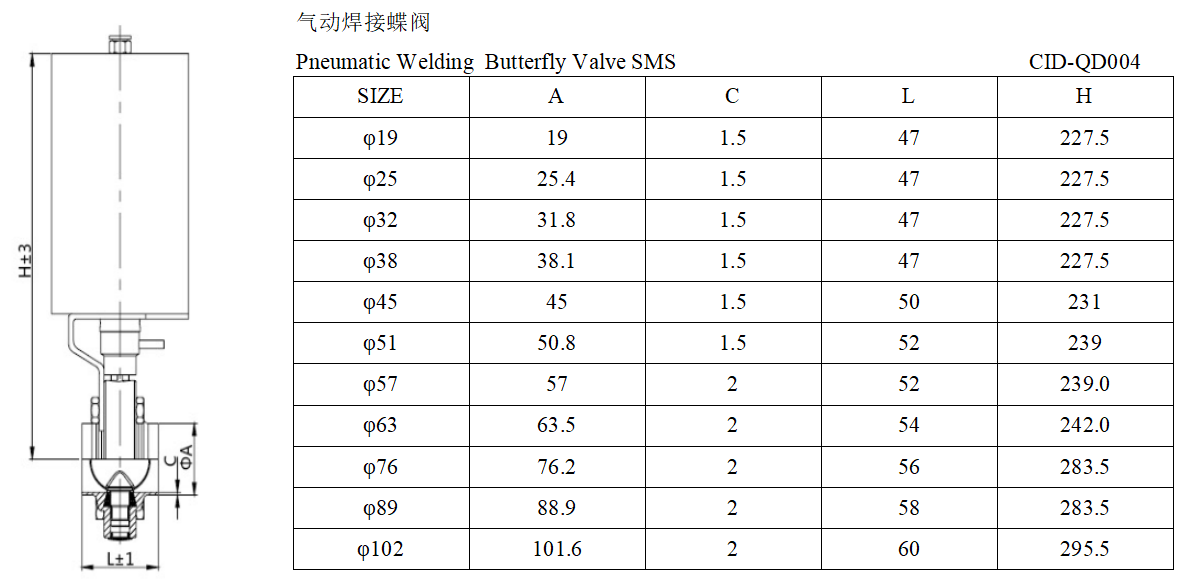

Welded connections constitute one of the primary connection methods for sanitary stainless steel valves. Compared to flanged or clamped connections, welded connections offer superior sealing strength and enhanced sanitary performance. The connection ends of welded butterfly valves typically adhere to international standard face-to-face dimensions—such as the SMS standard—facilitating seamless integration with piping systems. The welding process utilizes Argon Arc Welding (TIG), resulting in smooth, flat weld seams with a minimal heat-affected zone, free from scale and slag residue. Once welded, the entire piping system forms a seamless, monolithic entity, thereby completely eliminating the risk of leakage at connection points as well as the formation of sanitary dead zones. This makes them particularly well-suited for operating conditions involving high pressure, high temperature, and stringent sanitary requirements.

In summary, as a critical fluid control component in modern industrial production, sanitary stainless steel pneumatic welded butterfly valves have found widespread application across industries with rigorous hygiene standards—such as food processing, pharmaceuticals, dairy, and cosmetics—thanks to their exceptional sanitary properties, reliable sealing performance, flexible pneumatic control, and convenient welded installation method. With the advancement of smart manufacturing and Industry 4.0, sanitary valves are evolving toward greater intelligence and digitalization; innovative smart valve positioners now enable precise valve positioning and real-time operational feedback, while the application of IoT technology makes remote monitoring and predictive maintenance of valves a reality. Selecting high-quality sanitary valve products and establishing a comprehensive maintenance and upkeep regimen will provide a robust guarantee for the safe and efficient operation of industrial production processes.
