Application Scenarios for Stainless Steel Sanitary Quick-Connect Clamp Butterfly Valves
I. Product Overview

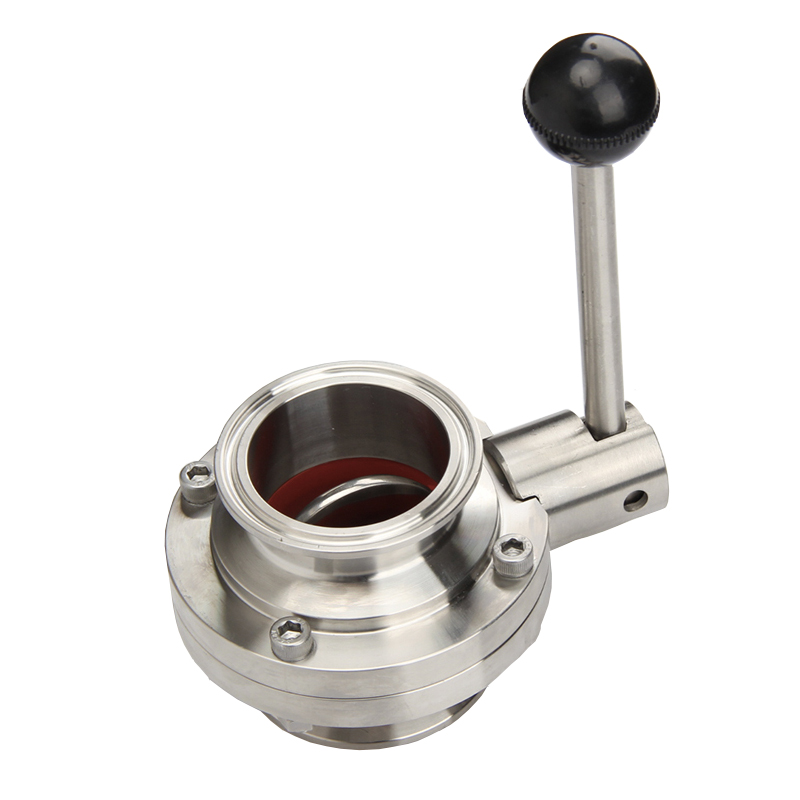

The Stainless Steel Sanitary Quick-Connect Butterfly Valve is a fluid control valve specifically designed for industries with stringent sanitary requirements; it derives its name from its use of a clamp (or quick-connect flange) for connection. Also known as a sanitary-grade butterfly valve or clamp-type butterfly valve, its core features include construction from stainless steel, a mirror-polished surface finish, and excellent sealing performance combined with convenient assembly and disassembly capabilities. The operating principle of the stainless steel sanitary quick-connect butterfly valve involves a circular disc (butterfly plate) acting as the opening and closing element; by rotating in conjunction with the valve stem, it facilitates the opening, closing, and regulation of fluid flow. The disc is positioned diametrically within the pipeline and rotates around its axis within the cylindrical channel of the valve body. Its rotation angle ranges from 0° to 90°, with the valve reaching a fully open state when rotated to 90°.

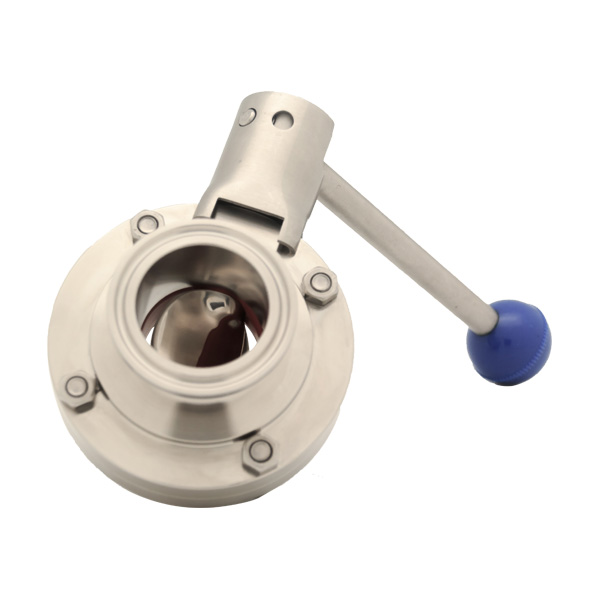

The stainless steel sanitary quick-connect butterfly valve primarily consists of a valve body, disc, valve stem, and sealing gasket. The valve body is crafted from high-quality stainless steel, featuring a smooth, flat surface and excellent corrosion resistance, enabling it to maintain stable performance in high-temperature, high-pressure, and highly corrosive environments. The disc is circular in shape and characterized by its ability to facilitate rapid closing, opening, and flow regulation. The valve stem is manufactured from high-quality stainless steel, possessing attributes such as high hardness, wear resistance, and corrosion resistance. The sealing gasket is typically made from highly elastic, corrosion-resistant materials—such as silicone rubber, fluororubber, or EPDM—to ensure superior sealing performance.
These valves are typically manufactured in compliance with international standards, including ISO, DIN, IDF, SMS, and 3A systems. The primary materials utilized are two sanitary-grade stainless steel alloys: SUS304 and SUS316L. The size range covers DN10 to DN300, with an operating temperature range of -20°C to +250°C and a maximum operating pressure of PN10 (10 bar). Available connection types include welded, quick-connect (clamp), threaded, and flanged styles, allowing them to meet the installation requirements of various operating conditions.
II. Applications in the Food Industry
2.1 Dairy Processing
In the dairy processing industry, the stainless steel sanitary quick-connect butterfly valve stands as one of the indispensable pieces of critical equipment. Dairy production imposes extremely stringent requirements regarding sanitary conditions; from the reception, storage, pasteurization, and fermentation of raw milk to the final packaging of finished products, every single stage demands rigorous fluid control. Sanitary quick-clamp butterfly valves are manufactured using materials that strictly adhere to hygiene standards; their valve bodies feature smooth internal surfaces devoid of dead spaces, effectively preventing bacterial proliferation and the accumulation of residual media, thereby ensuring the quality and safety of dairy products.
Specific applications include temperature control within pasteurization systems, flow regulation during yogurt fermentation, whey discharge during cheese production, and fluid control within cream separation equipment. These valves are suitable for use across production lines for various dairy products—such as milk, yogurt, cheese, and butter—where their superior sealing performance effectively prevents the ingress of external contaminants. Furthermore, they facilitate routine cleaning and disinfection operations, fully meeting the requirements of CIP (Clean-in-Place) systems.
2.2 Beverage Production
The beverage manufacturing industry also extensively utilizes stainless steel sanitary quick-clamp butterfly valves for fluid control. The production of various beverages—including beer, fruit juices, carbonated drinks, and tea-based beverages—requires a vast array of valves to manage process flows such as raw material conveyance, blending and mixing, pasteurization and filtration, and final packaging. Thanks to their unique structural design and high-quality sealing materials, sanitary quick-clamp butterfly valves play a pivotal role within the beverage industry.
In the beer brewing process, these valves are employed during wort mashing and boiling, hop addition, yeast pitching and fermentation control, as well as the final beer filtration and packaging stages. In fruit juice production, they are utilized for the conveyance of fruit pulp, control of enzymatic hydrolysis processes, filtration and clarification, and the final blending and packaging of the finished product. The quick-assembly and disassembly features of sanitary quick-clamp butterfly valves make equipment maintenance and cleaning exceptionally convenient, thereby significantly boosting production efficiency.
2.3 Food Additives and Condiments
The production of food additives and condiments also relies heavily on the application of stainless steel sanitary quick-clamp butterfly valves. The manufacturing processes for products such as soy sauce, vinegar, various sauces, and seasoned oils require precise flow control and rigorous quality assurance for a wide variety of liquid raw materials. Sanitary quick-connect butterfly valves utilize food-grade sealing materials—such as food-grade silicone rubber and PTFE—to ensure that components in contact with food products do not cause any contamination, thereby complying with strict food hygiene regulations.
Applications of this valve in the production of food additives include: the extraction and blending of flavors and fragrances; the dissolution and mixing of food colorants; the controlled dosing of sweeteners and acidulants; and the preparation processes for various compound additives. Its corrosion-resistant properties enable it to withstand the diverse chemical characteristics of various food additives, while its quick-connect design facilitates the cleaning and maintenance of production equipment, effectively preventing cross-contamination.
III. Applications in the Pharmaceutical Industry
3.1 Fluid Control in Pharmaceutical Manufacturing
The pharmaceutical industry is one of the sectors with the most stringent hygiene requirements; consequently, stainless steel sanitary quick-connect butterfly valves play a pivotal role in pharmaceutical manufacturing processes. These valves are suitable for handling various medicinal liquids, syrups, and mixtures of liquids and solid particles, meeting the pharmaceutical industry's exceptionally high standards for cleanliness and safety.
In the production of solid dosage forms, sanitary quick-connect butterfly valves are used to control the transfer of various solvents and medicinal liquids—such as the dosing and recovery of organic solvents like ethanol, water, and ethyl acetate. In the production of liquid dosage forms, they are applied in the preparation and distribution of Water for Injection (WFI), the compounding of various oral solutions and syrups, as well as the final filtration and filling of finished products. These valves feature a mirror-polished finish, resulting in a surface as smooth as glass that eliminates dead spaces where media could accumulate, thereby completely eradicating potential contamination risks.
3.2 Bioengineering and Vaccine Production
The fields of bioengineering and vaccine production impose even more rigorous demands on valves; in addition to meeting sanitary standards, valves must possess superior corrosion resistance and reliable sealing capabilities. Stainless steel sanitary quick-connect butterfly valves are widely utilized in critical stages such as the transfer of culture media in bioreactors, parameter control during fermentation processes, and the preparation and transfer of various buffer solutions in vaccine manufacturing.
In the production of monoclonal antibodies, these valves are employed to control the addition of nutrients to cell culture media, the separation and purification of metabolic products, and the final formulation of therapeutic preparations. In vaccine production, these valves are applied in process workflows such as the harvesting of viral culture media, inactivation treatments, and centrifugal separation. The precise flow regulation capabilities of sanitary quick-connect butterfly valves satisfy the stringent requirements for process parameter control inherent in bioengineering operations, thereby ensuring the stability and consistency of product quality.
3.3 Traditional Chinese Medicine (TCM) Extraction and Formulation
The modernized production of Traditional Chinese Medicine (TCM) also necessitates the use of sanitary quick-connect butterfly valves for fluid control. During the TCM extraction process, these valves are utilized to regulate the addition of extraction solvents—such as water or alcohol—and the collection of extracts, as well as for the material transfer involved in subsequent stages like concentration and drying. In the TCM formulation process, they are applied in the blending of various extracts and fluid extracts, as well as in the sterilization and filling of final products.
TCM production processes frequently involve a variety of organic solvents and acidic or alkaline solutions, placing high demands on the corrosion resistance of the valves used. Stainless steel sanitary quick-connect butterfly valves are constructed from high-grade stainless steel materials—such as 316L—enabling them to effectively withstand the corrosive effects of the various chemical constituents encountered during TCM extraction, thereby ensuring the valves' long-term stable operation and service life.
IV. Applications in the Chemical and Water Treatment Industries
4.1 Media Control in the Chemical Industry
The chemical industry constitutes one of the primary application sectors for stainless steel sanitary quick-connect butterfly valves. In chemical manufacturing processes, these valves are frequently employed to control the flow of highly corrosive media—such as acids, alkalis, and salts—as well as for the transfer and regulation of various organic solvents and chemical raw materials. The combination of stainless steel construction and high-quality sealing materials enables these valves to maintain stable performance even within harsh chemical environments.
Specific applications include: systems for the transfer and batching of strong acids (e.g., sulfuric acid, nitric acid, hydrochloric acid); controlled feeding of strong alkalis (e.g., sodium hydroxide, potassium hydroxide); the preparation and transfer of various salt solutions; the storage and feeding of organic solvents (e.g., ethanol, acetone, toluene); and material addition and product collection stages within chemical reaction processes. The simple structure, compact size, and lightweight nature of sanitary quick-connect butterfly valves afford significant flexibility in the layout and installation of chemical processing equipment.
4.2 Wastewater Treatment and Environmental EngineeringThe wastewater treatment industry also makes extensive use of stainless steel sanitary quick-connect butterfly valves for fluid control applications. This valve is suitable for flow control in sewage treatment plants and drainage pipelines, as well as for material allocation in various types of wastewater treatment equipment. In the sewage treatment process—which involves stages such as influent intake, pump stations, aeration tanks, sedimentation tanks, and disinfection tanks—precise flow control is essential; sanitary quick-connect butterfly valves are capable of meeting these specific application requirements.
In the field of industrial wastewater treatment, this valve is utilized for the collection and pretreatment of various industrial effluents, the dosing of chemical reagents in precipitation processes, influent control for membrane separation systems, and flow regulation prior to final discharge compliance. Its corrosion-resistant properties enable it to handle complex wastewater containing a wide range of contaminants, while its quick-connect design facilitates convenient periodic inspection and maintenance of the equipment.
4.3 Purified Water and Ultrapure Water Systems
Stainless steel sanitary quick-connect butterfly valves play a pivotal role in systems for the generation of purified water (PW) and ultrapure water (UPW). Industries such as pharmaceuticals, electronics, and power generation impose extremely stringent requirements on water quality; consequently, every stage of purified and ultrapure water systems necessitates the use of high-purity valves for fluid control. Sanitary quick-connect butterfly valves are constructed from stainless steel and feature food-grade sealing materials, thereby ensuring that they do not introduce any contamination into the water supply.
Within purified water generation systems, this valve is employed in the pretreatment of raw water, the regeneration of ion exchange beds, influent control for reverse osmosis systems, and various stages of water storage and distribution. In the ultrapure water systems utilized by the electronics industry, valves must adhere to even more rigorous cleanliness standards; the mirror-polished finish and streamlined internal geometry of sanitary quick-connect butterfly valves are designed to minimize the generation and accumulation of particulate matter.
V. Other Industrial Applications
5.1 Daily Chemicals and Cosmetics Production
The daily chemicals and cosmetics manufacturing sectors demand exceptionally high standards regarding product hygiene and safety; consequently, stainless steel sanitary quick-connect butterfly valves are widely utilized within this field. The production of perfumes and skincare products involves the extensive use of raw materials—such as alcohol, propylene glycol, and glycerin—as well as the precise dosing of various active ingredients. Sanitary quick-connect butterfly valves feature food-grade sealing materials, thereby guaranteeing that any components coming into contact with the product do not introduce contamination into the final manufactured goods. In cosmetic manufacturing, this valve is utilized for the storage and transfer of various raw materials, the addition of ingredients during mixing and agitation processes, the precise metering of fragrances and pigments, and the final filling and packaging of finished products. Its smooth surface finish and reliable sealing capabilities effectively prevent product spoilage and external contamination, thereby meeting the stringent quality standards required by the cosmetics industry.
5.2 Marine and Offshore Engineering
In the field of marine and offshore engineering, stainless steel sanitary quick-connect butterfly valves also hold significant application value. Shipboard systems—such as ballast water systems, potable water systems, and fuel oil systems—all require various types of valves for fluid control. The corrosion resistance and reliable sealing performance of sanitary quick-connect butterfly valves enable them to operate stably over long periods within harsh marine environments.
Stainless steel sanitary quick-connect butterfly valves are widely adopted in shipboard sanitary piping systems, water supply systems for galleys and laundry facilities, as well as various specialized piping systems. Their quick-connect design facilitates easy installation and maintenance within the confined spaces typical of marine vessels, while the stainless steel material effectively resists seawater corrosion, thereby extending the operational lifespan of the valves.
5.3 HVAC and Heating SystemsIn building HVAC (Heating, Ventilation, and Air Conditioning) systems and centralized heating networks, stainless steel sanitary quick-connect butterfly valves play a crucial role. These valves are used to control the flow of various media—such as cooling water, hot water, and steam—enabling the precise regulation of indoor temperatures within a building. Valves are essential for flow control at various stages of a heating system, including heat exchange stations, distribution networks, and point-of-entry regulation units.
The advantages of sanitary quick-connect butterfly valves in HVAC systems include: a simple, compact, and lightweight structure that facilitates easy installation and operation; a wide adjustment range that enables precise flow control; excellent sealing performance that effectively prevents media leakage; and a long service life coupled with low maintenance costs. Furthermore, their aesthetic appearance and smooth surface finish align with the modern architectural requirements regarding equipment aesthetics.
6. Technical Features and Selection Criteria
6.1 Key Technical Advantages
Compared to traditional valves, stainless steel sanitary quick-connect butterfly valves offer several distinct technical advantages. Foremost among these is their simple structure, compact size, and lightweight design, which facilitate easy installation and maintenance in space-constrained environments. Secondly, it offers convenient operation, rapid opening and closing capabilities, and low operating torque, enabling fast and precise fluid control. Thirdly, it boasts excellent sealing performance; utilizing high-quality sealing materials, it achieves zero-leakage sealing, thereby meeting the stringent requirements of high-purity environments. Fourthly, it offers broad applicability, suitable for fluid control across a wide range of operating conditions and media—including water, steam, oils, acid and alkali solutions, and organic solvents.
Another significant advantage of this valve lies in the convenience afforded by its quick-connect mechanism. The clamp-style connection makes valve installation and removal remarkably simple, requiring no specialized tools and significantly reducing equipment maintenance downtime. This is particularly crucial for industries—such as food processing and pharmaceuticals—that require frequent cleaning and inspection, as it effectively boosts production efficiency and equipment utilization rates.
6.2 Selection Recommendations
When selecting a stainless steel sanitary quick-connect butterfly valve, several factors must be comprehensively considered. First is the choice of material; the appropriate grade of stainless steel should be selected based on the characteristics of the fluid medium and the operating environment. SUS304 is suitable for general food and beverage applications, whereas SUS316L is recommended for more corrosive operating conditions, such as those found in the chemical and pharmaceutical industries.
Second is the selection of sealing materials; commonly used options include EPDM, silicone rubber (SI), and fluorocarbon rubber (Viton). Different materials are suited to specific temperature ranges and fluid types; therefore, the choice should be tailored to the actual operating conditions. For instance, EPDM offers excellent heat and weather resistance, making it ideal for water and steam systems, while fluorocarbon rubber provides superior chemical resistance, making it suitable for use with various chemical media.
Furthermore, technical parameters such as valve size, connection type, operating pressure, and operating temperature must be taken into account. It is essential to ensure that the selected valve meets the system's technical specifications while incorporating an appropriate safety margin. Additionally, priority should be given to products holding relevant certifications—such as ISO 9001, CE, and 3A—to guarantee that product quality and performance comply with industry standards.
VII. Conclusion
As a vital component in industrial fluid control, the stainless steel sanitary quick-connect butterfly valve plays an indispensable role across a diverse range of sectors—including food processing, pharmaceuticals, chemicals, water treatment, and daily chemical manufacturing—thanks to its exceptional sanitary properties, reliable sealing performance, and ease of installation and maintenance. Its quick-connect mechanism and mirror-polished finish make it particularly well-suited for environments with stringent hygiene requirements, effectively safeguarding both product quality and production safety.As quality standards within the food and pharmaceutical industries continue to rise—coupled with increasingly rigorous environmental regulations—market demand for sanitary stainless steel quick-connect butterfly valves is poised for sustained growth. When selecting and utilizing these valves, users should thoroughly familiarize themselves with the technical specifications and applicable scope of various products. By making scientifically informed choices based on actual operating conditions, users can fully leverage the valves' performance advantages to achieve optimal operational results and economic efficiency.
