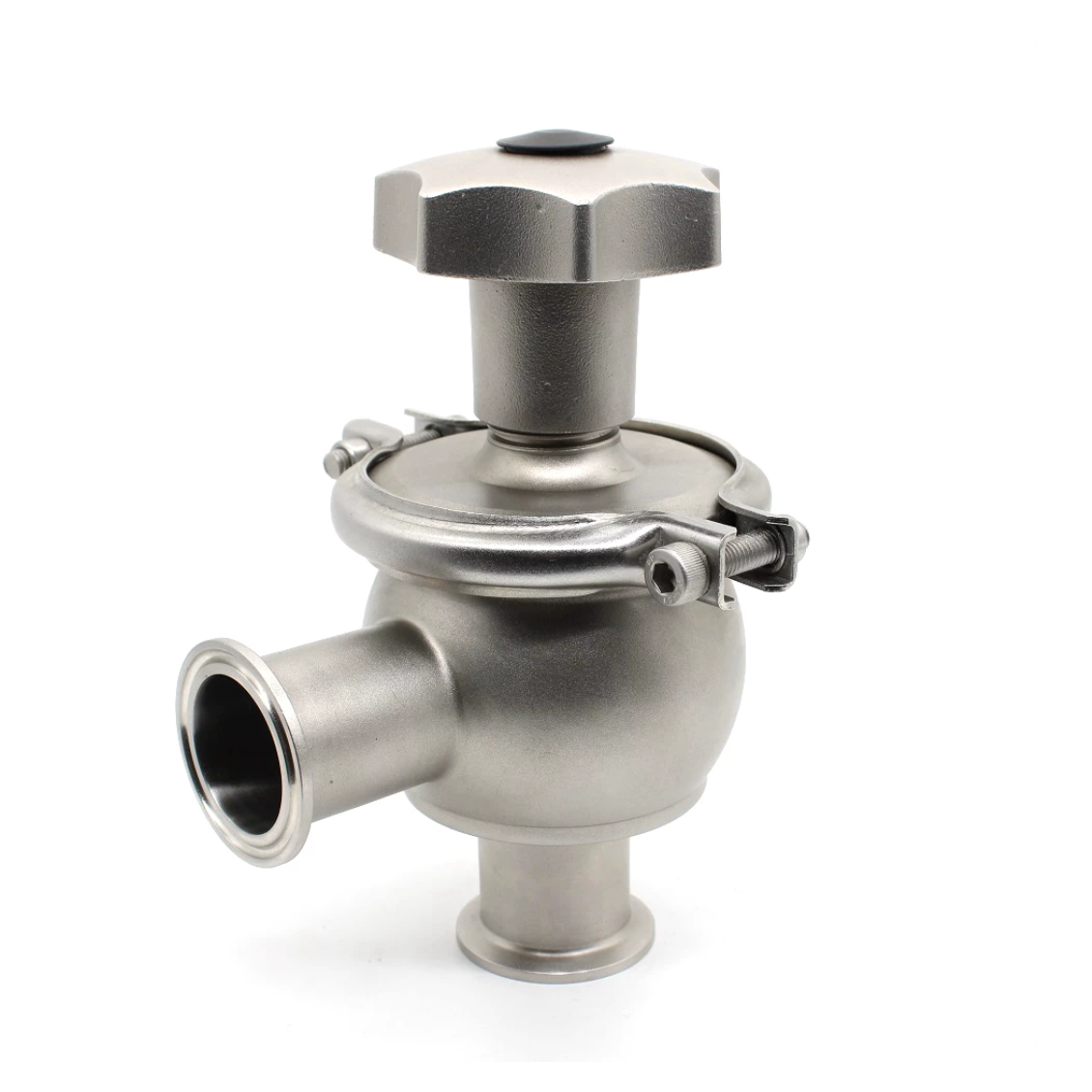

Stainless Steel Sanitary Globe & Diverter Valve Manual, Quick Connect, or Weld End Flow Control & Diverter Valve
Product Description
The Stainless Steel Sanitary Shut-off and Diverter Valve is a high-quality fluid control device specifically designed for industries such as food processing, pharmaceuticals, dairy, brewing, beverages, and bioengineering. Manufactured from 304 or 316L stainless steel, this product series features exceptional corrosion resistance and mechanical strength, enabling it to meet the rigorous sanitary standards required in high-purity production environments. Integrating both shut-off and diversion capabilities, these valves facilitate the precise control of fluid flow—including on/off regulation and directional switching—making them critical components within industrial fluid transport systems.
This valve series supports various connection methods; manual quick-clamp and weld-end interfaces are the most common options, catering to the diverse installation requirements of different application scenarios. The quick-clamp interface facilitates routine maintenance and cleaning, thereby helping to minimize downtime and enhance operational efficiency; conversely, the weld-end interface provides a more robust and secure seal, making it ideal for applications requiring long-term, fixed installations. The product undergoes a rigorous inspection process and strict quality management; its internal flow channels are precision-polished and treated to ensure sterility, thereby guaranteeing that the fluid medium remains free from contamination.
Materials and Sealing
The valve body is precision-crafted from stainless steel, and the inner walls of the flow channel undergo a 0.5μm (240-grit) electropolishing treatment to ensure unimpeded fluid flow. The sealing surface features a fully encapsulated PTFE design, free of dead spaces, thereby ensuring hygienic integrity and ease of cleaning. The sealing materials in contact with the process media typically consist of EPDM, VMQ (Silicone Rubber), or FPM (Fluororubber)—all of which comply with the U.S. FDA 177.2600 certification standards. The valve stem, constructed from AISI 316L stainless steel, features a surface reinforced with chrome plating to ensure durability and reliability under high-frequency operating conditions.
Surface Treatment
The internal surface finish achieves a roughness of Ra ≤ 0.8 μm, while the external surface offers a choice between mirror polishing (Ra ≤ 0.6 μm) and matte finishing (Ra ≤ 1.6 μm). For select products, a sandblasting option is also available, resulting in a surface roughness of Ra ≤ 1.6 μm. This high-standard surface treatment not only meets sanitary-grade requirements but also imparts an aesthetically pleasing texture to the products, making them ideally suited for use in a wide range of high-cleanliness production environments.
Product Features
Hygienic and Safe Design
The valve features a self-draining, angle-type structural design. Its flow path is free of dead zones and recesses, ensuring that the process medium does not accumulate or stagnate within the valve body. This design effectively prevents fluid retention and scale buildup, thereby facilitating easy cleaning and maintenance. The product fully supports CIP (Clean-in-Place) and SIP (Sterilize-in-Place) systems, enabling it to meet rigorous hygienic standards. Furthermore, this valve is suitable for use in systems handling Water for Injection (WFI), offering broad application prospects within the pharmaceutical and bioengineering sectors.
Structural Advantages
The valve chamber features a full-bore design that generates no fluid resistance, making it an ideal choice for handling viscous fluids or liquids containing particulate matter. All components are interconnected via clamps and stem fasteners; this simple structure facilitates easy installation and disassembly. The open-yoke design isolates the actuation mechanism from the valve body, allowing users to directly inspect and maintain the stem seals. The visual position indicator can be interfaced with display devices—such as limit switches—to enable remote status monitoring.
Operation Modes
This valve supports three distinct modes of operation: manual, pneumatic, and electric. Manual operation is controlled via a handwheel or lever, allowing for the gradual adjustment of the conical valve plug to achieve precise control over fluid flow. The pneumatic actuator features a novel single-acting design (spring-return) that is both safe and reliable, offering high output torque within a compact, lightweight form factor. Furthermore, the pneumatic valve is available in three standard configurations—normally open, normally closed, and double-acting—with functional switching easily accomplished simply by reversing the orientation of the actuator piston.
Multiple Flow Direction Types
The product offers various channel configurations, including L-type and T-type designs. The L-type valve is used to divert fluid from a single inlet to one of two outlets, while the T-type valve facilitates fluid distribution functions; users may select the appropriate configuration based on their specific process requirements. All valves undergo rigorous testing to ensure stable and reliable operation under a wide range of operating conditions.
Selection of Connection Methods
Quick-connect fittings are suitable for applications requiring frequent disassembly and cleaning, as well as for piping systems where installation convenience and low maintenance costs are priorities—albeit in contexts where sealing requirements are relatively less stringent. Welded connections, conversely, are ideal for permanent installations; they offer superior sealing performance and a longer service life, though they are not easily dismantled once installed. When making a selection, a comprehensive assessment should be conducted based on actual operating conditions, maintenance requirements, and budgetary constraints.
Material Selection
SUS304 offers excellent versatility, making it suitable for use with most non-corrosive media and in applications requiring general sanitary standards. SUS316L, which contains molybdenum, exhibits superior corrosion resistance and is particularly well-suited for environments containing chloride ions or other corrosive media. For applications involving high salinity or strong acids and bases, the use of SUS316L material is recommended.
Selection of Sealing Materials
EPDM (Ethylene Propylene Diene Monomer) is suitable for use with water, steam, and various chemical media, though it is not resistant to oils. FPM (Fluororubber) offers excellent resistance to both oils and chemicals, while silicone rubber features a wide operating temperature range. The appropriate sealing material should be selected based on the specific chemical properties of the medium and the operating temperature to ensure the valve's sealing performance and service life.
Installation and Maintenance
Pre-Installation Preparation
Before installation, verify that the piping is coaxially aligned and that the two flanges are parallel to each other. Inspect the pipeline for impurities, welding slag, or other debris; the pipeline must be thoroughly purged and cleaned. Verify the valve's nameplate specifications, then cycle the valve through several full open and full closed operations to confirm that it functions correctly. Remove the protective covers from both ends of the valve; inspect the interior of the valve body for cleanliness, and clean the internal cavity if necessary.
Routine Maintenance
Periodically inspect the condition of the sealing components; if signs of aging or damage are detected, replace them immediately. When cleaning the interior of the valve body, exercise care to avoid damaging the sealing surfaces. Keep the exterior of the valve clean, and prevent prolonged contact between corrosive substances and the product's surface. It is recommended to maintain a maintenance log to track the valve's operational status and maintenance history.
