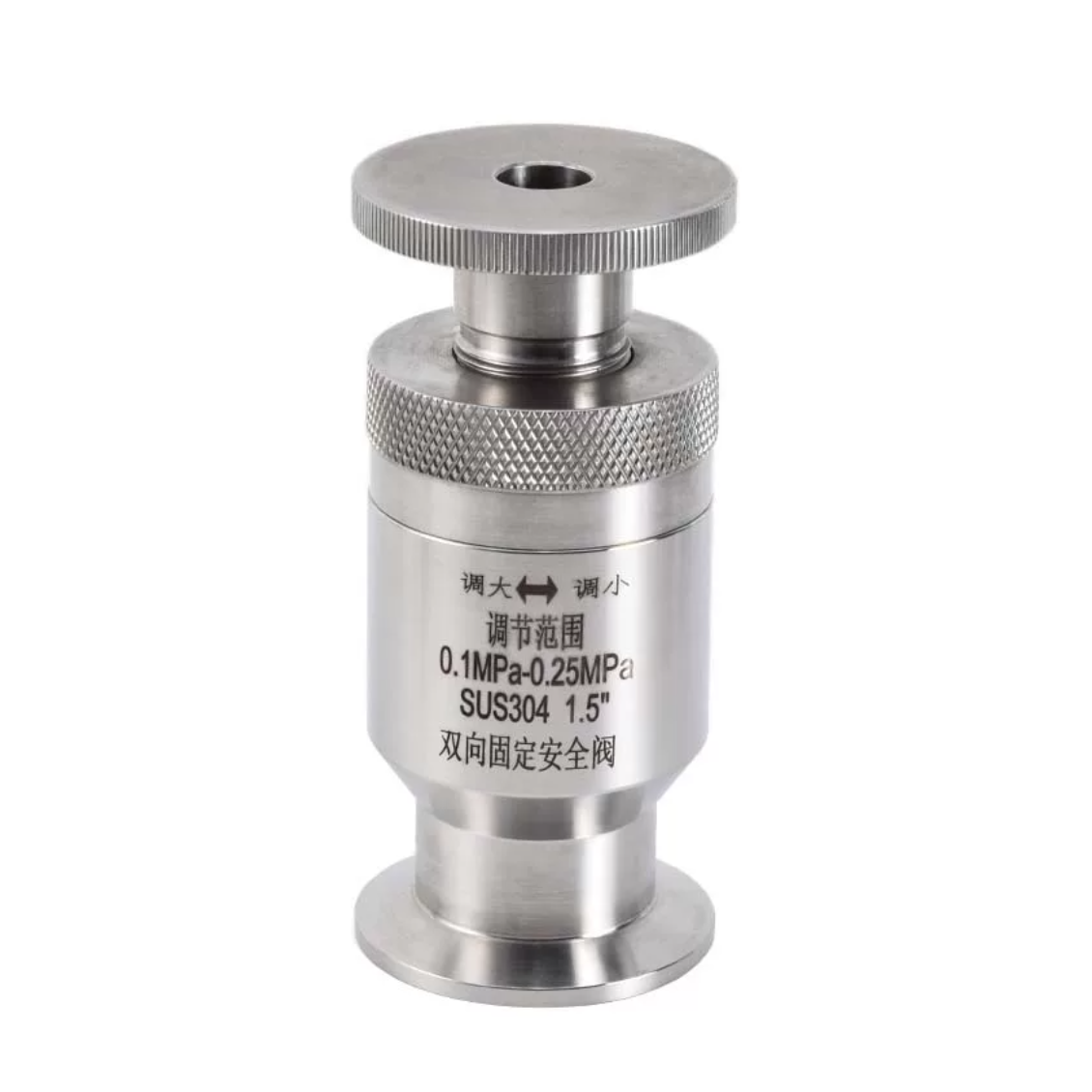

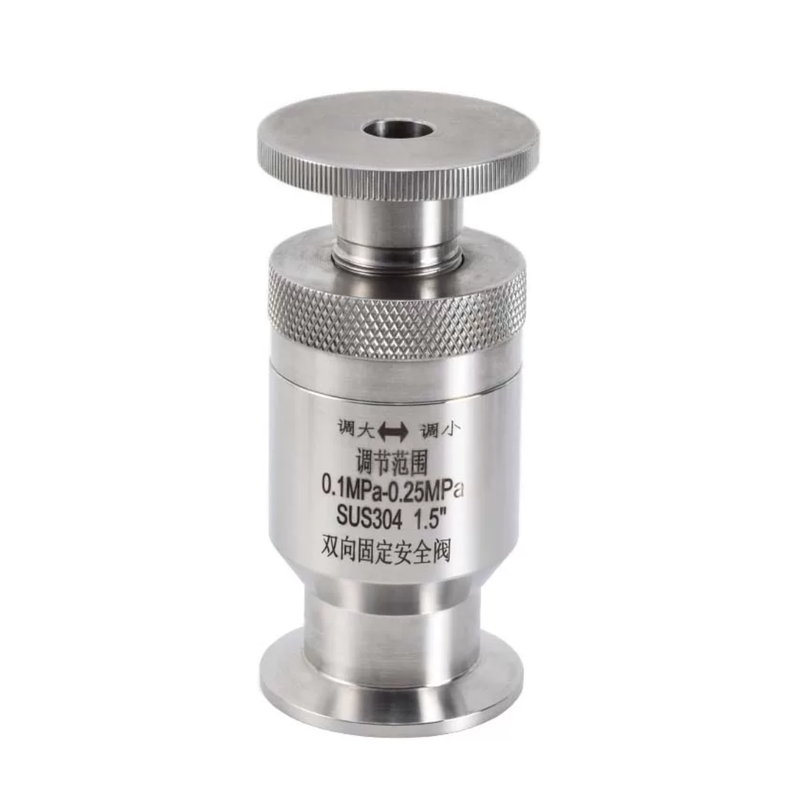

Sanitary Stainless Steel Quick Connect Dual Direction Fixed Pressure Reducing Valve, Breather Valve, Pressure Relief Valve, and Safety Valve
Product Overview
The Sanitary Stainless Steel Quick-Connect Bi-directional Fixed-Pressure Valve (incorporating functions of a breather valve, pressure-reducing valve, and pressure-relief valve) is a high-quality fluid control component specifically designed for industries with extremely stringent sanitary requirements—including food processing, pharmaceuticals, dairy, beverages, brewing, bioengineering, and fine chemicals. Constructed from premium-grade 304/316L stainless steel, this valve complies with international sanitary standards such as FDA, GMP, and 3A, thereby ensuring that the process medium remains completely free from contamination during production operations.
Structural Design Advantages
1.
Bi-directional Fixing Capability: Features a bi-directional fixing design that ensures stable valve operation regardless of the installation orientation, thereby eliminating the risk of performance degradation or leakage caused by incorrect installation alignment.
2.
Quick-Connect Clamp Fittings: Equipped with standard Tri-Clamp quick-connect interfaces, facilitating easy installation and disassembly without the need for specialized tools, which significantly reduces maintenance time and labor costs.
3.
Precision Pressure Reduction: Incorporates a built-in, high-precision spring-loaded pressure regulating mechanism that allows for the precise setting of outlet pressure according to specific process requirements. It offers a wide pressure adjustment range (typically 0.2–10 bar), characterized by sensitive response and reliable stability.
4.
Breathing and Venting Function: Integrates a breathing valve function to effectively balance internal pressure within tanks or piping systems, preventing the formation of vacuums or the risk of overpressure, thereby safeguarding equipment safety.
5.
Hygienic Design: Features a comprehensive "dead-space-free" design with smooth, rounded internal surfaces that minimize material residue. This facilitates efficient CIP (Clean-in-Place) and SIP (Sterilize-in-Place) operations, fully meeting the stringent requirements of hygienic production environments.
Working Principles
Working Principle of the Pressure Reducing Valve
When the inlet medium enters the valve, a pressure drop occurs as the high-pressure fluid passes through the throttling cross-section of the valve core. The downstream pressure acts upon the underside of the valve disc, establishing an equilibrium with the spring force. When the downstream pressure rises, the valve disc moves upward, reducing the valve opening; this accelerates the flow velocity of the medium and consequently lowers the pressure. Conversely, when the downstream pressure drops, the valve disc moves downward, increasing the valve opening; this slows down the flow velocity of the medium and allows the pressure to recover. Through this automatic adjustment mechanism, the outlet pressure is maintained constant at the preset value.
Working Principle of the Breather Valve
The breather valve features a built-in one-way valve structure. When the internal pressure within the system exceeds a preset limit, the valve disc opens to vent excess gas. Conversely, when negative pressure (vacuum) develops within the system, external air flows through the valve body into the system, thereby preventing vacuum-induced deformation or tank collapse. This bidirectional pressure-balancing design ensures that storage tanks and piping systems remain consistently within a safe pressure range.
Key Selection Criteria
1.Determine Media Characteristics: Select appropriate valve body and seal materials based on the chemical properties of the conveyed medium (e.g., acidity/alkalinity, presence of organic solvents). EPDM seals are suitable for standard water-based media; fluororubber seals are recommended for oil-based media; and silicone rubber seals are ideal for high-temperature applications.
2.Determine Pressure Parameters: Select the appropriate pressure adjustment range and opening pressure setpoint based on the system's maximum operating pressure and the required outlet pressure. It is recommended to select a model with an adjustment range that encompasses the actual operating pressure while providing a 20% safety margin.
3.Determine Flow Requirements: Select the appropriate nominal diameter (valve size) based on process flow requirements. Generally, it is recommended to maintain the actual operating flow rate within the range of 30% to 70% of the valve's rated flow capacity to ensure optimal control accuracy and stability.
4.Determine Connection Method: Select the connection type—such as quick-release clamps (Tri-Clamp), threaded connections, or flanged connections—based on the existing piping configuration at the installation site. Quick-release clamps are the most widely used option in the food and pharmaceutical industries due to their ease of installation and hygienic advantages.
5.Determine Additional Functions: Based on specific process requirements, optional accessories—such as pressure gauges, pressure switches, or safety valves—can be selected to facilitate automated control and remote monitoring.
Installation and Maintenance
Installation Precautions
The valve should be installed in a location that facilitates easy operation and maintenance, avoiding proximity to sources of vibration.
Ensure that the direction of media flow aligns with the direction indicated on the valve (although this valve supports bi-directional installation).
When utilizing quick-clamp connections, use food-grade gaskets to ensure a reliable seal.
Following installation, perform leak and functional tests to verify that the valve is operating correctly.
Maintenance Recommendations
Regularly inspect seals for wear and promptly replace any aged seals.
Periodically perform functional tests to verify the accuracy of pressure setpoints.
Avoid using cleaning agents containing chloride ions to prevent corrosion of stainless steel surfaces.
If the valve is to remain out of service for an extended period, drain the internal medium and apply anti-rust treatment.
Conclusion
The stainless steel sanitary quick-connect dual-direction fixed-pressure valve—encompassing functions as a breathing valve, pressure-reducing valve, and pressure-relief valve—has become an indispensable key component in fluid control systems within high-end industries such as food and pharmaceuticals. This status is attributed to its exceptional sanitary performance, reliable regulation precision, and convenient installation and maintenance features. Selecting products of proven quality that hold comprehensive certifications is a crucial prerequisite for ensuring production safety, enhancing product quality, and reducing operational costs. It is recommended to collaborate with suppliers possessing extensive industry experience and professional technical service capabilities to secure expert selection guidance, technical support, and reliable after-sales service.
