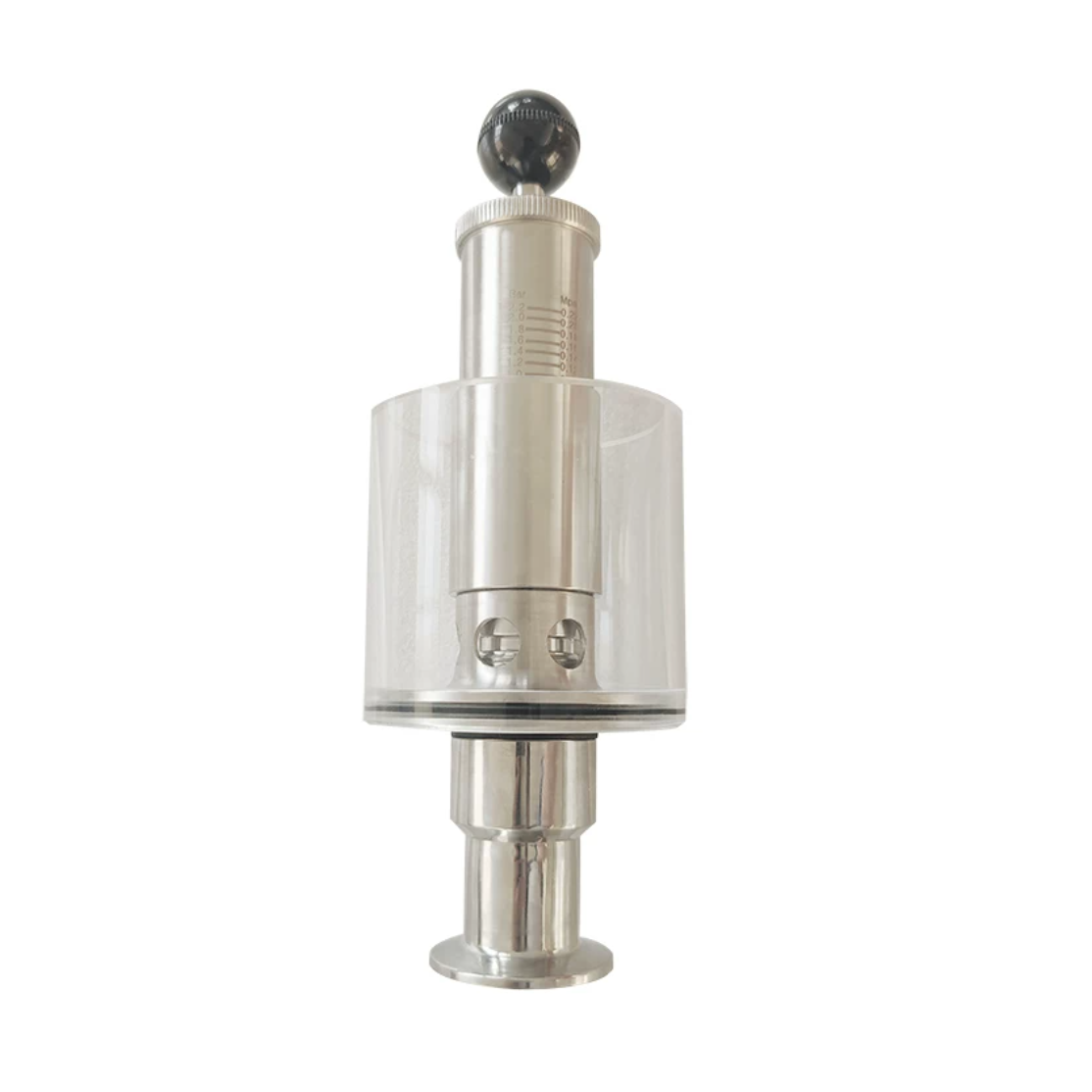

Stainless Steel Sanitary Beer Fermentation Vent Valve
I. Product Definition and Overview
The Stainless Steel Sanitary Beer Fermentation Exhaust Valve is a safety protection device specifically designed for use in the beer fermentation process, constituting a key sub-category within the field of industrial valves. This product is primarily installed at the top of beer fermentation tanks or within associated piping systems to vent gases—such as carbon dioxide—generated during fermentation as yeast metabolizes sugars; concurrently, it features an automatic pressure regulation function. When the internal gas pressure within the fermentation tank reaches a pre-set safety threshold, the exhaust valve automatically opens to relieve the pressure; once the pressure returns to normal levels, the valve automatically closes, thereby effectively mitigating the risk of tank damage caused by excessive internal pressure.
In terms of product attributes, the Stainless Steel Sanitary Beer Fermentation Exhaust Valve falls under the category of sanitary valves; consequently, its design standards, material selection, and surface finishes must all strictly adhere to food-grade sanitary requirements. This product is widely utilized across the dairy, food, beer, beverage, pharmaceutical, biotechnology, sanitary fluid handling, and chemical industries, serving as a critical component for ensuring both production safety and product quality.
II. Working Principles and Mechanisms
2.1 Basic Working Principle
The core working principle of the stainless steel sanitary-grade beer fermentation exhaust valve is based on a mechanism of pressure sensing and spring balance. Specifically, this series of safety valves calibrates a specific pressure value—a safety threshold established based on the equipment's characteristics—by adjusting the spring's compression nut. Under normal operating pressure conditions, the valve remains closed; however, when the system pressure exceeds the calibrated pressure, the valve automatically opens, releasing the pressure within the piping system and thereby achieving effective protection for both the pipelines and the equipment.
2.2 Automatic Exhaust Mechanism
For devices classified as automatic exhaust valves, the working principle also involves the synergistic interaction between a float ball and an exhaust nozzle. When gas needs to be expelled from the pipeline, the air within the pipe—driven by the water pressure—enters the valve body cavity and is discharged through the exhaust nozzle. Subsequently, as water fills the cavity, the float ball rises due to the water's buoyancy, sealing the exhaust nozzle and achieving a self-sealing state. During normal pipeline operation, air dissolved in the water continuously accumulates in the upper section of the valve cavity under pressure; this accumulation forces the float ball to descend and disengage from its sealed position, allowing the air to be discharged through the exhaust nozzle once again. This cyclical process ensures a continuous exhaust function.
2.3 Safety Valve Pressure Regulation Mechanism
The sanitary-grade beer tank exhaust valve calibrates a specific pressure value by adjusting the spring's regulating cap. When the positive pressure inside the vessel exceeds the set pressure value of the valve's positive-pressure spring, the valve automatically opens to vent gas out of the vessel; conversely, when the positive pressure inside the vessel falls below the spring's set value, the valve remains in a closed state. This design effectively safeguards the secure operation of the vessel system.
III. Product Structure and Components
3.1 Main Components
The Sanitary Stainless Steel Beer Fermentation Exhaust Valve primarily consists of the following components:
Component Name | Functional Description
Valve Body | Pressure-bearing housing; typically constructed from stainless steel.
Top Cover | Seals the valve body and provides access for maintenance.
Valve Stem | Transmits motion to facilitate the opening and closing of the valve.
Float Ball | Senses changes in liquid level and controls the exhaust operation.
Exhaust Nozzle | Channel for the discharge of gas.
Spring | Provides the restoring force and maintains the sealed state.
Sealing Components | Ensures the sealing integrity of the valve.
Specifically, the valve body and all internal parts—including the float ball, lever, lever frame, valve seat, etc.—are constructed from 304 or 316L stainless steel to ensure the product's corrosion resistance and sanitary performance.
3.2 Material Selection
The valve body is typically manufactured from acid-resistant stainless steel alloys. Common materials include:
304 Stainless Steel (1.4301): Possesses excellent overall properties and good corrosion resistance; suitable for general operating conditions.
316 Stainless Steel: Offers superior resistance to pitting corrosion; suitable for environments involving media containing chloride ions.
316L Stainless Steel (1.4404): Features ultra-low carbon content, providing enhanced resistance to intergranular corrosion; suitable for high-temperature and highly corrosive environments.
Sealing materials consist of specialized food-grade rubber or materials compliant with FDA standards. These primarily include:
EPDM (Ethylene Propylene Diene Monomer): Resistant to aging and ozone; suitable for a wide temperature range.
Silicone Rubber (SI): Resistant to both high and low temperatures; possesses excellent flexibility.
Fluorocarbon Rubber (FPM): Offers excellent resistance to oils and chemical media.
PTFE (Polytetrafluoroethylene): Resistant to virtually all chemical media.
Surface Quality
The internal surface of the product features a roughness of Ra ≤ 0.8 μm to 1.6 μm. Utilizing a standard electropolishing treatment, the smooth finish ensures cleanliness, eliminates areas where media could accumulate, and prevents potential contamination. This surface treatment not only meets sanitary-grade requirements but also facilitates CIP (Cleaning-in-Place) and SIP (Sterilization-in-Place) operations.
Summary
The sanitary stainless steel beer fermentation exhaust valve is an indispensable piece of critical equipment in the processes of beer brewing and food and beverage production. Its primary function is to vent the gases generated during fermentation while automatically relieving pressure—should the system pressure exceed a safe threshold—thereby safeguarding the secure operation of the fermentation tanks and piping systems.
