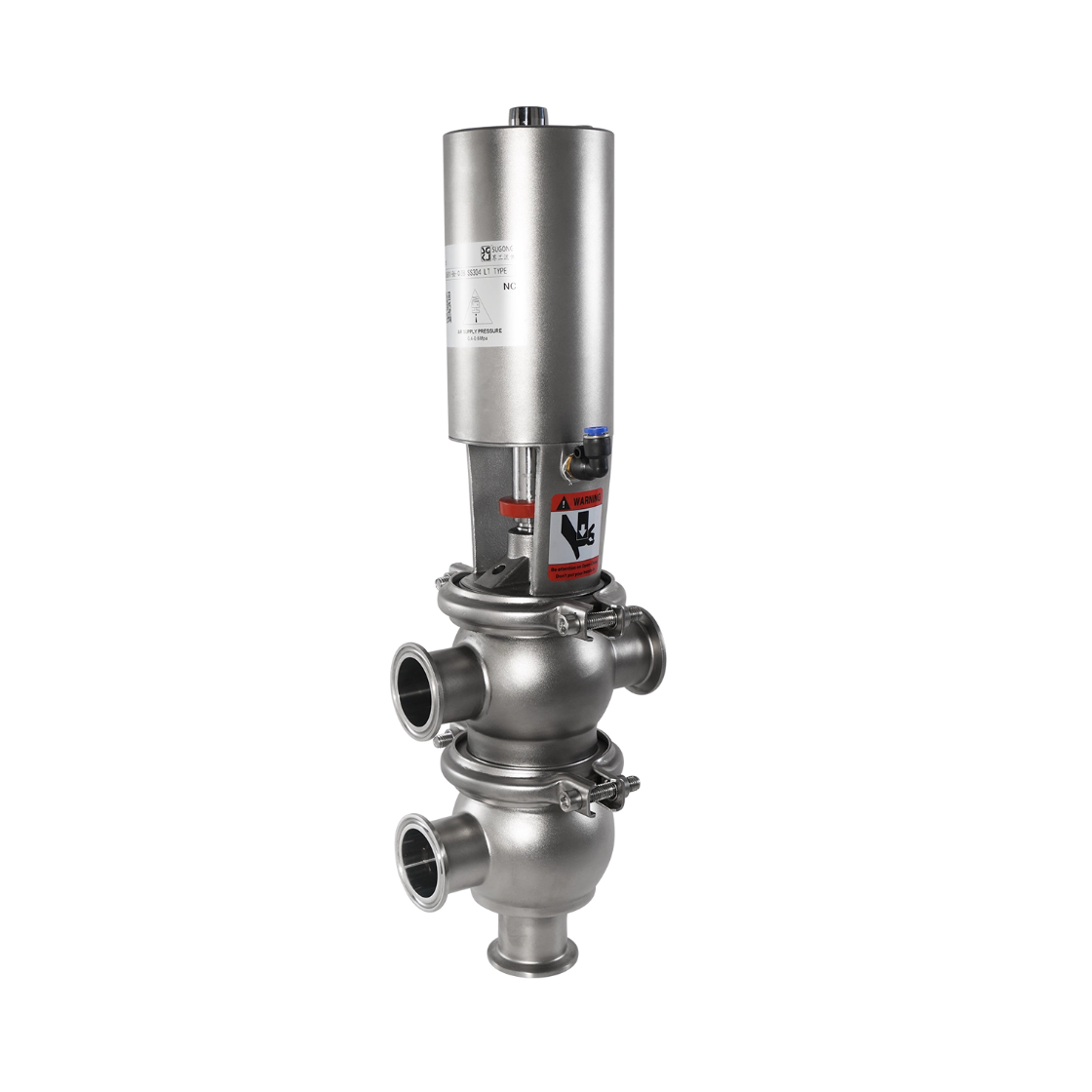

Sanitary Stainless Steel Pneumatic Shut-off and Diverter Valve — Two-Way Ball Type
The Stainless Steel Sanitary Pneumatic Shut-off and Diverter Valve (Single-Ball, Two-Way Type) is a high-end fluid control device specifically engineered for industries with stringent sanitary requirements—such as food and beverage, pharmaceuticals, bioengineering, dairy, brewing, and fine chemicals. Constructed from premium-grade 304 or 316L stainless steel, this valve features a unique single-ball, two-way structural design that utilizes a pneumatic actuator to achieve rapid and precise shut-off and flow diversion functions. Its distinctive single-ball configuration enables a single ball to control the switching between two separate channels; compared to traditional dual-ball valve structures, this design is more compact, requires less installation space, and offers greater system cost-efficiency. Manufactured in strict compliance with international sanitary standards—including ISO, DIN, IDF, and SMS—the valve boasts an internal surface roughness of Ra ≤ 0.8μm, thereby fully satisfying the process requirements for CIP (Clean-in-Place) and SIP (Sterilize-in-Place) operations. It serves as an ideal control component for modern sanitary fluid transport systems.
Key Features and Advantages
Materials and Surface Treatment
The valve body is manufactured from 304 or 316L stainless steel, formed through either forging or precision casting processes, offering exceptional corrosion resistance and mechanical strength. The 316L material is particularly well-suited for operating environments involving chloride ions or acidic media. The internal cavity of the valve body undergoes an electrolytic polishing treatment, resulting in a mirror-smooth surface finish with a roughness value (Ra) as low as 0.4 microns—or even 0.2 microns—effectively preventing media residue accumulation and bacterial proliferation. The valve ball surface is similarly subjected to precision grinding and polishing; when paired with reinforced PTFE or food-grade sealing rings, this ensures the valve maintains superior sealing performance and longevity, even during frequent opening and closing cycles. All valve components that come into contact with the process media are manufactured using food-grade or pharmaceutical-grade materials, fully complying with FDA and EU regulatory requirements.
Pneumatic Actuators
The pneumatic actuators paired with these valves feature a modular design and are typically available in two configurations: double-acting or single-acting (spring-return). The actuator housing is constructed from anodized aluminum alloy, providing excellent corrosion resistance and mechanical durability. The pneumatic ports utilize standard G1/4 or NPT thread designs, with an operating air pressure range typically spanning 0.4 to 0.8 MPa. Internally, the actuators employ either piston-type or scotch-yoke mechanisms to deliver stable and reliable output torque; various actuator models can be selected based on the specific valve specifications to meet the required torque demands. When equipped with a solenoid valve, the system enables remote control via electrical signals, offering a response time typically ranging from 0.5 to 3 seconds—thereby meeting the control requirements of automated production lines. Certain high-end models are further equipped with limit switch boxes, providing mechanical or electronic feedback signals to indicate when the valve has reached its fully open or fully closed position.
Structural Advantages of the Single-Ball, Two-Way Design
The single-ball, two-way structure constitutes the core innovation of this valve. Compared to traditional globe valves or diverting valves, this pneumatic valve achieves multi-channel switching functions—such as A→B and A→C—using a single ball, resulting in a simpler and more compact body structure. The advantages offered by this design include: smaller installation dimensions, lighter weight, lower procurement costs, fewer potential leakage points (thereby reducing the risk of leakage), and a smoother flow path design (the flow channel in single-ball, two-way valves is typically designed to be full-bore or near full-bore, resulting in minimal pressure drop). An adjustable sealing mechanism is employed between the ball and the valve seat; the sealing clearance can be finely tuned via adjustment bolts, ensuring reliable sealing performance throughout long-term operation and significantly extending both the valve's maintenance cycle and its overall service life.
Technical Specifications and Selection Parameters
Basic Parameter Range
The valve nominal diameter range typically covers DN15 to DN150 (with additional sizes as small as DN10 and as large as DN200 available), satisfying the piping size requirements of the vast majority of sanitary fluid transport systems. The operating pressure range is generally 0 to 1.0 MPa, while certain high-pressure models can reach up to 1.6 MPa. The operating temperature range depends on the sealing material: when utilizing standard PTFE seals, the applicable temperature range is -10°C to +180°C; when utilizing reinforced PTFE or high-performance sealing materials, the applicable temperature range can be extended to -30°C to +220°C. Connection methods include various options such as clamp-type, flange-type, and weld-type (butt-weld or socket-weld), accommodating diverse piping connection requirements. The design safety factor for the valve body's pressure-bearing components is no less than 3:1, ensuring the long-term safety and reliability of the equipment during operation.
Pneumatic Actuator Parameters
Selecting a pneumatic actuator requires a comprehensive consideration of factors such as valve specifications, operating pressure, and media characteristics. Taking standard double-acting actuators as an example, the common model correspondence is as follows: valves with DN15 to DN25 specifications are typically paired with AT052 to AT063 actuators; DN32 to DN50 specifications correspond to AT075 to AT092; DN65 to DN100 specifications correspond to AT105 to AT140; and DN125 to DN150 specifications correspond to AT160 to AT210. Air consumption increases as the actuator model size increases; at standard operating air pressure, the air consumption per actuation cycle ranges from a few liters to several tens of liters. For single-acting actuators, the spring return force must be determined based on the operating air pressure and the required output torque; therefore, it is essential to consult the torque selection chart provided by the manufacturer during the selection process. Common voltage specifications for solenoid valves include AC220V, AC110V, and DC24V, with power consumption typically ranging between 5 and 15 watts.
Selection of Sealing Materials
The choice of sealing materials directly impacts the operational performance and service life of the valve. The standard configuration typically employs reinforced Polytetrafluoroethylene (PTFE) seals, making it suitable for most water-based and general chemical media. For high-temperature applications, heat-resistant PTFE or flexible graphite seals may be selected; for highly corrosive media, Viton (fluorocarbon rubber) or EPDM (ethylene propylene diene monomer rubber) seals are recommended. For the food and pharmaceutical industries, sealing materials are typically required to meet FDA or USP Class VI certification standards. For cryogenic applications (such as liquid nitrogen or liquefied natural gas), specialized low-temperature sealing materials must be utilized. Regardless of the chosen sealing material, it is essential to ensure that it exhibits excellent chemical compatibility with the medium, as well as a suitable match in terms of physical and mechanical properties.
Key Points for Installation, Operation, and Maintenance
Installation Precautions
Before installing the valve, carefully verify that the model specifications and operating parameters align with design requirements. Inspect the valve's exterior for any signs of damage, and verify that all material certification documents are complete. The installation location should be selected to facilitate easy operation, maintenance, and repair. The flow direction arrow marked on the valve body must correspond with the actual direction of media flow within the pipeline. For clamp connections, use only the sealing rings provided by the original manufacturer; for flanged connections, tighten the bolts evenly and symmetrically; and for welded connections, the work must be performed by qualified welders in strict accordance with the WPS (Welding Procedure Specification). The pneumatic air supply lines must be clean and free of impurities; it is recommended to install a lubricator and a filter at the air inlet. Connections for the solenoid valve coil must comply with applicable electrical explosion-proof or ingress protection (IP) rating requirements. Upon completion of installation, conduct air-tightness and functional tests to confirm that the valve opens and closes smoothly, remains leak-free, and provides accurate signal feedback.
Operation and Maintenance
Under normal operating conditions, the valve requires no special operational procedures; maintenance primarily consists of periodic inspections and preventive measures. It is recommended to inspect the condition of the seals for wear every three to six months; if any signs of leakage are detected, the seals should be replaced immediately. The springs within single-acting actuators may experience fatigue or breakage after prolonged use; they should be inspected or replaced periodically, depending on the frequency of operation. If the solenoid valve coil exhibits signs of overheating or delayed response, it should be replaced immediately. If the surface of the valve ball shows signs of scratching or corrosion, it should be promptly treated or the entire valve ball assembly replaced. It is recommended to establish a valve maintenance log to record details such as the date, scope of work, and replacement parts used during each maintenance event. For valves situated at critical control points, it is advisable to maintain a stock of spare parts to ensure a rapid response in the event of an unexpected failure.
Conclusion
The Stainless Steel Sanitary Pneumatic Shut-off/Diverter Valve (Two-Way Ball Type) integrates sanitary-grade material standards, a compact two-way ball structure, and reliable pneumatic actuation technology, serving as a core control component in modern sanitary fluid control systems. When selecting a valve, users should comprehensively consider factors such as media characteristics, temperature and pressure parameters, control mode requirements, and certification standards. It is advisable to select products from suppliers that possess a robust quality assurance system and demonstrated capabilities in providing effective after-sales service. Through proper selection, standardized installation, and regular maintenance, this valve can ensure long-term, stable operation within sanitary fluid transport systems, thereby providing a strong guarantee for a company's production efficiency and product quality.
