Stainless Steel Sanitary Tri-Clamp Sight Glass: Application Scenarios

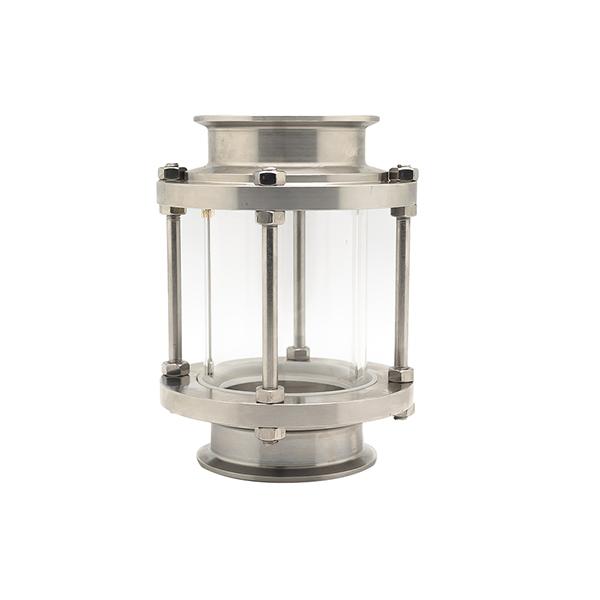

The stainless steel sanitary tri-clamp sight glass is a critical component for industrial pipeline observation. Constructed from high-grade 304 or 316L stainless steel, it utilizes a tri-clamp connection mechanism to facilitate rapid installation and disassembly. This product is widely deployed in industrial sectors where strict sanitary standards are mandatory.
I. Core Application Fields
Industry Sector | Specific Applications: Observation of fluid flow in pipelines transporting food and beverages—including fruit juices, milk, beer, condiments, and similar liquids.
Pharmaceutical Industry: Monitoring of process pipelines for pharmaceutical solutions, purified water, water for injection (WFI), and related fluids.
Dairy Industry: Production lines for raw milk, pasteurized milk, yogurt, and other dairy products.
Cosmetics Industry: Manufacturing processes for daily chemical products such as serums, lotions, shampoos, and similar items.
Biochemical Industry: Handling of high-purity media, including enzyme preparations, fermentation broths, cell culture media, and related substances.
II. Detailed Typical Application Scenarios
1. Food Processing Industry: Monitoring of liquid flow in beverage bottling lines; pipeline systems for food additives; transport lines for edible oils; and observation of viscous media such as sauces and syrups.
2. Pharmaceutical Engineering: Monitoring of synthesis reactions for Active Pharmaceutical Ingredients (APIs); formulation and compounding systems; purified water and WFI systems; and CIP (Clean-in-Place) / SIP (Sterilize-in-Place) systems.
3. Dairy and Brewing: Milk pasteurization processes; piping associated with beer fermentation tanks; wine production; and monitoring of yogurt fermentation processes.
4. Chemical Industry: Transport lines for acid and alkali solutions; solvent recovery systems; observation of inlet and outlet flows in chemical reactors; and cooling water circulation systems.
III. Product Features and Suitability
Sanitary Design Advantages: Features an electrolytically polished inner surface (Ra ≤ 0.8μm) and a "dead-leg-free" design (no stagnant zones). Complies with international sanitary standards such as 3A, SMS, DIN, and ISO. The tri-clamp connection allows for rapid assembly and disassembly without the need for welding, ensuring full compatibility with CIP and SIP cleaning and sterilization processes. Operating Parameter Range:
Material: 304 / 316L Stainless Steel
Nominal Diameter: DN15–DN200 / 1"–6"
Working Pressure: 0.6–1.6 MPa
Working Temperature: -20°C ~ 180°C
Sight Glass Material: Borosilicate Glass / Quartz Glass / Tempered Glass
IV. Selection Recommendations: (Based on Operating Conditions)
Recommended Configuration:
High-Temperature Steam Sterilization: Quartz Glass + PTFE Seal
Highly Corrosive Media: 316L Material + Fluoropolymer Lining Design
High Purity Requirements: Electropolishing + Dead-Leg-Free Design
Frequent Disassembly and Cleaning: Quick-Clamp Connection
V. Recommended Installation Locations: Sight glasses are typically installed at the following locations to ensure optimal observation:
Pump Outlet: To observe pump operating status and fluid discharge conditions.
Storage Tank Outlet: To monitor fluid levels within the tank.
Before/After Filtration: To inspect filtration effectiveness.
Downstream of Mixing Point: To observe the uniformity of the mixture.
Upstream of Filling Station: To verify that the fluid state meets filling requirements.
Summary: The sanitary stainless steel quick-clamp sight glass—distinguished by its superior corrosion resistance, convenient assembly/disassembly features, and design compliant with international sanitary standards—serves as an indispensable observation component in the piping systems of industries such as food, pharmaceuticals, dairy, and cosmetics. It effectively facilitates the monitoring of production processes, aids in accident prevention, and ensures product quality and safety.
