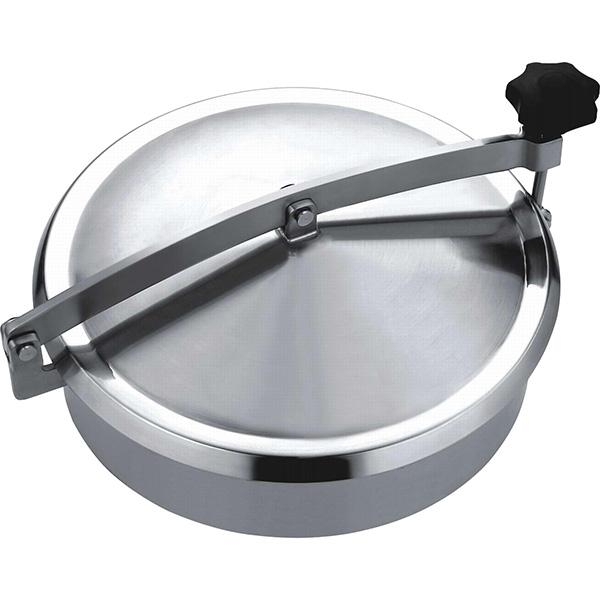

Description and Application Scenarios: Stainless Steel Sanitary Atmospheric Manhole Covers
Stainless steel sanitary atmospheric manhole covers are widely utilized components in industries such as food processing, pharmaceuticals, dairy, beverages, and bioengineering. Their primary function is to provide a safe and convenient access point for the inspection, maintenance, and cleaning of vessels such as storage tanks and reactors.
I. Key Application Areas
1. Food Processing Industry: Fermentation Tanks & Mixing Tanks—Used for routine inspection, maintenance, and cleaning; features a simple structure and easy installation. Canning Production Lines—Ensures proper air circulation within the tank while maintaining an aseptic internal environment. Dairy Processing—Designed for seamless integration with CIP (Clean-in-Place) systems.
2. Pharmaceutical Industry
Aseptic Production Equipment—Installed at ventilation ports within sterile rooms to ensure the pharmaceutical manufacturing process remains free from contamination. Bioreactors—Compliant with GMP requirements and designed using advanced 3D modeling software. Pharmaceutical Fluid Equipment—Capable of withstanding the rigorous demands of Steam-in-Place (SIP) sterilization and cleaning processes.
3. Beverage and Brewing Industry
Large Beer Tanks & Vessels—Widely applied across industrial sectors including dairy, brewing, food, beverages, pharmaceuticals, and bioengineering. Beverage Production Line Storage Tanks—Perfectly adaptable to a wide range of vessels, from large-scale storage tanks on production lines to smaller fermentation barrels.
4. Bioengineering and Fine Chemicals
Biotechnology Laboratory Equipment—Provides safe and convenient access for inspection and cleaning purposes. Chemical Reactors—Exhibits strong corrosion resistance, making it suitable for use with a variety of chemical media.
II. Technical Features and Advantages
Material: SUS304 and 316L austenitic stainless steel, meeting the stringent corrosion resistance requirements of the food and pharmaceutical industries.
Surface Finish: Multiple options available, including mirror polishing (Ra ≤ 0.8μm), matte finishing, sandblasting, and pickling.
Sealing: Available with various gasket materials, including silicone, EPDM (Ethylene Propylene Diene Monomer), and FPM (Fluorocarbon Rubber).
Opening Mechanism: Quick-opening design allows for rapid assembly and disassembly without the need for welding, thereby reducing maintenance costs.
Design Standards: Compliant with FDA, GMP, QS, and HACCP requirements.
III. Typical Vessel Types
Storage Tanks: Used for the storage of various liquid media.
Fermentation Tanks: Used in the production of fermented products such as beer and yogurt. Reaction Vessel: Chemical and pharmaceutical reaction processes.
Mixing Tank: Blending of food ingredients.
Heat Exchanger: Fluid temperature control equipment.
IV. Key Selection Criteria
1. Pressure Rating: Atmospheric manholes are suitable for vessels operating under atmospheric or low-pressure conditions.
2. Material Selection: 316L stainless steel offers superior corrosion resistance compared to 304, making it suitable for use with strong acidic or alkaline media.
3. Sealing Material: Select the appropriate gasket material based on the specific characteristics of the process medium.
4. Dimensions: Common sizes range from DN150 to DN600; custom sizes are available upon request to meet specific client requirements.
With their exceptional corrosion resistance, ease of cleaning, and convenient maintenance features, sanitary-grade stainless steel atmospheric manhole covers have become indispensable components within the modern food and pharmaceutical industries.
