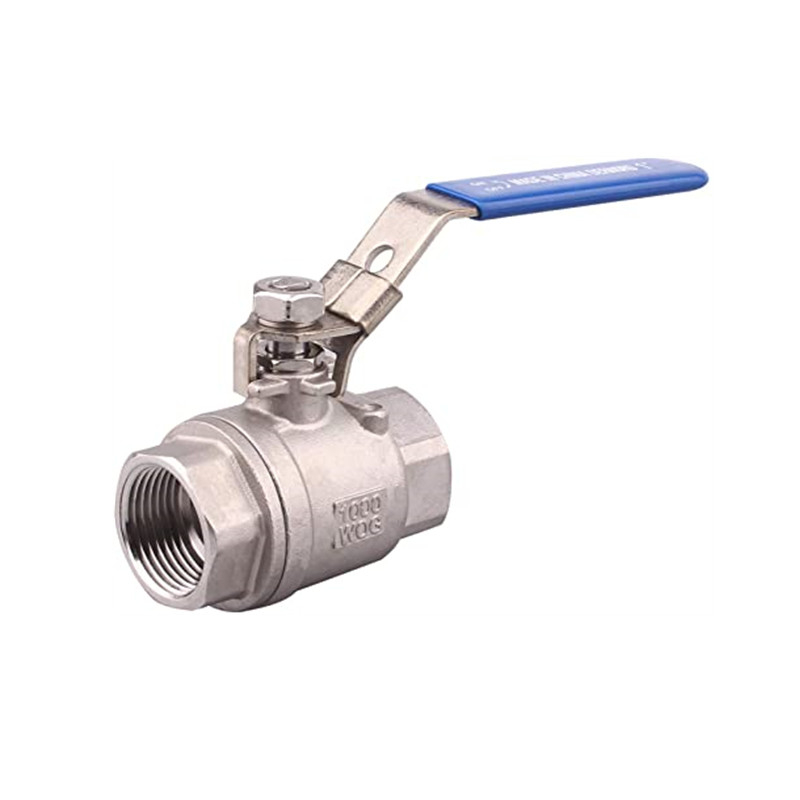

Product Description and Application Scenarios: Industrial-Grade Two-Piece Stainless Steel Ball Valves
I. Product Overview
The industrial-grade two-piece stainless steel ball valve is a high-performance fluid control valve widely utilized across various industrial sectors, including petroleum, chemical processing, pharmaceuticals, food and beverages, and water treatment. This valve features a two-piece body structure design, comprising core components such as the valve body, ball, stem, sealing elements, and connecting fasteners. The entire assembly is constructed from high-quality stainless steel—such as grades 304, 316, or 316L—imbuing the product with exceptional corrosion resistance and mechanical strength. Compared to traditional one-piece and three-piece ball valves, the two-piece design achieves an optimized structural balance; it not only guarantees the valve's sealing integrity and structural strength requirements but also facilitates ease of on-site installation and maintenance, making it a critical component within modern industrial fluid control systems.
The core operating principle of this product involves rotating the valve stem to drive the ball, thereby executing a 90-degree opening and closing motion. When the valve stem handle (or actuator) rotates the ball to a position parallel to the pipeline axis, the valve is in the open state, allowing the fluid medium to flow through unimpeded. Conversely, when the ball rotates 90 degrees to a position perpendicular to the pipeline axis, the valve enters the closed state, completely cutting off the flow of the medium. This simple switching mechanism endows the ball valve with significant advantages—including effortless operation, rapid opening and closing speeds, and reliable sealing—establishing it as one of the most widely applied valve types in the field of industrial fluid control.
II. Structural Features and Material Advantages
2.1 Two-Piece Valve Body Structure
The valve body of the two-piece ball valve adopts a split-body design—a structural feature that confers unique advantages upon the product. The two-piece body consists of a left body section and a right body section, joined together via bolts; a high-performance sealing gasket is positioned between these sections to ensure the sealing reliability of the connection joint. Compared to one-piece ball valves, this design offers superior component interchangeability and ease of maintenance. When internal sealing components require replacement or repair, there is no need to completely remove the entire valve assembly from the pipeline; instead, one need only remove the connecting bolts to access and service the valve's internal components, thereby significantly reducing maintenance costs and system downtime. Furthermore, the two-piece structure simplifies the casting and machining processes, which helps ensure the stability and consistency of the product's overall quality. Valve bodies are typically connected via flanged or threaded connections. Flanged connections are characterized by high connection strength and superior sealing performance, making them well-suited for large-diameter, high-pressure applications. Threaded connections, conversely, offer the advantages of a compact structure and ease of installation, rendering them more suitable for small-diameter, low-pressure piping systems. Users may select the appropriate connection method based on actual operating conditions and installation space requirements.
2.2 High-Quality Stainless Steel Materials
The body of the industrial-grade two-piece ball valve is constructed from high-quality stainless steel, serving as a critical guarantee for its long-term stable operation under harsh working conditions. Commonly used stainless steel grades include 304, 316, and 316L, each possessing distinct chemical compositions and performance characteristics.
304 stainless steel is one of the most widely used austenitic stainless steels; containing 18% chromium and 8% nickel, it exhibits excellent corrosion resistance, machinability, and weldability. It is capable of withstanding corrosion from most oxidizing acids and organic acids, making it suitable for environments involving general corrosive media. 316 stainless steel builds upon the 304 composition by adding 2% to 3% molybdenum, significantly enhancing its resistance to pitting and crevice corrosion. This makes it particularly well-suited for highly corrosive environments, such as those containing chloride ions or exposed to marine atmospheres. 316L stainless steel is the low-carbon variant of 316, with its carbon content strictly controlled below 0.03%. This effectively mitigates the risk of intergranular corrosion, rendering it ideal for high-temperature applications or scenarios where excellent corrosion resistance must be maintained following welding operations.
2.3 Precision Ball and Stem Design
The ball serves as the core opening and closing component of the ball valve; consequently, its machining precision directly impacts the valve's sealing performance and service life. The ball in industrial-grade two-piece ball valves is typically formed using precision forging or precision casting processes, followed by a multi-stage sequence of turning, grinding, and polishing operations to ensure the ball's surface roughness meets a standard of Ra 0.8μm or less. The flow bore within the ball is precisely drilled using CNC machining centers to ensure that its diameter and geometric tolerances strictly adhere to design specifications.
The valve stem connects the ball to the operating handle or actuator, fulfilling the critical function of transmitting the torque required for opening and closing the valve. The stem typically incorporates an anti-blowout design (compliant with the ISO 5211 standard); by utilizing a tenon-and-groove connection at its lower end (interfacing with the ball) and a packing gland at its upper end, it establishes a dual-seal structure that effectively prevents the process medium from leaking through the stem interface. Furthermore, the stems of certain high-end models are equipped with grease injection ports, allowing for the emergency injection of sealing grease during operation to further enhance sealing reliability. 2.4 High-Performance Sealing System
Sealing performance is a core metric for evaluating the quality of a ball valve. The industrial-grade, two-piece stainless steel ball valve employs a multi-layered sealing system designed to ensure reliable sealing performance under a wide variety of operating conditions. The seal between the ball and the valve seat is achieved through various methods, including the use of PTFE (polytetrafluoroethylene), reinforced PTFE, or metal seals. PTFE seats offer numerous advantages—such as a low coefficient of friction, excellent self-lubricating properties, and strong corrosion resistance—making them suitable for most standard media. Reinforced PTFE seats, enhanced by the addition of fillers such as carbon fibers or bronze powder, demonstrate significantly improved wear resistance and load-bearing capacity. Conversely, metal seats are specifically designed for harsh operating environments characterized by high temperatures, high pressures, or the presence of solid particles.
The valve stem sealing mechanism utilizes flexible graphite or PTFE packing, paired with a packing gland and sleeve, to establish a reliable axial seal. The connection between the two valve body sections is secured using high-performance gaskets—such as graphite-reinforced or metal-jacketed gaskets—to ensure a leak-proof joint. This multi-layered, comprehensive sealing system design enables the two-piece ball valve to meet the demanding requirements of a broad spectrum of operating conditions, ranging from vacuum to high-pressure environments, and from cryogenic to moderate-to-high temperature applications.
III. Detailed Analysis of Application Scenarios
3.1 The Petrochemical Industry
The petrochemical industry constitutes one of the most critical application sectors for industrial-grade, two-piece stainless steel ball valves. This industry encompasses numerous process stages—including crude oil extraction, refining and processing, chemical synthesis, and fertilizer production—where pipeline systems convey a wide array of corrosive and non-corrosive fluids, such as crude oil, natural gas, various hydrocarbon compounds, acid and alkali solutions, brine, and steam.
Within the atmospheric and vacuum distillation units of oil refineries, two-piece ball valves are extensively utilized in feed lines for crude oil, pipelines for intermediate products, output lines for finished products, and various auxiliary piping systems. The operating pressures in these pipelines typically range from 1.0 to 4.0 MPa, with operating temperatures ranging from ambient conditions up to approximately 300°C; moreover, the conveyed media often possess complex compositions and exhibit varying degrees of corrosiveness. Two-piece ball valves fabricated from 304 or 316 stainless steel are ideally suited to meet these demanding operating conditions; their reliable sealing capabilities effectively prevent the leakage of flammable and explosive media, thereby ensuring operational safety.
In the organic synthesis units of chemical manufacturing plants, pipelines transporting reaction feedstocks, intermediate products, and final products frequently require shut-off or flow-switching operations. Thanks to their exceptional corrosion resistance and rapid opening/closing characteristics, stainless steel two-piece ball valves have emerged as the preferred valve type for these pipelines. This is particularly true in piping systems involving corrosive media—such as organic acids (e.g., acetic acid and formic acid), brine, and caustic solutions—where the resistance of 316L stainless steel ball valves to intergranular corrosion proves to be of paramount importance. Furthermore, auxiliary systems within chemical plants—including those dedicated to catalyst transport, solvent recovery, and wastewater treatment—also make extensive use of two-piece ball valves.
3.2 Pharmaceuticals and Bioengineering
The pharmaceutical industry imposes extremely stringent requirements on valve products; since valves come into direct contact with pharmaceutical raw materials and finished drug products, their material properties and hygienic characteristics directly impact drug quality and patient safety. Industrial-grade two-piece stainless steel ball valves have emerged as critical components within pharmaceutical processing systems due to the chemical stability of their materials, their excellent sealing capabilities, and their ease of cleaning and maintenance.
In facilities dedicated to the production of Active Pharmaceutical Ingredients (APIs), stainless steel ball valves are deployed in the inlet, outlet, nitrogen blanketing, and vacuum extraction lines of various reaction vessels. The media flowing through these pipelines often consist of high-purity chemical reagents or reaction intermediates, necessitating valves with exceptionally high material purity and corrosion resistance. 316L stainless steel ball valves, with their ultra-low carbon content and superior corrosion resistance, are capable of meeting the rigorous material specifications demanded by API manufacturing processes.
In the biopharmaceutical sector—encompassing processes such as vaccine production, antibody drug manufacturing, and cell culture—reliable fluid control valves are indispensable for tasks ranging from the preparation and transfer of culture media to the storage and distribution of buffer solutions, as well as product purification and concentration. In these applications, two-piece ball valves must not only exhibit excellent corrosion resistance but also satisfy the requirements for SIP (Sterilization-in-Place) and CIP (Cleaning-in-Place) procedures. Valve designs must account for the thermal and pressure shock associated with sterilization steam, as well as the corrosive effects of various cleaning agents, thereby ensuring that stable sealing performance is maintained throughout frequent sterilization and cleaning cycles.
The production of sterile pharmaceutical formulations represents one of the most demanding segments of the pharmaceutical industry in terms of valve requirements. Within Water for Injection (WFI) systems, pure steam systems, and sterile gas distribution networks, two-piece ball valves are utilized for flow regulation and shut-off control within distribution pipelines. Valves deployed in these systems must adhere to the design specifications of 3-A Sanitary Standards or ASME BPE standards; their surface roughness must be maintained at Ra 0.8 μm or lower—and in some cases, as low as Ra 0.4 μm—and they typically undergo electropolishing to eliminate surface micro-cracks and metallic inclusions, thereby minimizing the risk of microbial adhesion. Valve connections typically utilize sanitary-grade clamp or flange fittings to facilitate easy disassembly for cleaning and to support sterilization validation processes.
3.3 Food and Beverage Processing
The valve requirements within the food and beverage industry primarily center on two aspects: material food safety and hygienic cleanliness. Industrial-grade two-piece stainless steel ball valves have become the standard configuration for fluid control systems in food and beverage processing, owing to their non-toxic, odorless, and chemically stable material properties, as well as their smooth surface finish which inhibits bacterial growth.
In beverage production lines, two-piece stainless steel ball valves are widely utilized across various stages, including raw water treatment, syrup preparation, juice blending, carbonated water production, mixing and blending systems, and the final filling process. For instance, in the production of carbonated beverages, the precise metering and conveyance of carbon dioxide gas necessitate reliable valve control; similarly, in juice production, the accurate proportioning of various ingredients—such as raw juice, concentrates, syrups, and flavorings—relies heavily on dependable valve control. These valves require periodic Clean-in-Place (CIP) procedures to remove residual food materials and prevent microbial proliferation and cross-contamination.
Dairy processing represents another sector where stainless steel ball valves are extensively employed. From raw milk reception, clarification, standardization, pasteurization, and homogenization to fermentation, filling, and CIP cleaning systems, stainless steel valves of various specifications are indispensable for controlling fluid flow and direction at every stage. In the production of products such as yogurt, cheese, and butter, 316L stainless steel ball valves are the preferred choice due to their exceptional acid resistance (enabling them to withstand the corrosive effects of acidic products like yogurt) and their resistance to corrosion from cleaning agents.
In the brewing industry, throughout the entire brewing process—encompassing mashing, boiling, fermentation, maturation, filtration, and filling—a vast array of valves is required to control the flow of various media, including wort, yeast, beer, and carbon dioxide. The hot wort piping in beer brewing operates under high-temperature conditions while simultaneously requiring resistance to the corrosive effects of alkaline cleaning solutions and sanitizers; conversely, the inlet and outlet piping for fermentation tanks and storage vessels operate under ambient or low-temperature conditions, necessitating valves with superior sealing capabilities to prevent oxygen ingress, which could lead to oxidative spoilage. Two-piece stainless steel ball valves demonstrate outstanding performance in all these demanding applications.
3.4 Water Treatment and Environmental Engineering
The water treatment industry encompasses a diverse range of process types, including municipal water supply, industrial wastewater treatment, seawater desalination, and pure water preparation; two-piece stainless steel ball valves find extensive application across these fields. In municipal water supply systems, ball valves are utilized for flow regulation and zonal control within main trunk lines; their reliable sealing performance effectively prevents leakage within the pipe network and the infiltration of external contaminants. In secondary water supply facilities, ball valves serve as standard components for reservoir inlet and outlet piping, booster equipment bypass lines, and similar critical junctions.
The corrosive nature and complex composition of the media involved in industrial wastewater treatment systems impose stringent demands on valve performance. The treatment of acid- and alkali-laden wastewater necessitates the installation of reliable shut-off valves at critical points within the piping network to facilitate flexible switching between process flows. Industrial wastewater containing heavy metal ions—such as that generated by electroplating or circuit board manufacturing—requires valves that possess exceptional corrosion resistance. Two-piece ball valves fabricated from 316 or 316L stainless steel are capable of maintaining long-term, stable operation in these applications, thereby mitigating environmental pollution and safety hazards resulting from valve corrosion and leakage.
Seawater desalination represents a vital strategy for addressing water scarcity; its core processes encompass raw water intake, pretreatment, reverse osmosis desalination, product water conditioning, and brine discharge. The high salinity of seawater poses a rigorous challenge to valve materials; however, 316 stainless steel ball valves—distinguished by their molybdenum content—exhibit superior resistance to seawater corrosion. Consequently, they are widely deployed throughout desalination plants in various critical areas, including raw water intake lines, pretreatment piping, high-pressure lines for Seawater Reverse Osmosis (SWRO) systems, treated water transmission lines, and chemical dosing lines.
The selection of valves for pure water and high-purity water preparation systems demands even greater precision. In ultra-pure water generation systems utilized by the electronics industry, valves must withstand the corrosive effects of the acid and alkali solutions used to regenerate ion-exchange resins, while simultaneously meeting stringent requirements regarding minimal metal ion leaching to prevent contamination of downstream manufacturing processes. When subjected to specialized surface treatments—such as electropolishing—two-piece stainless steel ball valves are exceptionally well-equipped to satisfy the exacting demands of these high-purity applications.
3.5 HVAC and Building Automation Control
In the HVAC systems of modern buildings, two-piece stainless steel ball valves play a pivotal role. Applications such as pipeline balancing within air conditioning chilled and hot water circulation networks, zone control, and the switching of terminal equipment all rely on ball valves to achieve precise fluid control. In centralized energy stations—including boiler rooms, heat exchange stations, and chiller plants—ball valves are utilized to switch between various operating modes, isolate pipeline sections for maintenance, and regulate system pressure.
Building Automation Systems (BAS) have imposed new requirements regarding the control methods for valves. Traditional manually operated ball valves are gradually being supplanted by automatically controlled ball valves driven by electric or pneumatic actuators. Two-piece stainless steel ball valves can be easily integrated with a variety of actuators to form electric or pneumatic ball valves, thereby enabling remote automatic control and seamless integration with building automation systems. These intelligent ball valve products are capable of automatically regulating the flow and on/off status of the medium based on parameters such as indoor temperature, pressure, and flow rate, thereby optimizing system energy efficiency and reducing operating costs.
In fire water supply systems, ball valves serve as critical control components for both sprinkler and fire hydrant systems. Fire protection systems demand extremely high levels of valve reliability; valves must actuate dependably in the event of a fire to ensure the timely supply of fire-fighting water. Due to their inherent characteristics—including high material strength, corrosion resistance, and a long service life—stainless steel ball valves have become the mainstream choice for valves within fire protection systems. Installed at critical points such as wet alarm valve assemblies, water flow indicators, and end-of-line test assemblies, these ball valves fulfill vital functions related to system monitoring and fault isolation.
3.6 Shipbuilding and Offshore Engineering
The fields of shipbuilding and offshore engineering constitute a major market for the application of stainless steel ball valves. Ball valves are extensively utilized as control components within ships' propulsion systems, cargo handling systems, ballast water systems, HVAC systems, and various piping networks. During maritime operations, these valves must withstand the rigors of harsh environmental factors, including salt spray corrosion, ship vibration, and the impact of ocean waves.
The cargo handling systems of Liquefied Natural Gas (LNG) carriers and Liquefied Petroleum Gas (LPG) carriers impose specific requirements on valves. The cryogenic liquefied gases transported by these vessels present a rigorous challenge to the valves' low-temperature toughness and sealing integrity. In the design of two-piece stainless steel ball valves for these applications, engineers must account for the potential for material embrittlement under cryogenic conditions; this entails selecting appropriate low-temperature-grade stainless steels and validating their suitability through rigorous low-temperature impact testing. Furthermore, certain high-end products feature vacuum-insulated valve body designs to minimize thermal loss.
Offshore platforms and offshore wind power facilities also require the extensive use of stainless steel ball valves. These installations are continuously exposed to the marine atmosphere, enduring the erosive effects of natural elements such as high-density salt spray, high humidity, and intense ultraviolet radiation. Ball valves fabricated from 316 stainless steel offer exceptional resistance to seawater corrosion, thereby ensuring a prolonged service life within such environments. Concurrently, offshore engineering projects demand extremely high levels of valve reliability, as any valve failure could result in severe safety incidents or environmental contamination; consequently, valve products intended for these applications must undergo rigorous quality inspection and certification processes.
3.7 Power and Energy Industry
The power industry constitutes a vital component of the overall energy system; consequently, the fluid control systems within various types of power generation facilities—including thermal power plants, nuclear power stations, and gas-fired combined-cycle plants—require the extensive use of valves. In thermal power plants, two-piece ball valves are utilized across the boiler feedwater, condensate, circulating cooling water, fuel transport, and various auxiliary systems to perform functions such as pipeline shut-off, flow regulation, and operational mode switching. Given that the operating pressures and temperatures within these systems are often elevated, stringent demands are placed upon the structural strength and sealing performance of the valves employed therein.
Nuclear power stations impose the most rigorous requirements regarding valve safety and reliability, classifying them as "nuclear safety-class" equipment. The design, manufacturing, inspection, and qualification of nuclear-grade ball valves must strictly adhere to rigorous nuclear safety regulations and standards—such as the RCC-M (French Design and Construction Rules for Mechanical Components of Nuclear Islands) or the ASME BPVC (American Society of Mechanical Engineers Boiler and Pressure Vessel Code). Nuclear-grade stainless steel ball valves play a pivotal role within critical nuclear safety systems, including the chemical and volume control systems, boron recovery systems, residual heat removal systems, and auxiliary feedwater systems found in nuclear power stations. Although the certification threshold for nuclear-grade valves is exceptionally high, their indispensable role in ensuring the safe operation of nuclear power plants establishes them as essential and critical equipment.
In concentrated solar power (CSP) plants, systems utilizing molten salt as a thermal energy storage medium are required to operate under high-temperature conditions (ranging approximately from 290°C to 565°C). Molten salt ball valves must incorporate specialized high-temperature materials and structural designs to effectively withstand the challenges posed by these extreme operating environments. While the specific requirements for valves within high-temperature molten salt systems differ from those of conventional two-piece ball valves, the fundamental design principles associated with stainless steel construction remain applicable.
3.8 Mining and Metallurgy Industries
The mining industry encompasses various stages, including ore extraction, beneficiation, and smelting. The media flowing through pipeline systems in this sector include ore slurry, tailings, acidic or alkaline beneficiation reagents, circulating water, and compressed air. These media are often abrasive or corrosive, placing stringent demands on the materials and structural design of the valves used. Two-piece stainless steel ball valves are particularly well-suited for conveying media containing solid particles—such as ore slurries and tailings—due to the alignment of their ball-actuation movement with the direction of media flow and their inherently low flow resistance.
Within the grinding circuits of beneficiation plants, valves requiring frequent opening and closing operations are essential in areas such as the feed lines for high-pressure grinding rolls or ball mills, slurry discharge lines, and circulating overflow lines. The rapid opening and closing capabilities of two-piece ball valves effectively meet the demands of such high-frequency operations, while their straight-through flow channel design minimizes the accumulation and clogging of solid particles within the valve body. In certain mining applications, valve designs featuring hardened ball surfaces are also selected to further enhance the valve's resistance to abrasion.
In the metallurgical industry, processes such as steel rolling, continuous casting, and heat treatment require the extensive use of valves to control the flow and distribution of media such as cooling water, circulating water, lubricating oil, and compressed air. During high-temperature rolling operations, the rapid response of cooling water valves is critical for controlling steel temperatures and ensuring product quality. The application of 316 stainless steel ball valves in cooling water systems effectively resists corrosion caused by trace chloride ions present in the water, thereby extending the service life of the valves.
IV. Selection Guidelines and Usage Recommendations
4.1 Selection of Nominal Pressure and Temperature
When selecting a valve, the first step is to determine the appropriate Nominal Pressure (PN) rating and applicable temperature range based on the pipeline system's design pressure and operating temperature. Common nominal pressure ratings include PN16, PN25, PN40, PN63, PN100, etc.; the actual operating pressure must not exceed the valve's rated pressure. Regarding temperature, ball valves equipped with standard PTFE seals typically have an applicable temperature range of -20°C to +180°C. Ball valves utilizing metal seals or specialized high-temperature materials can be suitable for higher-temperature operating conditions; however, the specific applicable temperature range should be verified with the manufacturer.
4.2 Selection and Matching of Materials and Sealing Components
Select appropriate valve body materials and sealing components based on the chemical properties and temperature conditions of the conveyed medium. For standard media such as water, steam, or air, a 304 stainless steel valve body paired with PTFE seals is typically sufficient to meet requirements. For media containing chloride ions—such as seawater or brine—a 316 or 316L stainless steel valve body should be selected. For highly corrosive media—such as strong acids or strong alkalis—it may be necessary to select higher-grade stainless steel alloys (e.g., 904L) or specialized alloys (e.g., Hastelloy). The selection of sealing materials must also take into account the chemical compatibility with the medium and the operating temperature.
4.3 Connection Methods and Installation Space
Determine the valve's connection method (flanged or threaded) based on the design of the pipeline system, and verify that the available installation space meets the valve's minimum clearance requirements for maintenance. When installing flanged ball valves, it is essential to ensure the parallelism of the flange faces and the uniformity of the bolt pre-tightening force. For threaded ball valves, an appropriate sealing method (such as PTFE tape or thread sealant) must be used to ensure a leak-proof connection.
4.4 Operation Methods and Automation Requirements
Select the appropriate operation method based on process operational requirements and the required level of automation. Manually operated ball valves, equipped with a handle or a worm gear reducer, are suitable for applications with low operating frequency. For applications requiring remote control or frequent operation, automated ball valves driven by electric or pneumatic actuators should be selected. Electric ball valves require the selection of appropriate control signals (on/off or modulating) and protection ratings (IP54 for indoor use, IP65 or higher for outdoor use); pneumatic ball valves require the selection of appropriate air supply pressures and solenoid valve control methods.
V. Conclusion
Thanks to their exceptional corrosion resistance, reliable sealing characteristics, ease of maintenance and operation, and broad adaptability across applications, industrial-grade stainless steel two-piece ball valves have become indispensable components in modern industrial fluid control systems. From petrochemicals to pharmaceuticals and food processing, from water treatment to power generation, and from shipbuilding and marine engineering to mining and metallurgy, stainless steel two-piece ball valves play a vital role in fluid control across a wide spectrum of industrial sectors. As advancements in materials science and manufacturing processes continue, the performance metrics and application scope of two-piece ball valves are poised to expand further, providing even more reliable assurance for safe production and efficient operations across various industries. When selecting a valve, users should carefully consider specific operating conditions, fluid characteristics, and operational requirements to choose the product specifications and configurations best suited to their needs, thereby ensuring that the valve maintains superior performance and reliability throughout its long-term operation.
