Application Scenarios for Stainless Steel Type A Quick Couplings
Product Overview

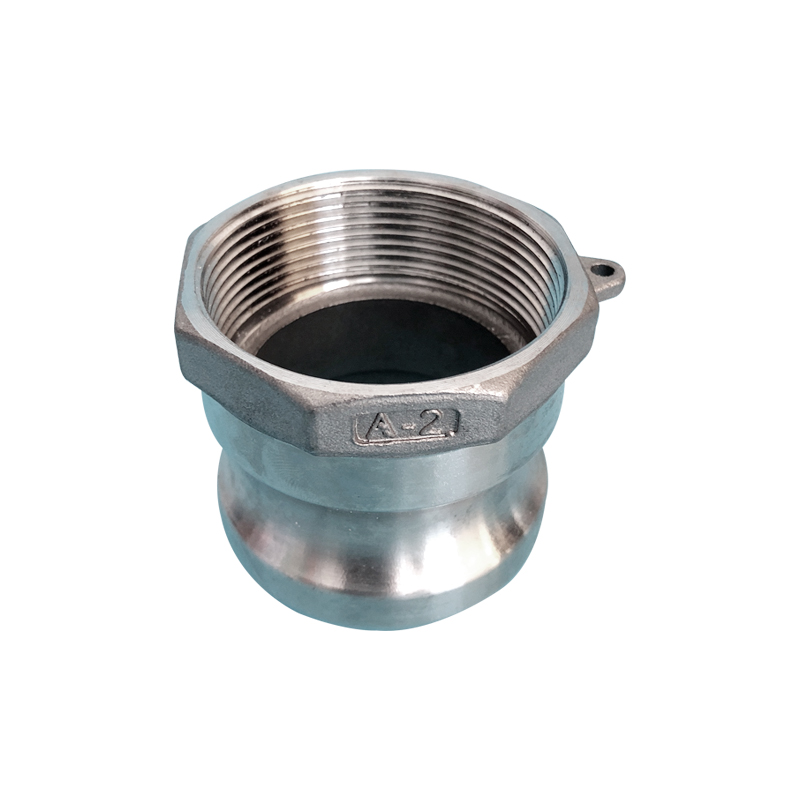

The Stainless Steel Type A Quick Coupling is a male-type model within the quick coupling series, featuring a design that combines a curved-arm structure with an internal thread connection. One end consists of a curved arm designed to lock into the groove of a female coupling, while the other end features an internal thread for connection. It is compatible with various female couplings—such as Types B, C, D, and DC—enabling rapid connection and disconnection capabilities. Typically manufactured from 304 or 316 stainless steel, this product boasts excellent corrosion resistance and mechanical strength, making it suitable for use in a wide range of complex operating environments.
Industrial Fluid Transfer Sector
Petrochemical Industry
Stainless Steel Type A Quick Couplings are widely utilized in the petrochemical sector, primarily within piping connection systems at facilities such as oil refineries and chemical plants. Given that chemical media are often highly corrosive, the stainless steel material effectively resists erosion by acids, alkalis, salts, and other chemical substances, thereby ensuring the long-term stability and reliable operation of the piping system. In processes involving oil transportation, natural gas processing, and the storage and transport of chemical raw materials, these quick couplings facilitate the rapid docking and dismantling of equipment, significantly boosting operational efficiency.
Water Treatment Engineering
In water treatment fields—including municipal waterworks, sewage treatment plants, and industrial pure water production facilities—Type A Quick Couplings are frequently employed for connecting and maintaining piping systems. The stainless steel material minimizes contamination of the water supply, thereby meeting stringent hygiene and sanitary standards. The use of quick couplings streamlines equipment inspection, repair, and piping modifications, effectively reducing downtime and lowering maintenance costs.
Electric Power and Energy Sector
Stainless steel quick couplings play a vital role in the cooling systems, hydraulic control systems, and gas transmission pipelines of power generation facilities, such as conventional power plants and nuclear power stations. Their inherent resistance to high pressure and corrosion satisfies the electric power industry's rigorous requirements regarding equipment safety and reliability. In the unique operating environments of nuclear power plants, quick couplings manufactured from 316 stainless steel are particularly widely adopted due to their exceptional resistance to intergranular corrosion.
Hydraulic and Pneumatic Systems
Construction Machinery Sector
In the hydraulic piping systems of various types of construction machinery—including excavators, cranes, and road rollers—Type A Quick Couplings enable the rapid assembly and disassembly of hydraulic lines, facilitating efficient equipment setup and maintenance. This application is particularly prominent in the contexts of equipment maintenance, component replacement, and the operation of mobile hydraulic machinery. When hydraulic equipment requires relocation, the use of quick couplers allows the machinery to be broken down into smaller, manageable units, thereby facilitating transport; upon reaching the destination, the equipment can be reassembled for use, effectively resolving the logistical challenges associated with transporting large-scale machinery.
Industrial Automation Equipment
In the pneumatic and hydraulic systems of equipment such as machine tools, automated production lines, and robotics, Type A quick couplers are utilized to connect fluid transmission lines—including air hoses and oil lines. The incorporation of quick couplers streamlines equipment commissioning and maintenance procedures, thereby significantly reducing downtime. Their characteristics of rapid connection and flexible disconnection make them particularly well-suited for automated production environments that necessitate the frequent swapping of tools or components.
Aerospace Sector
Aerospace equipment imposes exceptionally stringent requirements on the reliability of fluid line connectors. Leveraging their superior performance and dependable sealing capabilities, stainless steel Type A quick couplers are deployed within the hydraulic and pneumatic transmission systems, as well as the fuel lines, of aerospace vehicles such as aircraft and rockets. In these highly demanding application scenarios, quick couplers must undergo rigorous testing and certification processes to ensure they maintain optimal operational integrity even under extreme environmental conditions.
Food & Beverage and Pharmaceutical Industries
Food Processing Sector
In food processing industries—such as beer brewing, dairy production, beverage manufacturing, and edible oil processing—Type A stainless steel quick couplings are widely utilized for connecting fluid transport pipelines. Because food-grade stainless steel is safe, non-toxic, and poses no risk of secondary contamination to food products, it has become the material of choice for food processing enterprises. The use of these quick couplings not only boosts production efficiency but also facilitates the cleaning and sterilization of equipment, thereby meeting the stringent requirements for food hygiene and safety.
Pharmaceutical Industry
Pharmaceutical companies impose extremely rigorous standards regarding the cleanliness and sterility of their production equipment. Type A stainless steel quick couplings play a critical role in key pipeline systems within pharmaceutical manufacturing, including purified water systems, water-for-injection (WFI) systems, and solution preparation systems. The material complies with the pharmaceutical industry's strict sanitary standards and is capable of withstanding repeated cycles of high-temperature sterilization and chemical cleaning, thereby ensuring the safety and stability of the drug manufacturing process.
Marine and Offshore Engineering
Shipboard Equipment Connections
In shipboard systems—such as fuel, lubrication oil, cooling water, and fire suppression pipelines—Type A stainless steel quick couplings are employed to facilitate the rapid connection and disconnection of marine equipment. As vessels navigate the open seas, pipeline connections across various systems must withstand the corrosive effects of seawater and salt spray; stainless steel, with its exceptional resistance to seawater corrosion, ensures the long-term reliability of these pipeline connections.
Offshore Platform Applications
Stainless steel quick couplings are also extensively utilized in the hydraulic systems, pneumatic systems, and fluid transport pipelines of offshore engineering facilities, such as offshore oil drilling platforms and offshore wind power platforms. The high-humidity and high-salinity characteristics of the marine environment place exacting demands on metal materials; AISI 316 stainless steel—distinguished by its molybdenum content—offers superior resistance to pitting and crevice corrosion, delivering exceptional performance in harsh marine environments.
Specialized Application Scenarios
Gas Filling and Transport
Type A stainless steel quick couplings are suitable for connecting pipelines involved in the filling and transport of various gases, including inert gases, nitrogen, LPG (Liquefied Petroleum Gas), and carbon dioxide. In sectors such as gas distribution stations, laboratory gas supply systems, and industrial gas storage and transport operations, these quick couplings enable rapid interfacing between gas cylinders, storage tanks, and end-use equipment, thereby enhancing the efficiency of gas replacement and equipment maintenance. Inspection and Testing Equipment
When inspection tasks—such as pressure testing, vacuum testing, or leak testing—are required for piping systems, Type A quick couplers are frequently employed as the connecting components between the test lines and the systems under test. Their rapid assembly and disassembly capabilities simplify test preparation, while also allowing for the swift restoration of the system to its original configuration once testing is complete. This application is widely utilized in scenarios such as pipeline engineering acceptance inspections and equipment factory acceptance testing.
Mobile Equipment and Tools
For pneumatic tools, hydraulic tools, and inspection instruments that require frequent relocation or portability, Type A quick couplers enable the rapid connection and disconnection of the equipment from air or hydraulic power sources. For instance, in settings such as fieldwork sites or emergency repair operations, the use of quick couplers facilitates the rapid setup of temporary fluid transmission systems, thereby significantly enhancing operational efficiency.
Summary of Core Advantages
The primary advantages of Stainless Steel Type A Quick Couplings include:
1. Speed and Convenience: Enables rapid connection and disconnection of pipelines without the need for any tools, significantly saving both time and labor costs.
2. Reliable Sealing: Utilizes high-quality sealing materials to ensure leak-proof performance after connection, preventing fluid leakage and external contamination.
3. High Interchangeability: For a given size, the male and female components are fully interchangeable and compatible with one another, offering excellent versatility.
4. Strong Corrosion Resistance: Constructed from stainless steel, the couplings resist corrosion from a wide range of corrosive media, thereby extending their service life.
5. Broad Applicability: Suitable for the conveyance of water, oil, gas, and various corrosive liquids, meeting the requirements of diverse operating conditions.
Specifications & Dimensions: Determine the required coupling size based on the pipeline's inner diameter or thread specifications; common sizes range from 1/2" to 6" (DN15–DN150).
Material Selection: For general environments, 304 stainless steel is recommended; for marine environments or applications involving highly corrosive media, 316 stainless steel is advised.
Working Pressure: Verify the system's operating pressure; standard products are suitable for working pressures up to 6.4 MPa.
Media Temperature: The standard applicable temperature range is -20°C to 230°C; specific requirements should be confirmed based on actual operating conditions.
Sealing Materials: Select the appropriate sealing ring material—such as Fluororubber (Viton) or EPDM—based on the specific characteristics of the conveyed medium.
