Stainless Steel Sanitary Vacuum Pumps
Introduction to Stainless Steel Sanitary Vacuum Pumps
The stainless steel sanitary vacuum pump is a critical piece of equipment specifically designed for the extraction and conveyance of liquids under sanitary conditions. It is widely utilized in industries with extremely stringent hygiene requirements—such as pharmaceuticals, food and beverages, and chemicals. Constructed from high-grade stainless steel, these pumps ensure the hygienic safety of all components that come into contact with food and pharmaceutical products. Capable of operating efficiently and stably within negative pressure environments, they have become indispensable fluid-handling devices in modern industrial production.
Product Classification and Technical Specifications
Based on varying application requirements and structural characteristics, stainless steel sanitary vacuum pumps are primarily categorized into the following types: The FB1 (FM) series food-grade sanitary pump is suitable for conveying liquids free of solid particles; operating within a temperature range of -20°C to 70°C, it finds extensive application in the chemical, petroleum, metallurgy, food, brewing, synthetic fiber, and pharmaceutical sectors. The FNB series horizontal sanitary pump is capable of conveying liquids containing small amounts of fine solid particles; offering a broader temperature range of -20°C to 150°C, it is widely used in the starch, chemical, petroleum, food, and brewing industries. The FRN series horizontal sanitary pump is also suitable for conveying liquids containing small amounts of solid particles, though its operating temperature range is limited to -20°C to 25°C; it is primarily employed in the sugar refining, beverage, starch, pharmaceutical, and metallurgy sectors. Finally, the JM series horizontal centrifugal pump is specifically designed for conveying a diverse range of fluids—including various alcohols, beverages, dairy products, pharmaceuticals, gasoline, solvents, and syrups—within a temperature range of -35°C to 80°C.
In terms of technical parameters, the specifications for stainless steel sanitary vacuum pumps typically range from 3 T/h to 180 T/h, with motor power ratings ranging from 0.75 kW to 75 kW. Regarding materials, the pumps are primarily constructed using SUS304 and SUS316L stainless steel; components that come into direct contact with the conveyed medium—such as the pump body, pump cover, and impeller—are all manufactured from these high-quality stainless steel grades. The products comply with international standards such as DIN and SMS, and the impellers are available in two distinct types: open impellers and semi-open impellers. Regarding surface treatment, the wetted parts undergo polishing, while the remaining components can be finished with either a matte or sandblasted surface; the maximum inlet pressure reaches 0.5 MPa. The operating temperature range varies depending on the sealing material, generally falling between -10°C and 140°C.
Structural Features and Operating Principles

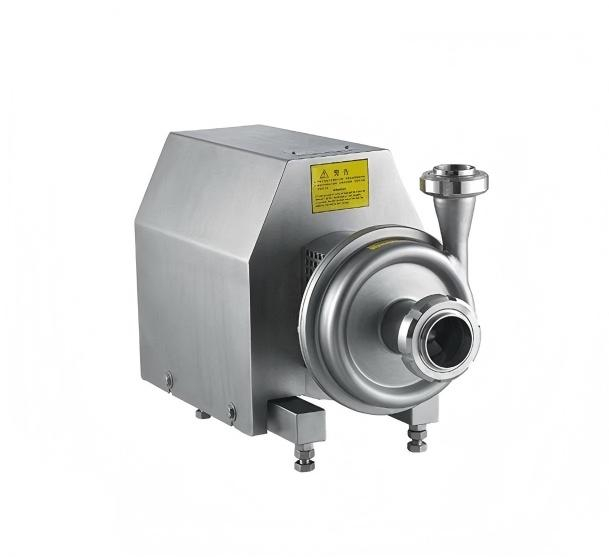

The stainless steel sanitary negative-pressure pump features a horizontal structural design; constructed entirely from stainless steel, it boasts a compact and aesthetically pleasing profile, is easy to operate, and is both small in size and lightweight. The pump body, impeller, and pump cover are precision-cast using 304 and 316L stainless steel and are equipped with high-quality mechanical seals designed to withstand negative pressure, offering excellent resistance to both corrosion and abrasion. The shaft seal assembly utilizes a novel mechanical seal design incorporating imported titanium alloy seal rings—materials known for their exceptional wear resistance and high-temperature tolerance—thereby effectively extending the service life of the sealing mechanism. The mechanical seals themselves are custom-manufactured using high-grade stainless steel and silicon carbide, significantly enhancing their wear resistance and self-lubricating properties. Installation and maintenance are highly convenient; the pump is available in two configurations: a fixed-mount version, which utilizes flanged connections for its inlet and outlet ports, and a mobile version, which employs clamp-style (tri-clamp) connections.
Regarding material selection, all components that come into contact with the process fluid—including the pump body, pump cover, and impeller—are manufactured exclusively from AISI 316 or AISI 304 stainless steel, thereby ensuring the sanitary safety and purity of the product. The pump is primarily driven by ABB-brand three-phase AC motors; these motors are designed and manufactured in strict compliance with IEC 60034 and IEC 60072 standards established by the International Electrotechnical Commission (IEC) and meet the requirements for the European Community (CE) marking. The standard motor design features an IP55 protection rating, Class F insulation, and a nominal rotational speed of 2900 revolutions per minute (RPM). The shaft seal area incorporates an open-structure design; this allows for the immediate detection of even minor leaks at the seal, preventing any overflow into the motor housing—at least within a short timeframe—and thereby safeguarding the operational longevity of the motor.
The stainless steel sanitary negative-pressure pump is classified as a turbine-guided centrifugal negative-pressure pump. It is capable of operating under a negative pressure of up to 0.09 MPa, utilizing centrifugal force to draw liquid from within a vacuum vessel or tank. Upon pump startup, liquid is drawn in through the pump's inlet; after being accelerated by the rotation of the impeller, the liquid is expelled at high velocity through the outlet, thereby achieving the desired fluid transfer. This specific operating principle makes the pump particularly well-suited for handling fluids that are unsuitable for positive-pressure conveyance, as it enables the creation of a negative-pressure environment within a closed system, allowing for liquid suction without the need for external vacuum-generating equipment.
Application Fields and Industry Advantages
The stainless steel sanitary negative-pressure pump finds application across an extremely wide range of fields. In the pharmaceutical industry, this pump is utilized to convey various pharmaceutical agents, solvents, and similar substances, thereby ensuring the hygienic safety of the drug manufacturing process. In the food industry, it is well-suited for production processes involving dairy products, beverages, brewing, and more, effectively preserving the hygienic quality of food products. The chemical industry employs this pump to handle corrosive and toxic liquids; its corrosion-resistant properties meet the specialized requirements inherent to chemical manufacturing. The beverage industry utilizes it in production workflows for products such as fruit juices and carbonated drinks, ensuring the consistency of product taste and quality. Furthermore, this pump finds widespread application across numerous other sectors, including starch production, sugar refining, cosmetics, metallurgy, and synthetic fibers.
In the medical field, sanitary-grade stainless steel negative-pressure pumps are used to aspirate waste fluids—such as blood and pus—during surgical procedures, as well as to provide negative-pressure power for various medical devices. Within the environmental protection sector, these pumps are deployed in areas such as wastewater and exhaust gas treatment, facilitating the suction and conveyance of effluent and gaseous waste. In laboratory settings, the pump is frequently used to generate a negative-pressure environment for equipment such as vacuum drying ovens and vacuum pumps. In the water supply industry, negative-pressure pumps can serve as a substitute for traditional centrifugal water pumps, facilitating the conveyance of various media including clean water, rainwater, and sewage.
The key advantages and features of stainless steel sanitary vacuum pumps are primarily reflected in the following aspects: First is high efficiency and energy conservation; utilizing advanced design and manufacturing technologies, these pumps ensure highly efficient operation while effectively reducing energy consumption. Second is low-noise operation; optimized motor and pump body designs effectively minimize operational noise, thereby improving the working environment. Third is ease of maintenance; with a rational structure that facilitates convenient installation and servicing, maintenance time and costs are significantly reduced. Fourth is sanitary safety; all components in contact with the process fluid are constructed from high-quality stainless steel with polished surfaces, making them easy to clean and ensuring full compliance with sanitary standards such as GMP and FDA regulations. Fifth is stable and reliable performance; employing rapid-sealing technologies—such as double mechanical seals—these pumps guarantee leak-free operation over extended periods and can accommodate a certain range of temperature and pressure fluctuations. Finally, they offer strong adaptability; capable of handling fluids ranging from low to high viscosity—including liquids containing small amounts of solid particles—they are widely applicable to diverse process requirements.
Selection Considerations and Maintenance Recommendations
When selecting a stainless steel sanitary vacuum pump, it is essential to comprehensively evaluate several key factors. First are the characteristics of the medium; based on the physicochemical properties of the fluid being transported—such as viscosity, corrosiveness, and cleanliness requirements—one must select the appropriate pump body material and sealing mechanism. Second are the flow rate and head requirements; the necessary flow range and maximum head must be determined based on the specific demands of the actual process workflow to ensure the pump's efficiency and stability. Third is system integration; one must consider how the pump integrates into the existing production line, including connection methods, control interfaces, and support for functions such as CIP (Clean-in-Place) and SIP (Sterilization-in-Place). Furthermore, it is advisable to select a reputable manufacturer, taking into account their after-sales service, technical support capabilities, and spare parts availability.
Regarding operation and maintenance, sanitary vacuum pumps require adherence to specific operational protocols. Prior to installation, the pump body should be inspected for any damage, and the pipeline connections must be verified to ensure they are correct and secure, with all sealing components properly seated. Before putting the pump into service, it is recommended to perform a no-load test run to check for abnormal noises or vibrations; the process fluid should be introduced only after confirming that the pump is operating normally. During operation, attention should be paid to pressure gauge and flow meter readings, and the pump's sound should be monitored to detect and address any anomalies in a timely manner. A regular maintenance schedule should be established to periodically inspect the condition of seals, clean both the interior and exterior of the pump, and replace worn components, thereby ensuring the pump's long-term, stable operation. Finally, operating procedures must be strictly adhered to; particular attention must be paid to safe operation, especially when handling corrosive or toxic media.
